In the typical setup, a user should wire from the output of the signal source directly to one of the RCA
inputs on the rear of the hybrid. Once the input signal source is connected to the hybrid, connect the
speakers to the hybrid’s main outputs. Pictured above is an iPhone™ and DVD player connected to the
hybrid inputs.To play tracks from the iPhone™ to hybrid via bluetooth, firstly press the “INPUT” button
on the front panel or the “Input” key on the remote to select the bluetooth input mode, then turn on the
bluetooth function on iPhone™ and search hybrid whose bluetooth device is named “ “TPRO+MODEL”
(ie TPRO-H2502URBT) ”, and then pair and connect. The pair code is “0000”--- 4 zeros.
The hybrid has two groups of full range loudspeakers, three surround speakers and two subwoofers
connected to it which will play either the signal from either the iPhone™,DVD,USB Flash Drive,SD
Card,iPod™(Classic and Nano) or MP3 player. The surround speakers only work when ALL surround
speakers are connected. The LINE OUTPUT is connected to the input of a tape recorder. You can also
connect the LINE OUTPUT or PRE OUTPUT directly to the input of another amplifier. The LINE
OUTPUT or PRE OUTPUTwill send the signal from the selected input (AUX, DVD, USB Flash Drive,
SD Card,iPod™(Classic and Nano), MP3 player or Bluetooth).
Hybrid Series

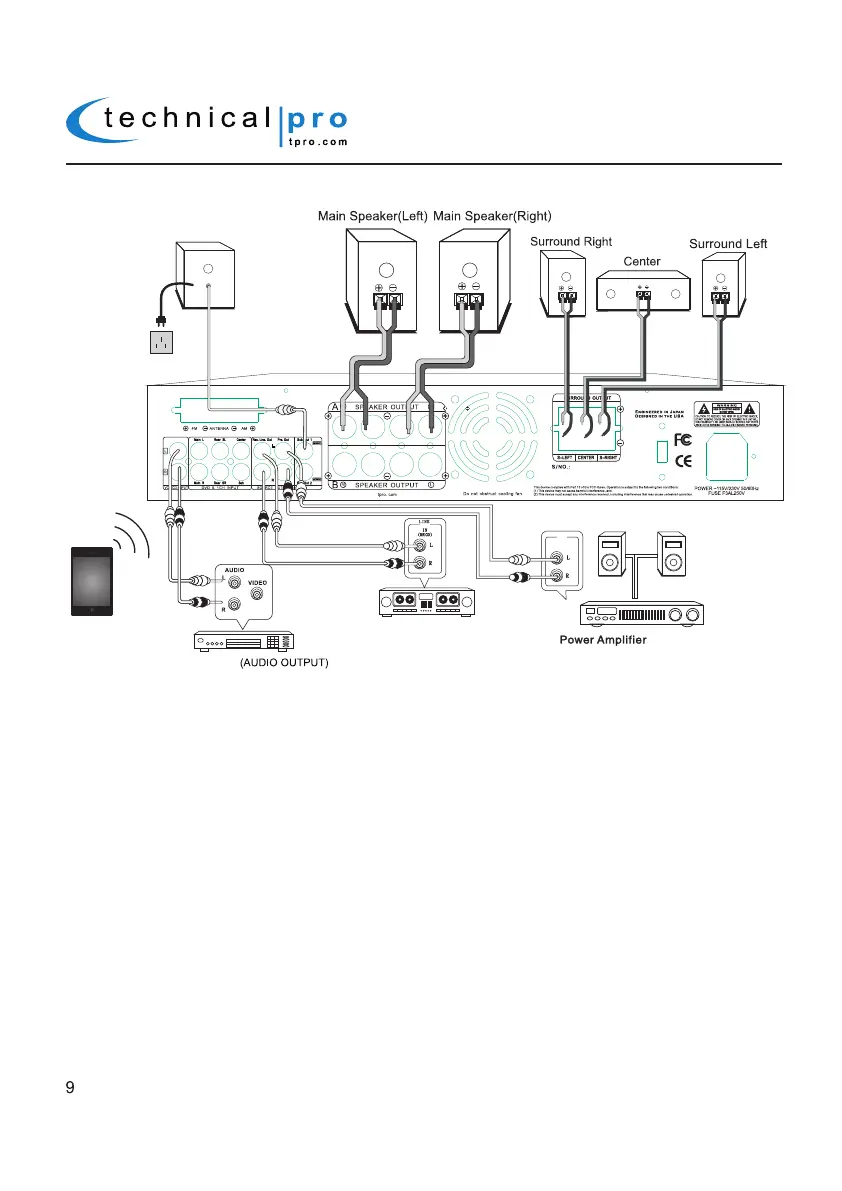

Typical Hybrid Series Input and Output Connections
NOTE: WHEN MAKING THESE CONNECTIONS THE POWER OF THE
HYBRID
AND THE SIGNAL
SOURCE SHOULD ALL BE IN THE OFF POSITION WITH THE VOLUME LEVELS TURNED DOWN.
THE OPERATIONS OF BLUETOOTH FUNCTION IS ONLY FOR THE UNIT WHICH HAS BLUETOOTH
FUNCTION
Amplifier
TAPE RECORDER
CD Player
(AUDIO INPUT)
iPhone™
(Bluetooth enabled)
Wall Socket
POWERED
SUBWOOFER
To Next Page
