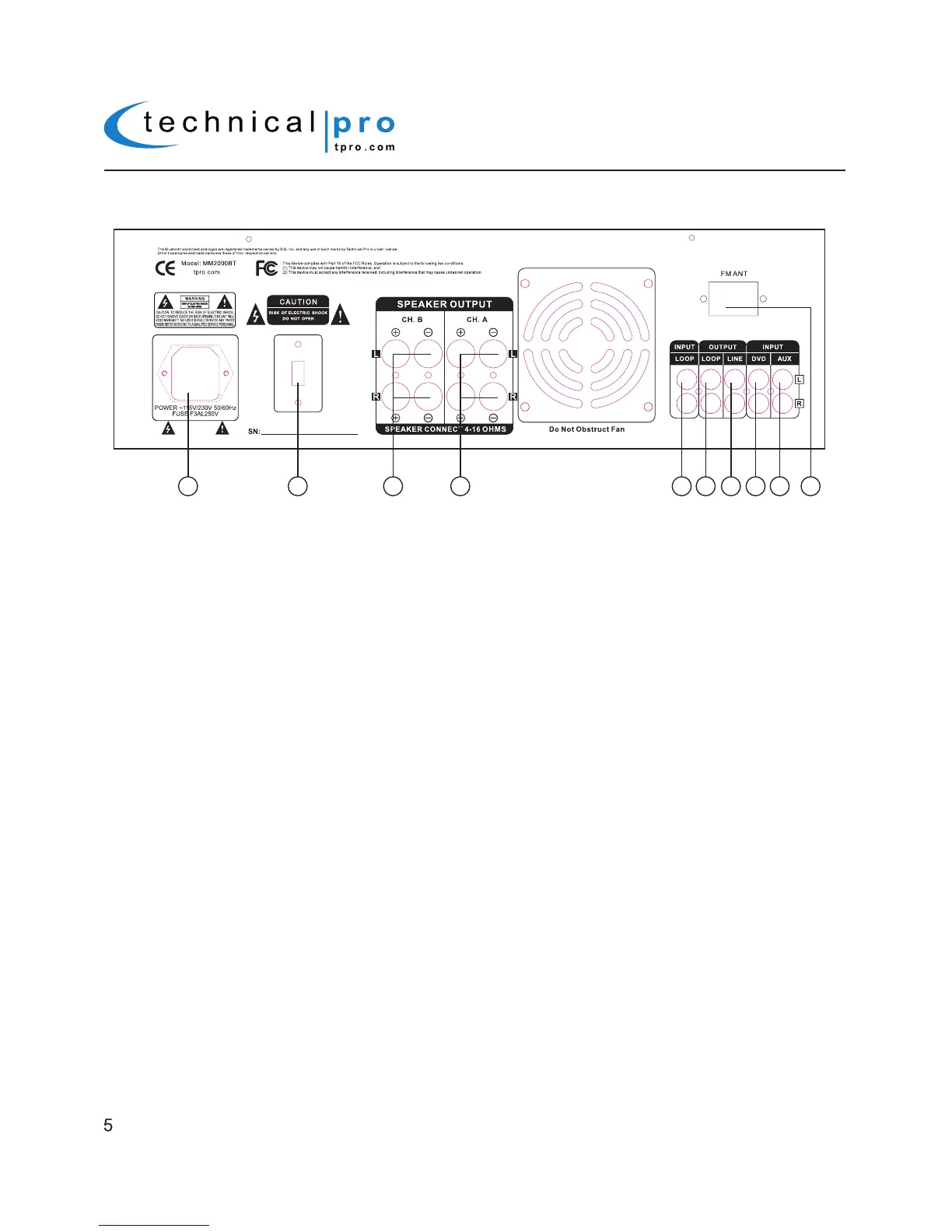

MM2000BT Rear Panel
MM2000BT
1 2 5 6 7 8 9
10
3 4
1.Power Supply: Only use the power cord provided with the unit to power the unit. When connecting and
disconnecting the power cord, be sure the power of the unit is off. Connect the cord to the rear of the unit
and then connect it to the outlet.
2.Voltage selector: Select between 230V AC 50Hz / 115V AC 65Hz. When using with a 115V outlet, the
unit should be set to 115V.
3.Group B Main Speakers: Connect your main speakers to these speaker outputs. The unit should be
powered off and volume levels turned down when making these connections.
THE MM2000BT OPERATE MOST EFFICIENTLY WHEN USED WITH 8 OHM SPEAKERS.
4.Group A Main Speakers: Connect your main speakers to these speaker outputs. The unit should be
powered off and volume levels turned down when making these connections.
THE MM2000BT OPERATE MOST EFFICIENTLY WHEN USED WITH 8 OHM SPEAKERS.
5.Loop Input: Connect the output of a separate equalizer to the loop input. This equalizer should be the
same one which “Loop Output” is connected to. If not, there won’t be any volume output from the speakers.
6.Loop Output: Connect the loop output to a line input on a separate equalizer. If there is no equalizer
needed, plug in the plug provided with the unit to enable this function. If there is no equalizer connected to
this output and the plug isn’t plugged, there won’t be any volume output from the speakers connected.
7.Line Outputs: Connect the line output to either a recording device, another amplifier or a powered
(active) subwoofer.The signal from the line output is a passive output and cannot be connected directly to
a passive speaker.
8.DVD Input: Connect any stereo signal output such as a DVD, CD, TAPE, Mixer etc to this input. To play
a signal connected to this input make sure the MP3 input is selected on the front panel.
9.AUX Input: Connect any stereo signal output such as a DVD, CD, TAPE, Mixer etc to this input. To
play a signal connected to this input make sure the AUX input is selected on the front panel.
10.FM Antenna: Connect your FM antenna here.
To Next Page
