PRE50
Connecting the speaker wire to the PRE50’s balanced outputs
NOTE: WHEN MAKING THESE CONNECTIONS THE POWER OF THE PRE50 AND THE SIGNAL
SOURCE SHOULD ALL BE IN THE OFF POSITION WITH THE VOLUME LEVELS TURNED DOWN.
LINE
Left Right

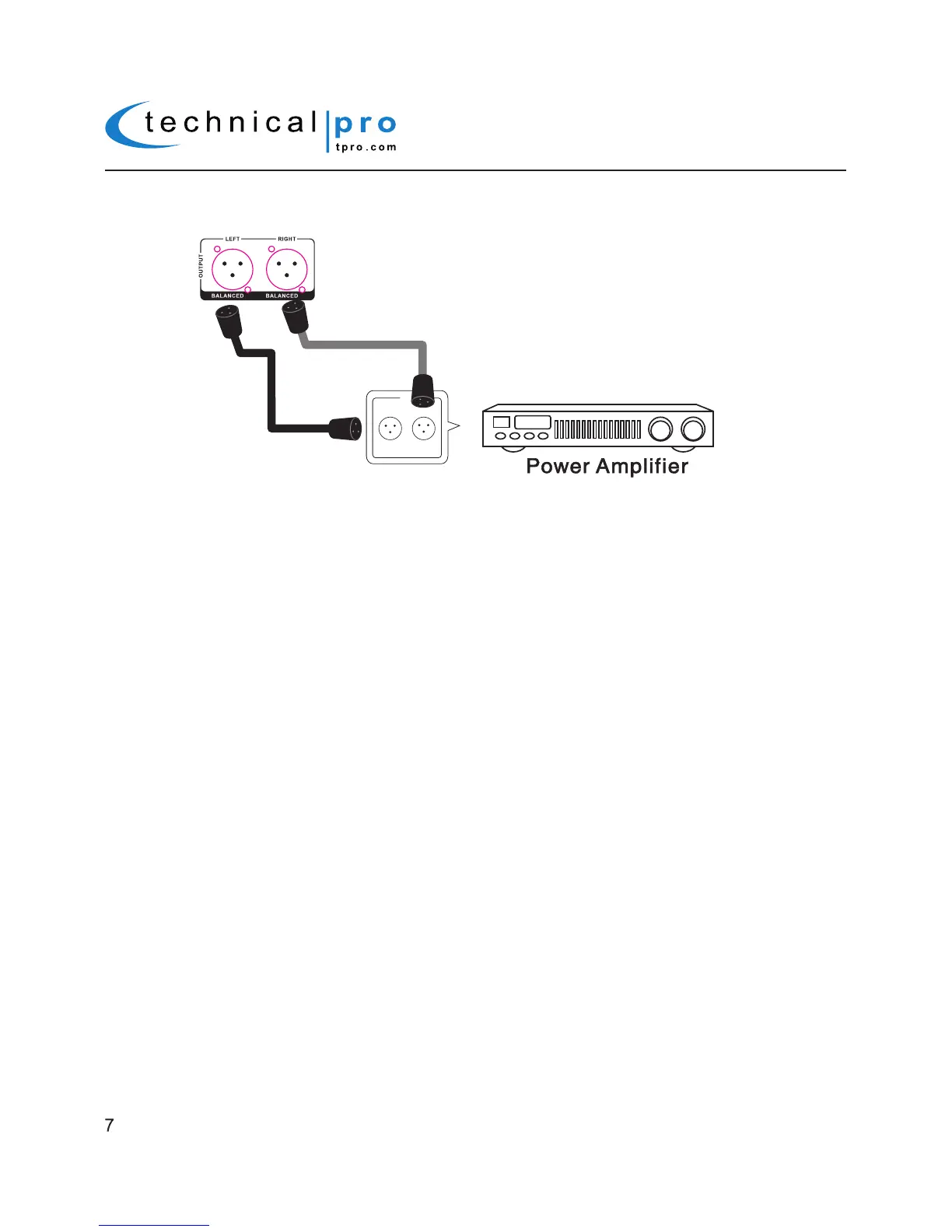

Use particular cables to connect the balanced output on the rear panel of PRE50 to another amplifier’s
balanced singal input. It’s important to make sure that the PRE50’s left output is connected to the
amplifier’s left input and PRE50’s right output is connected to the amplifier’s right input.
