08

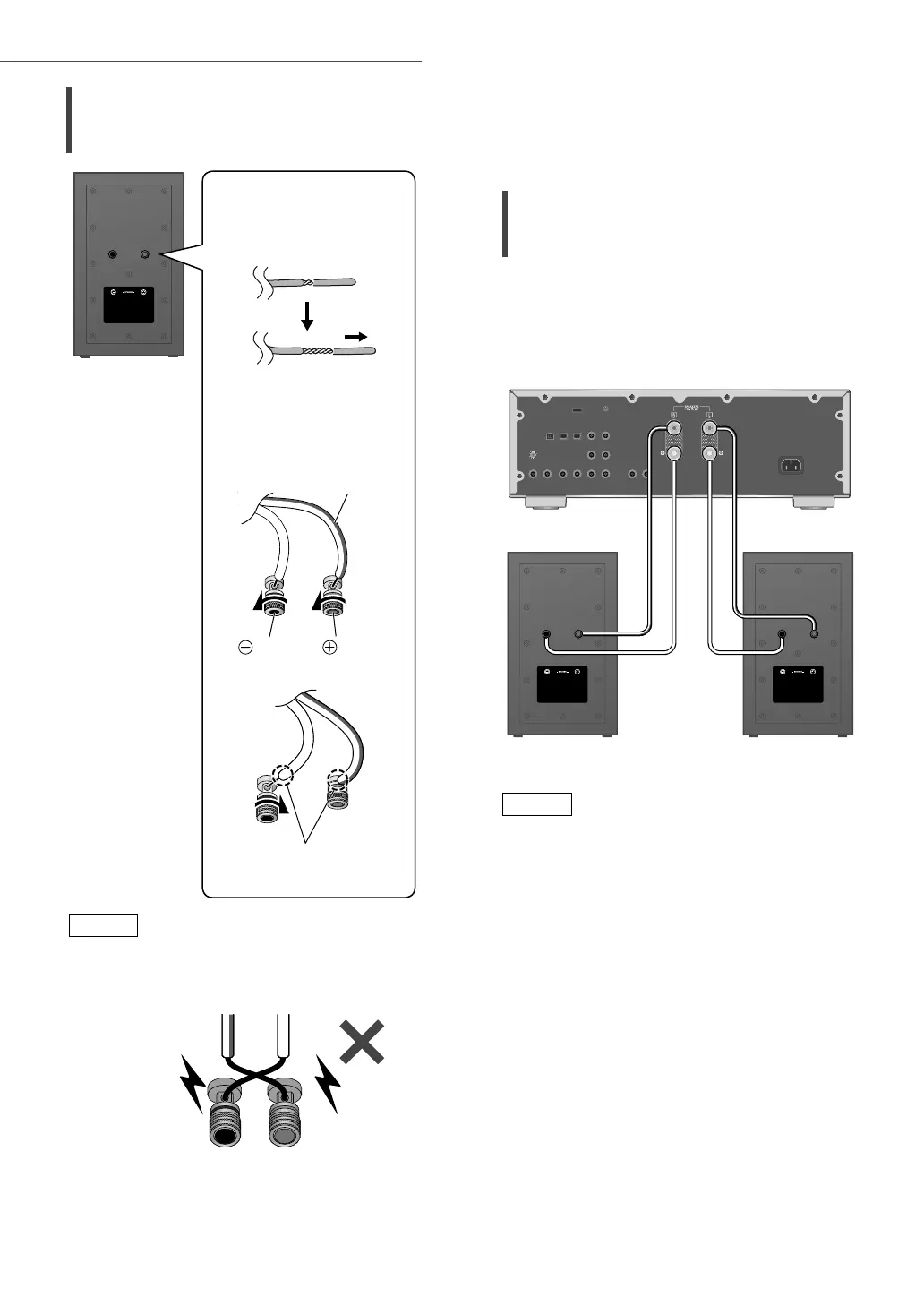

Connections
• Check the colors of the speaker cables
(supplied) to connect the left and right
speakers correctly. Incorrect connection can
damage the speakers.
Connecting with an amplifier
• Before connection, turn off the amplifier and
disconnect its power cord.
• For details, refer to the operating instructions
of the amplifier.
e.g. amplifier (rear)
Speaker (right) Speaker (left)
Note
• Do not move the speaker while the speaker
cables are connected. This may cause a short
circuit.
• When the connections are completed, pull the
speaker cables lightly to check that they are
connected firmly.
• Wire the polarity (+/-) of the terminals correctly.
Not doing so may adversely affect stereo
effects or cause malfunction.
Connecting the speaker cables
1 Twist the insulation
covering the tips of
the speaker cables
to pull them out.
2 Turn the knobs to
loosen them, and
insert the core wires
into the holes.
Black
Red
Cable with a
white line
3 Tighten the knobs.
Do not insert the vinyl
insulation.
Note
• Be careful not to cross (short-circuit) or reverse
the polarity of the speaker wires as doing so
may damage the amplifier.
DO NOT
To Next Page
