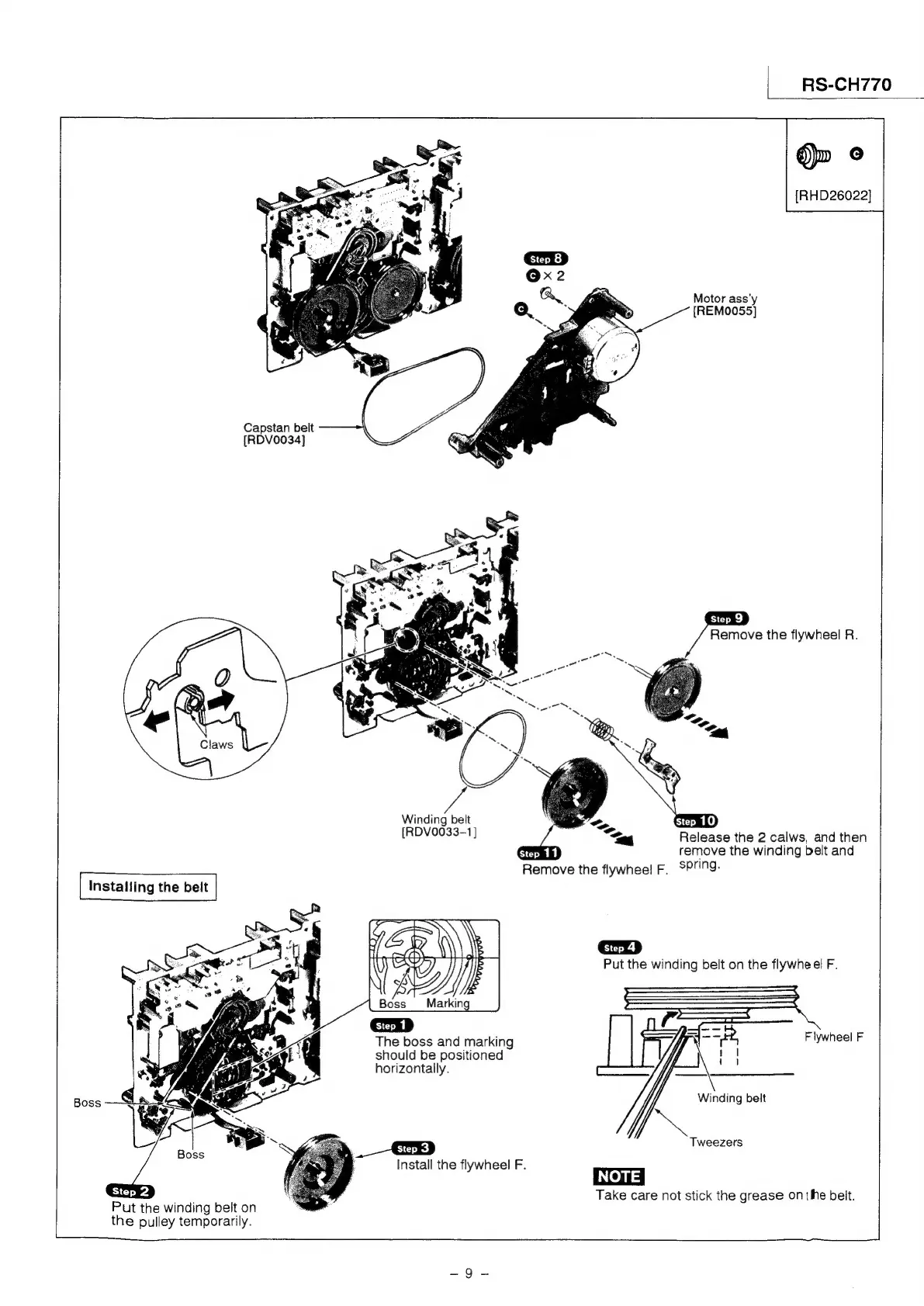

RS-CH770
@)p
©
[RHD26022]
Motor
ass'y
[REM0055]
Capstan
belt
[RDV0034]
Remove
the
flywheel
R.
Winding
belt
[RDV0033-1]
|
Release
the
2
calws,
and
then
step
11
remove
the
winding
belt
and
Remove
the
flywheel
F,
SPN9-
Put
the
winding
belt
on
the
flywhe
el
F.
Veh
The
boss
and
marking
should
be
positioned
horizontally.
F
lywheel
F
Winding
belt
Tweezers
Install
the
flywheel
F.
NOTE
Take
care
not
stick
the
grease
onthe
belt.
Put
the
winding
belt
on
the
pulley
temporarily.
