m
%

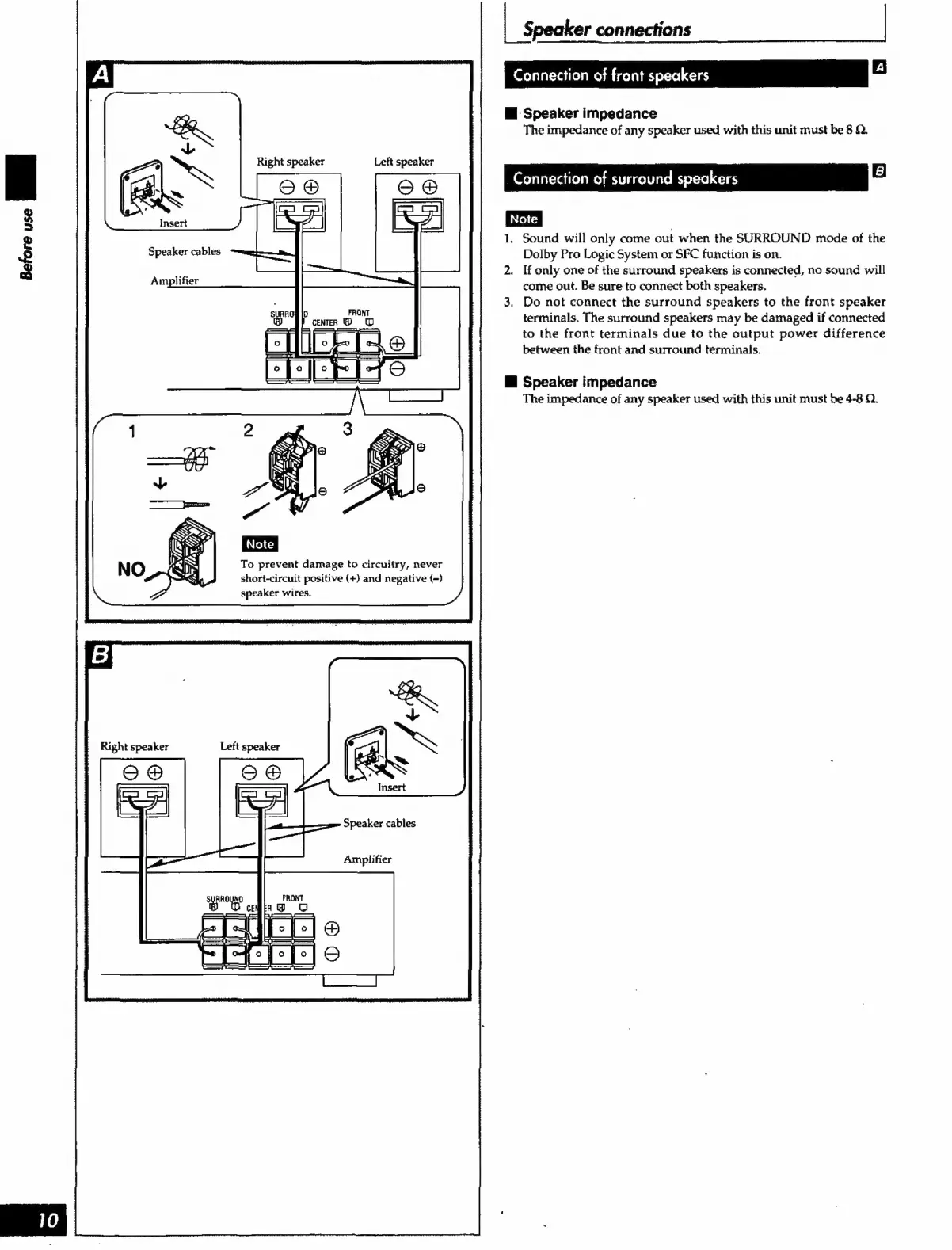

Speakercables
Amplifier
To prevent damage to circuitry, never
short-circuitposilive(+)andnegative(-)
[]
• Speaker Impedance
The£mpedanceofanyspeakerusedwith thisu.mtmustbe8
1. Sound will onlycome out when the SURROUNDmode of the
DolbyProLogicSystemor SFCfunctionis on.
2. If only one of thesurround speakersis connected,no sound will
comeout.Besure to connectbothspeakers. ,
3. Do not connect the surround speakers to the front speaker
terminals.Thesurround speakers maybe damagedif connected
to the front terminals due to the output power difference
betweenthe frontand surround terminals.
• Speaker Impedance
The impedance of any speaker used with this unit must be 4-8D.
