Technics SH-4020 Service Manual

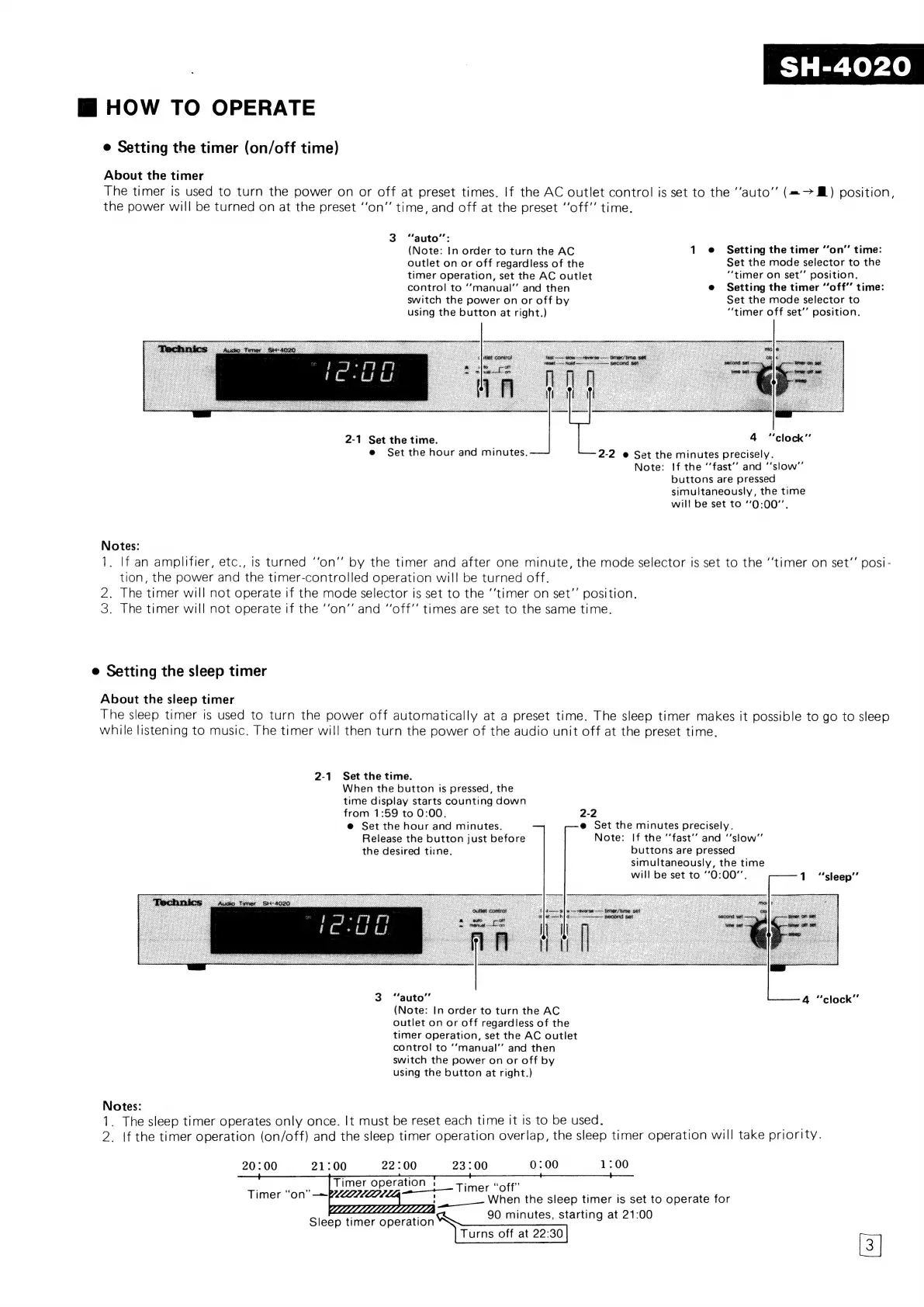

Mi HOW TO OPERATE
e Setting the timer (on/off time)
About the timer
The timer is used to turn the power on or off at preset times. If the AC outlet control is set to the ‘‘auto’’ (=~ HL) position,
the power will be turned on at the preset ‘‘on’’ time, and off at the preset ‘‘off’’ time.
3 “auto”:
(Note: In order to turn the AC 1
outlet on or off regardless of the
timer operation, set the AC outlet
control to ‘‘manual’’ and then
switch the power on or off by
using the button at right.)
e Setting the timer “on” time:
Set the mode selector to the
‘timer on set’ position.
e Setting the timer “off’’ time:
Set the mode selector to
‘timer off set’’ position.
4 “clock’’
2-1 Set the time.
e Set the hour and minutes. 2-2 @ Set the minutes precisely.
Note: If the ‘’fast’’ and ‘‘slow”’
buttons are pressed
simultaneously, the time
will be set to ‘‘0:00’’.
Notes:
1. If an amplifier, etc., is turned ‘‘on"’ by the timer and after one minute, the mode selector is set to the ‘‘timer on set’’ posi-
tion, the power and the timer-controlled operation will be turned off.
2. The timer will not operate if the mode selector is set to the ‘‘timer on set’’ position.
3. The timer will not operate if the ‘‘on’’ and “off’’ times are set to the same time.
@ Setting the sleep timer
About the sleep timer
The sleep timer is used to turn the power off automatically at a preset time. The sleep timer makes it possible to go to sleep
while listening to music. The timer will then turn the power of the audio unit off at the preset time.
2-1 Set the time.
When the button ts pressed, the
time display starts counting down
from 1:59 to 0:00. 2-2
@ Set the hour and minutes. @ Set the minutes precisely.
Release the button just before Note: If the ‘’fast’’ and ‘’slow”
buttons are pressed
simultaneously, the time
will be set to “0:00”. 1 “sleep’’
the desired tine.
3 “auto” 4 “clock”
(Note: In order to turn the AC
outlet on or off regardless of the
timer operation, set the AC outlet
control to ‘‘manual’’ and then
switch the power on or off by
using the button at right.)
Notes:
1. The sleep timer operates only once. It must be reset each time it is to be used.
2. |f the timer operation (on/off) and the sleep timer operation overlap, the sleep timer operation will take priority.
20:00 21:00 22:00 23:00 0:00 1:00
Timer operation : Timer “otk
Timer
“On”
—PLLO02L2
;
:
1 When the sleep timer is set to operate for
90 minutes, starting at 21:00
Sleep timer operation
Turns off at 22:30
