Technics SX-E33 - Page 32

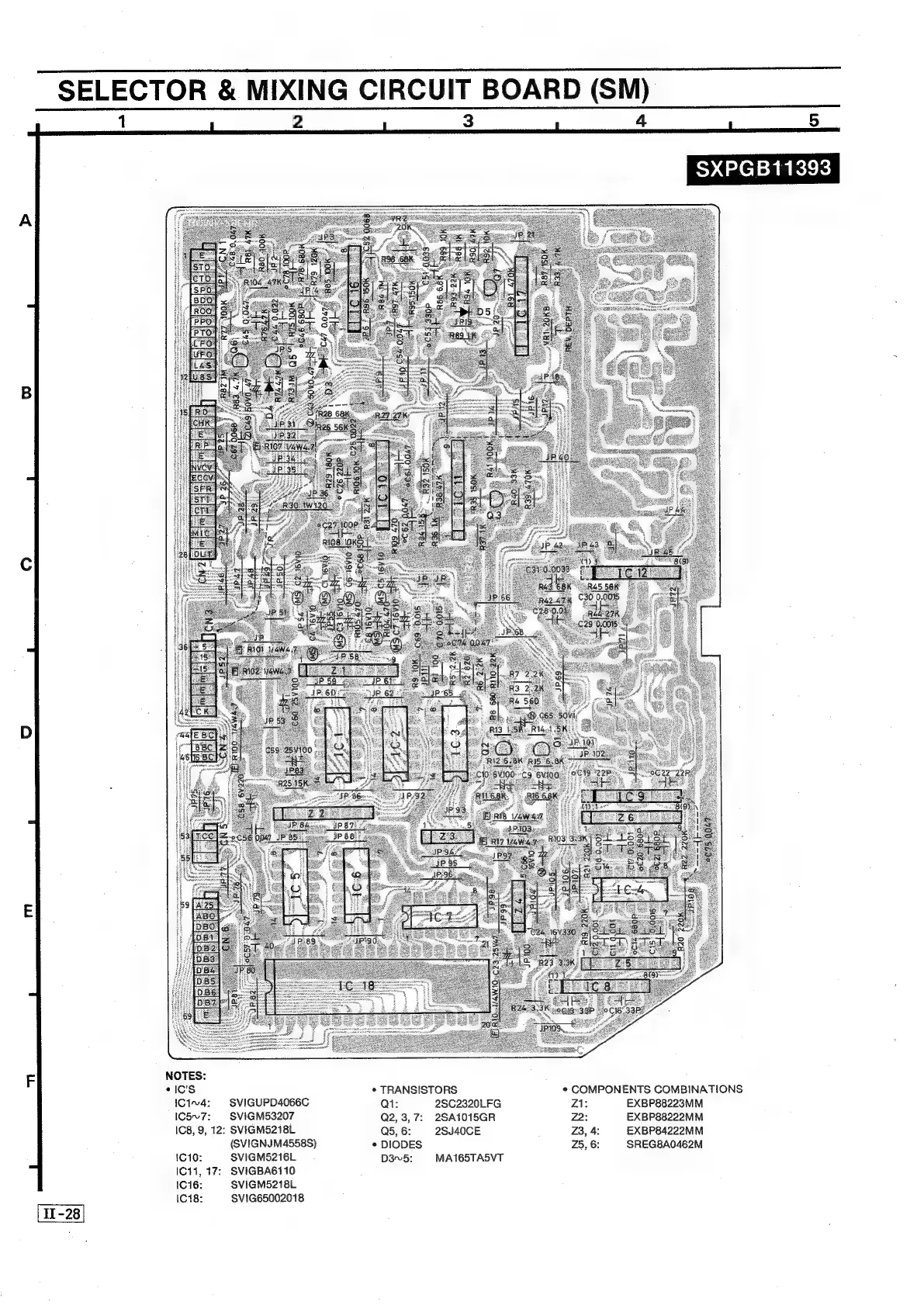

SELECTOR & MIXING CIRCUIT BOARD (SM
1 2 3 4
SXPGB11393
F NOTES:
eIc’s * TRANSISTORS * COMPONENTS COMBINATIONS
ICi~4: SVIGUPD4066C Qt: 2SC2320LFG Z1: EXBP88223MM
IC5~7: SViGM53207 Q2, 3,7: 2SA1015GR 22: EXBP88222MM
IC8, 9, 12: SVIGM5218L Q5, 6: 2SJ40CE Z3, 4: EXBP84222MM
(SVIGNJM45588) * DIODES Z5, 6: SREG8A0462M
1010: SVIGM5216L D3~5: MAI65TA5VT
IC11, 17: SVIGBA6110
IC16: SVIGM5218L
C18: SV1G65002018
