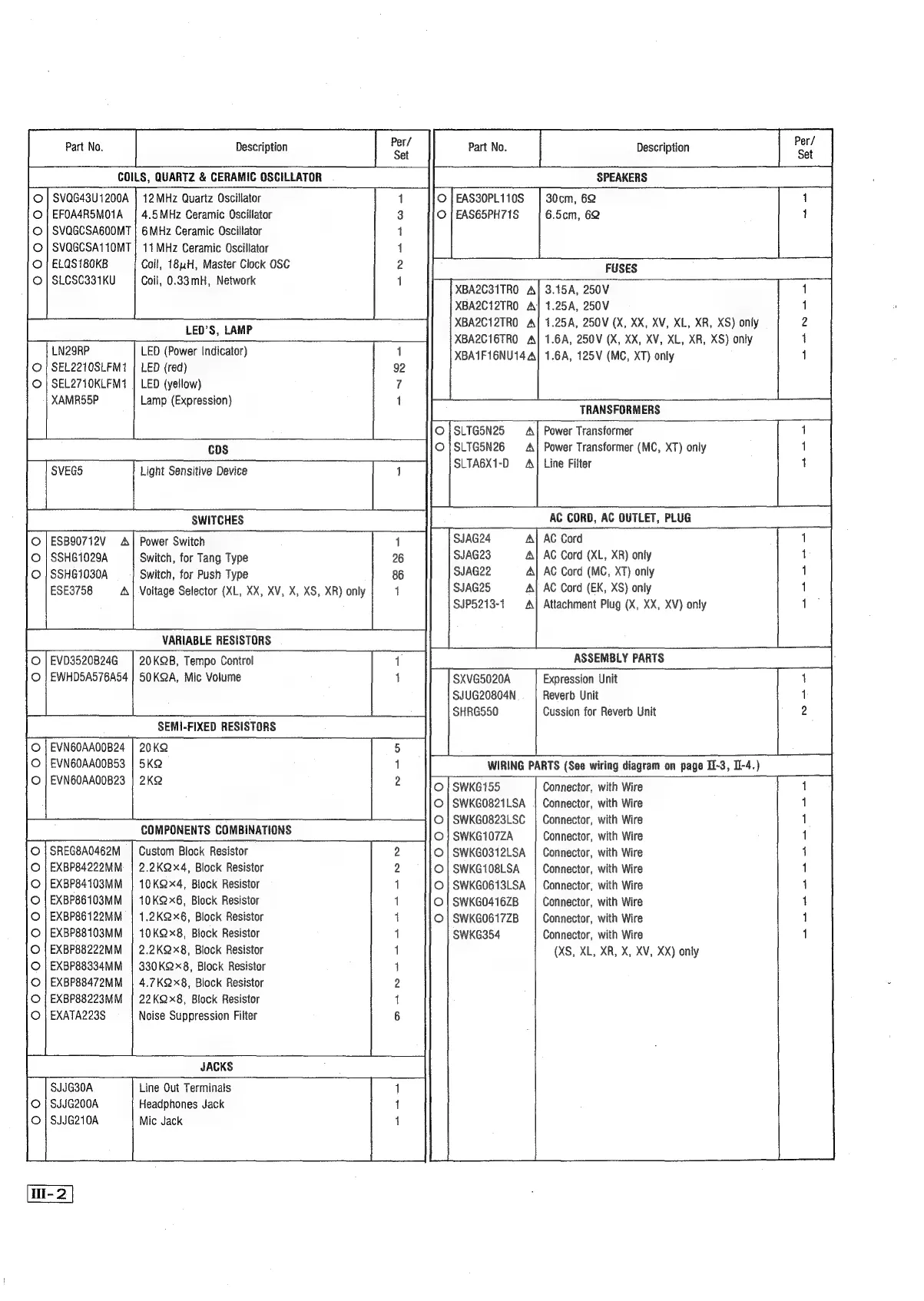

Technics SX-E33 - Page 50

Description
O00000
COILS, QUARTZ & CERAMIC OSCILLATOR
Description
SPEAKERS
SVQG43U1200A | 12MHz Quartz Oscillator
EFOA4R5M01A =| 4.5MHz Ceramic Oscillator
SVQGCSA600MT | 6 MHz Ceramic Oscillator
SVQGCSA110MT | 11MHz Ceramic Oscillator
ELQS180KB Coil, 184H, Master Clock OSC
SLCSC331KU Coil, 0.33mH, Network
LED’S, LAMP
LN29RP LED (Power Indicator)
SEL2210SLFM1 | LED (red)
SEL2710KLFM1 | LED (yellow)
XAMR55P Lamp (Expression)
Light Sensitive Device
SWITCHES
ESB90712V A} Power Switch
SSHG1029A Switch, for Tang Type
SSHG1030A Switch, for Push Type
ESE3758 A| Voltage Selector (XL, XX, XV, X, XS, XR) only
VARIABLE RESISTORS
EVD3520B24G =| 20K2B, Tempo Control
EWHD5A576A54 | 50KQA, Mic Volume
SEMI-FIXED RESISTORS
EVNGOAA00B24 | 20KQ
EVNGOAA00B53 | 5KQ
EVN6OAA00B23 | 2KQ
O}EAS30PL110S | 30cm, 62
°
EAS65PH71S 6.5cm, 62
FUSES
XBA2C31TRO Al 3.15A, 250V
XBA2C12TRO Aj 1.25A, 250V
XBA2C12TRO A] 1.25A, 250V (X, XX, XV, XL, XR, XS) only
XBA2C16TRO A} 1.6A, 250V (X, XX, XV, XL, XR, XS) only
XBA1F16NU14 A| 1.6A, 125V (MC, XT) only
TRANSFORMERS
SLTG5N25 Power Transformer
SLTG5N26 Power Transformer (MC, XT) only
SLTA6X1-D Line Filter
AC CORD, AC OUTLET, PLUG
SJAG24 AC Cord
SJAG23 AC Cord (XL, XR) only
SJAG22 AC Cord (MC, XT) only
SJAG25 AC Cord (EK, XS) only
SJP5213-1 Attachment Plug (X, XX, XV) only
SXVG5020A Expression Unit
SJUG20804N Reverb Unit
SHRG550 Cussion for Reverb Unit
——_—_L
WIRING PARTS (See wiring diagram on page H-3, 1-4.)
O0000000000
COMPONENTS COMBINATIONS
SREG8A0462M | Custom Block Resistor
EXBP84222MM | 2.2K2%x4, Block Resistor
EXBP84103MM | 10K2x4, Block Resistor
EXBP86103MM | 10KQx6, Block Resistor
EXBP86122MM | 1.2KQ2%x6, Block Resistor
EXBP88103MM | 10KQ2x8, Block Resistor
EXBP88222MM | 2.2K2x8, Block Resistor
EXBP88334MM | 330K%8, Block Resistor
EXBP88472MM | 4.7K92x8, Block Resistor
EXBP88223MM | 22KQx8, Block Resistor
EXATA223S Noise Suppression Filter
Or nm nwt oo es oa 2 pw Pw
SJJG30A Line Out Terminals
SJJG200A Headphones Jack
SJJG210A Mic Jack
CO0O0000000
SWKG155 Connector, with Wire
SWKGO0821LSA | Connector, with Wire
SWKGO0823LSC | Connector, with Wire
SWKG107ZA Connector, with Wire
SWKG0312LSA | Connector, with Wire
SWKG108LSA Connector, with Wire
SWKG0613LSA | Connector, with Wire
SWKG0416ZB Connector, with Wire
SWKG0617ZB Connector, with Wire
SWKG354 Connector, with Wire
(XS, XL, XR, X, XV, XX) only
