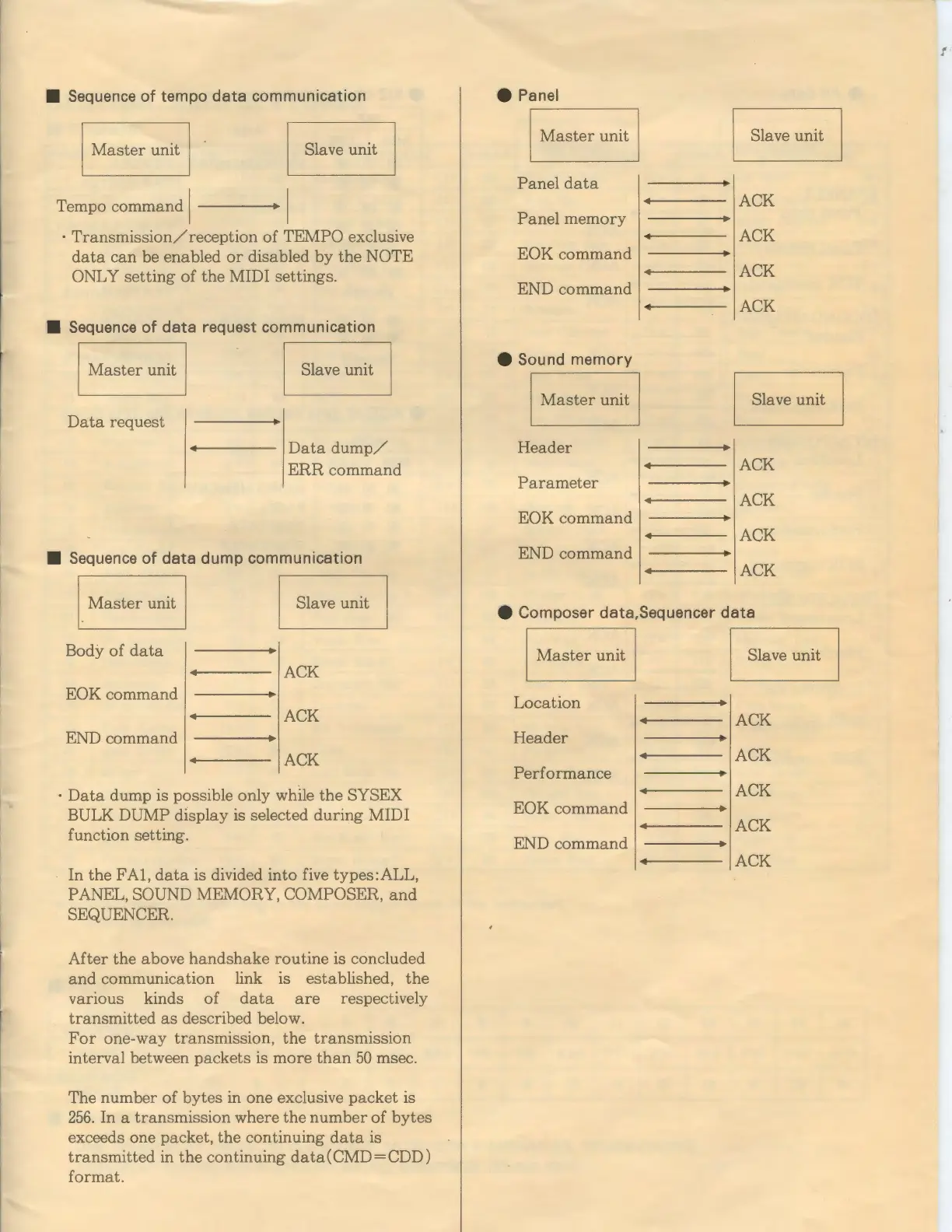

• Sequence of tempo
data
communication
Master
unit
Slave
unit
Tempo
command
1-
---
.
Transmission/
reception
of
TEMPO exclusive
data
can
be
enabled
or
disabled
by
the
NOTE
ONLY
setting
of
the
MIDI settings.
• Sequence
of
data
request communication
Master
unit
Data
request
Slave
unit
Data
dump/
ERR
command
• Sequence
of
data
dump communication
Master
unit
Slave
unit
Body
of
data
ACK
EOK
command
ACK
END
command
ACK
·
Data
dump is possible only while
the
SYSEX
BULK DUMP display is selected
during
MIDI
function setting.
In
the
F
Al,
data
is divided into five
types:ALL,
PANEL, SOUND MEMORY, COMPOSER,
and
SEQUENCER.
After
the
above
handshake
routine
is concluded
and
communication link is established,
the
vanous
kinds of
data
are
respectively
transmitted
as
described below.
For
one-way
transmission,
the
transmission
interval between
packets
is
more
than
50
msec.
The
number
of
bytes
in
one
exclusive
packet
is
256.
In
a
transmission
where
the
number
of
bytes
exceeds one packet,
the
continuing
data
is
transmitted
in
the
continuing
data(CMD=CDD)
format.
e Panel
Master
unit
Panel
data
Panel
memory
EOK
command
END
command
e Sound
memory
Master
unit
Header
Parameter
EOK
command
END
command
Slave
unit
ACK
ACK
Slave
unit
ACK
ACK
ACK
ACK
e Composer data,Sequencer
data
Master
unit
Location
Header
Performance
EOK
command
END
command
Slave
unit
ACK
ACK
ACK
ACK
ACK
{ '
