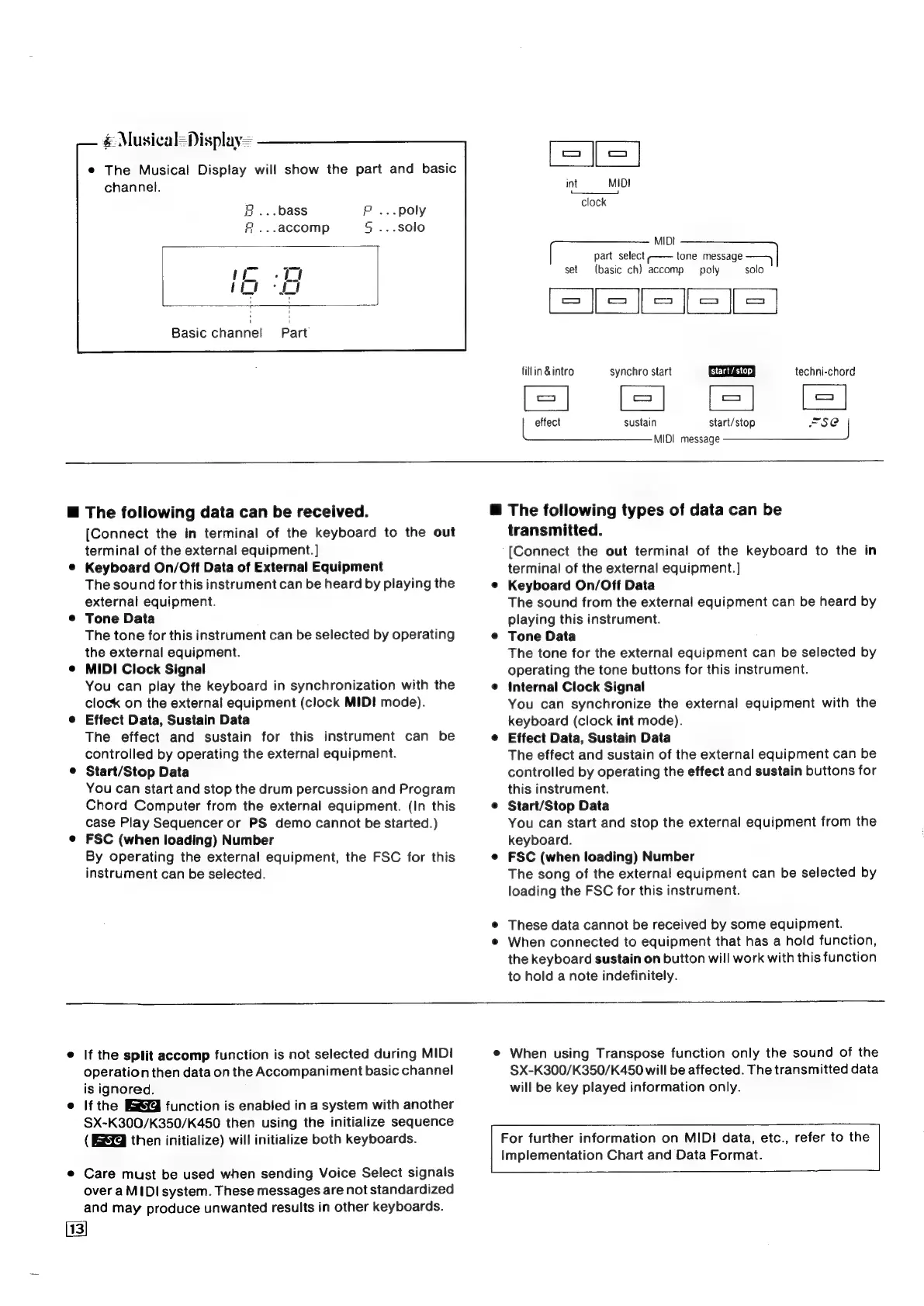

Technics SX-K350

&
Musical=Display=
® The Musical Display will show the part and basic
channel.
B...bass
..accomp Git
. poly
.solo
Basic channel Part
@ The following data can be received.
[Connect the in terminal of the keyboard to the out
terminal of the external equipment. ]
® Keyboard On/Off Data of External Equipment
The sound for this instrument can be heard by playing the
external equipment.
© Tone Data
The tone for this instrument can be selected by operating
the external equipment.
¢ MIDI Clock Signal
You can play the keyboard in synchronization with the
clock on the external equipment (clock MIDI mode).
e Effect Data, Sustain Data
The effect and sustain for this instrument can be
controlled by operating the external equipment.
e Start/Stop Data
You can start and stop the drum percussion and Program
Chord Computer from the external equipment. (In this
case Play Sequencer or PS demo cannot be started.)
¢ FSC (when loading) Number
By operating the external equipment, the FSC for this
instrument can be selected.
Ped
int MIDI
clock
MIDI
part select -—— tone message
(basic ch) accomp poly solo
eS ee
fillin &intro synchro start | start / stop | techni-chord
effect sustain start/stop “SC |
MIDI message
@ The following types of data can be
transmitted.
[Connect the out terminal of the keyboard to the in
terminal of the external equipment.]
e Keyboard On/Off Data
The sound from the external equipment can be heard by
playing this instrument.
¢ Tone Data
The tone for the external equipment can be selected by
operating the tone buttons for this instrument.
¢ Internal Clock Signal
You can synchronize the external equipment with the
keyboard (clock int mode).
e Effect Data, Sustain Data
The effect and sustain of the external equipment can be
controlled by operating the effect and sustain buttons for
this instrument.
© Start/Stop Data
You can start and stop the external equipment from the
keyboard.
© FSC (when loading) Number
The song of the external equipment can be selected by
loading the FSC for this instrument.
® These data cannot be received by some equipment.
e When connected to equipment that has a hold function,
the keyboard sustain on button will work with this function
to hold a note indefinitely.
© If the split accomp function is not selected during MIDI
operation then data on the Accompaniment basic channel
is ignored.
e Ifthe function is enabled in a system with another
SX-K300/K350/K450 then using the initialize sequence
( E¥_q then initialize) will initialize both keyboards.
e Care must be used when sending Voice Select signals
over a MIDI system. These messages are not standardized
and may produce unwanted results in other keyboards.
[13]
® When using Transpose function only the sound of the
SX-K300/K350/K450 will be affected. The transmitted data
will be key played information only.
For further information on MIDI data, etc.,
Implementation Chart and Data Format.
refer to the
