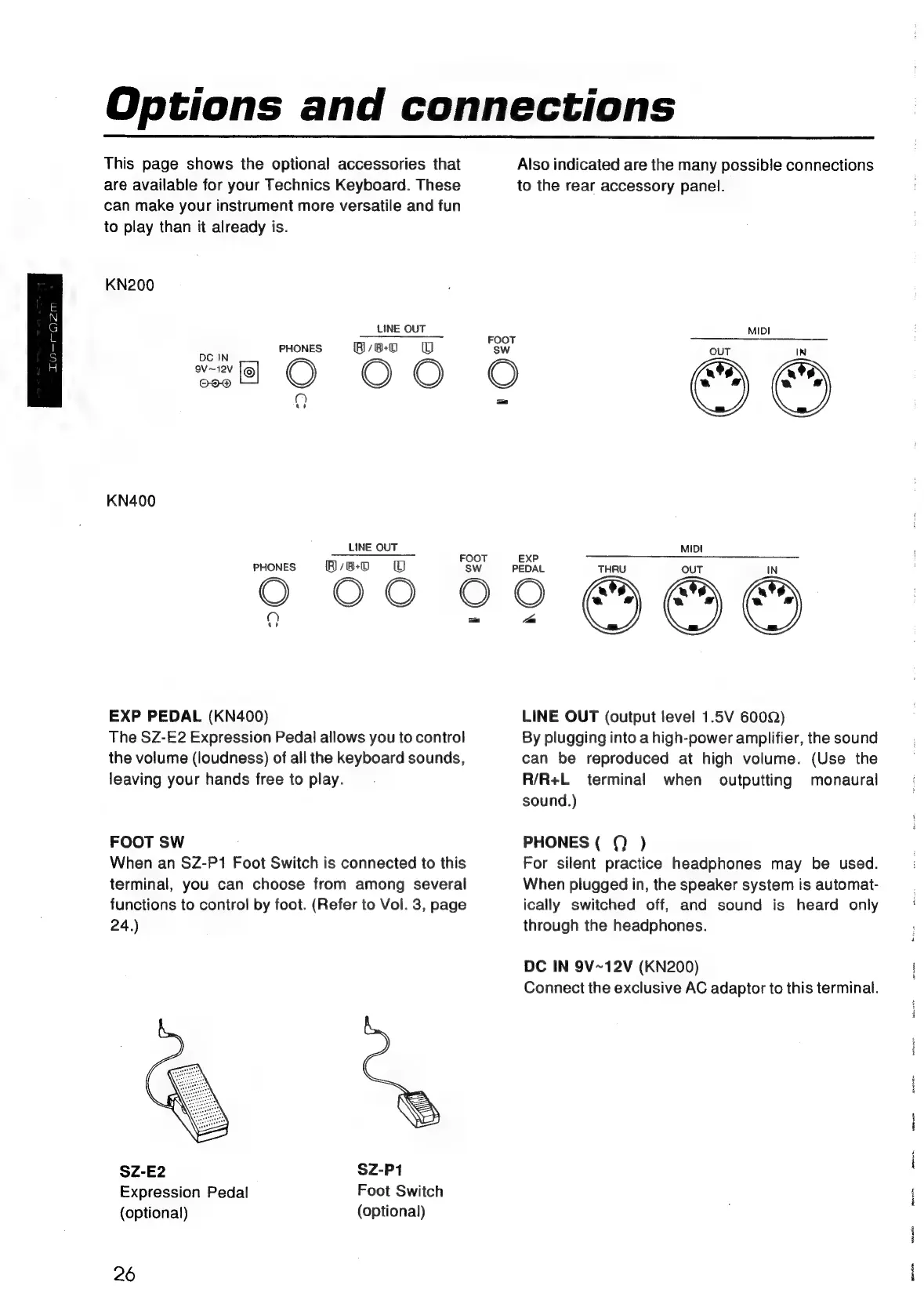

Options and connections
This page shows the optional accessories that
are available for your Technics Keyboard. These
can make your instrument more versatile and fun
to play than it already is.
KN200
LINE OUT
aa PHONES Beu UO
9V~12V
sa QO OO
7)
KN400
LINE OUT
PHONES Boo OU
o 00
a?
EXP PEDAL (KN400)
The SZ-E2 Expression Pedal allows you to control
the volume (loudness) of all the keyboard sounds,
leaving your hands free to play.
FOOT SW
When an SZ-P1 Foot Switch is connected to this
terminal, you can choose from among several
functions to control by foot. (Refer to Vol. 3, page
24.)
SZ-E2 SZ-P1
Expression Pedal Foot Switch
(optional) (optional)
26
FOOT
SW
O
FOOT
SW
PEDAL
Also indicated are the many possible connections
to the rear accessory panel.
MIDI
THRU OUT IN
2
LINE OUT (output level 1.5V 600Q)
By plugging into a high-power amplifier, the sound
can be reproduced at high volume. (Use the
R/R+L terminal when outputting monaural
sound.)
EXP
PHONES ( () )
For silent practice headphones may be used.
When plugged in, the speaker system is automat-
ically switched off, and sound is heard only
through the headphones.
DC IN 9V~12V (KN200)
Connect the exclusive AC adaptor to this terminal.
