Technics SX-KN400

TMN—-O2ZM
Part |
Sounds and Effects

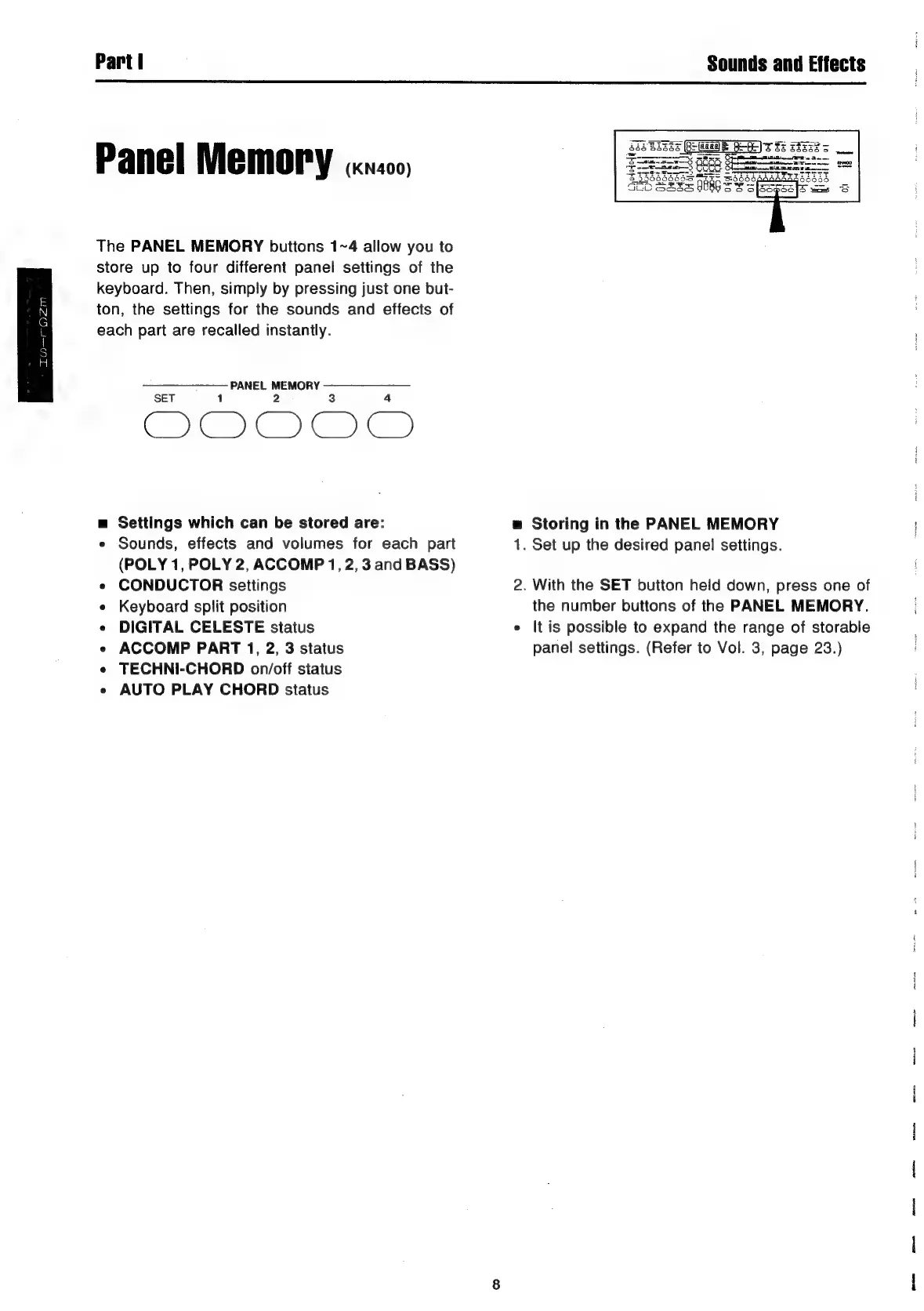

Panel MemoPy x00)
The PANEL MEMORY buttons 1~4 allow you to
store up to four different panel settings of the
keyboard. Then, simply by pressing just one but-
ton, the settings for the sounds and effects of
each part are recalled instantly.
. PANEL MEMORY
aaa @
= Settings which can be stored are:
e Sounds, effects and volumes for each part
(POLY 1, POLY 2, ACCOMP 1, 2, 3 and BASS)
e CONDUCTOR settings
e¢ Keyboard split position
e DIGITAL CELESTE status
¢ ACCOMP PART 1, 2, 3 status
¢ TECHNI-CHORD on/off status
e AUTO PLAY CHORD status
O_o jw ee Seo
O=-U=)'S 33 Fh555 5
a Storing in the PANEL MEMORY
1. Set up the desired panel settings.
2. With the SET button held down, press one of
the number buttons of the PANEL MEMORY.
e It is possible to expand the range of storable
panel settings. (Refer to Vol. 3, page 23.)
