Technics SX-KN901

BLOCK Diagram

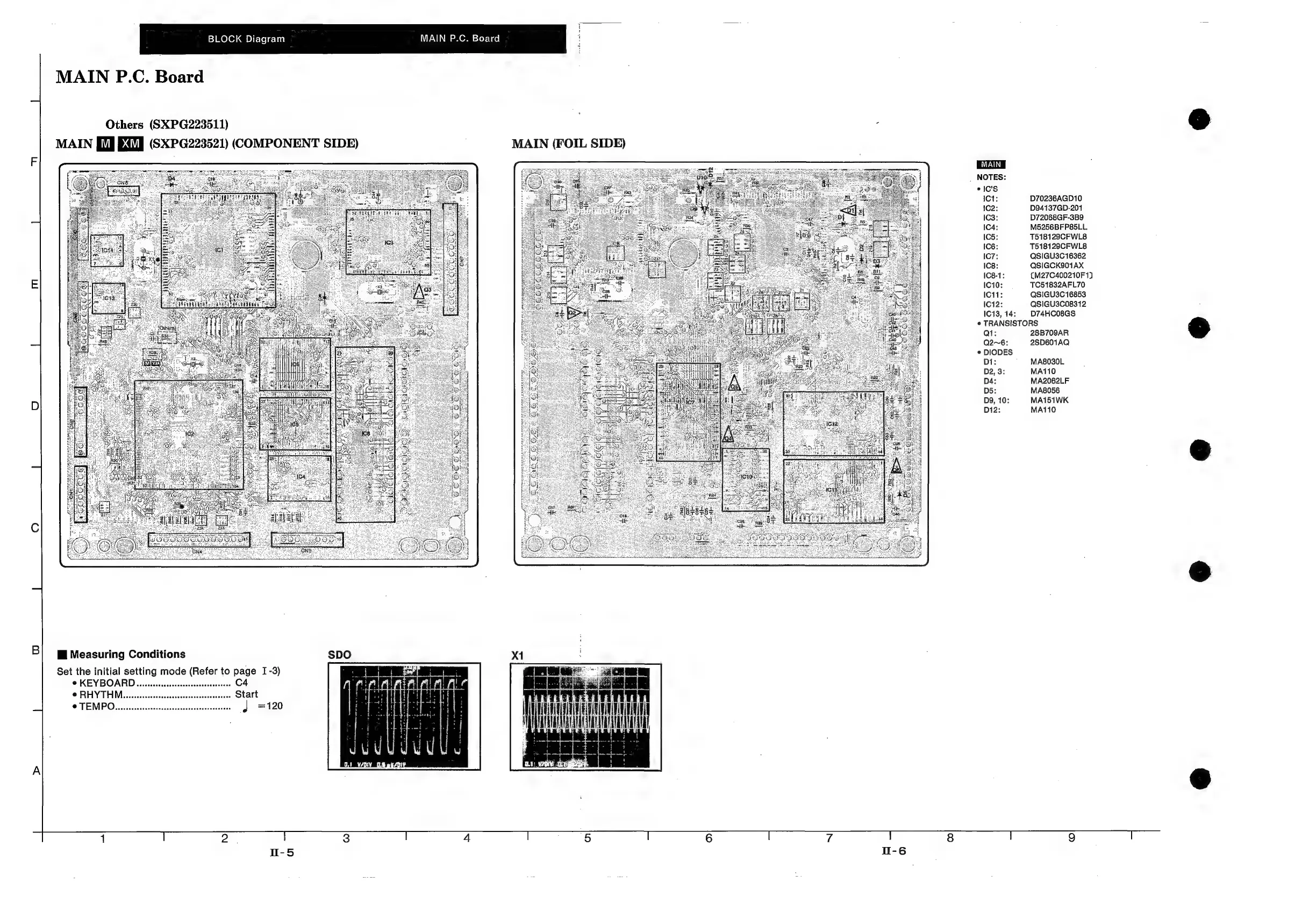

MAIN P.C. Board
Others (SXPG223511)
MAIN JJ (SXPG223521) (COMPONENT SIDE)
F
B i Measuring Conditions
Set the initial setting mode (Refer to page I -3)
© KEYBOARD ....sssssseeesssssteessesttneseene C4
®@ RHYTHM.L.....sossssseeseeseeeensseees Start
© TEMPO...csesessseseoes itieceits g) 120
SDO
PANN Ome =tex-1ce|
MAIN (FOIL SIDE)
x1
UU
i | HAMA Ht
un
ee
i
NOTES:
°1Ic’s
1C1: D70236AGD10
1C2: D94137GD-201
IC3: D72068GF-3B9
IC4: M5256BFP85LL
ICS: T518129CFWL8
IC6: T518129CFWL8
IC7: QSIGU3C16362
IC8: QSIGCK901AX
IC8-1: (M27C400210F 1)
1C10: TC51832AFL70
1C11: QSIGU3C16853
IC12: QSIGU3C08312
1013, 14: D74HCO8GS
¢ TRANSISTORS
Qt: 2SB709AR
Q2~6: 2SD601AQ
¢ DIODES
D1: ’ MA8030L
D2, 3: MA110
D4: MA2062LF
D5: MA8056
D9, 10: MA151WK
D12: MA110
