B. Installation
(1) Mount suitable lifting equipment to the engine
and swing engine into alignment with its attach-
ing points on the mounts.
(2) Install the engine to the three engine mount
attachment points including engine ground
straps.

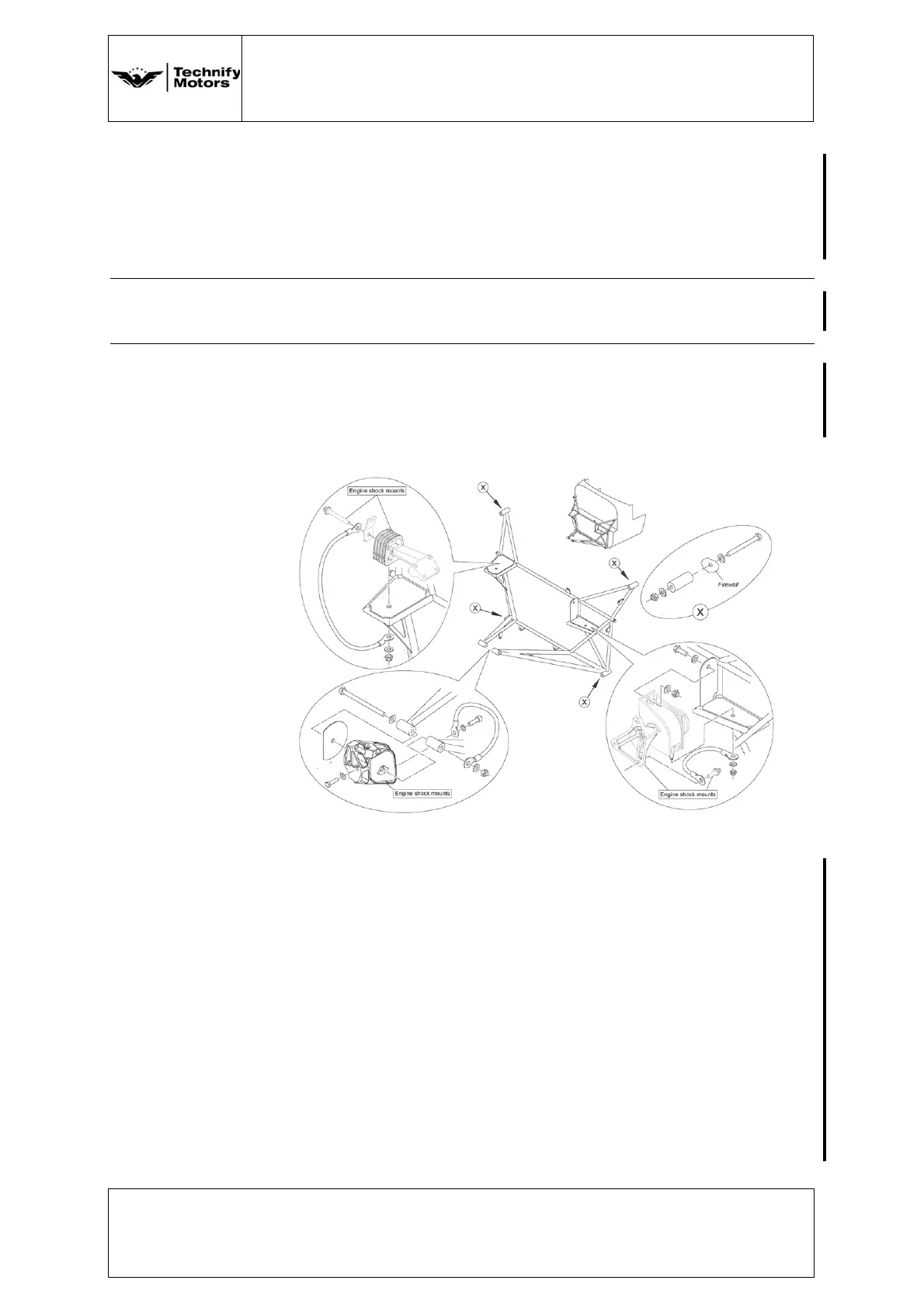

Figure 71.20
(3) Connect the engine harness to the relayboard
and inside the aircraft.
(4) Connect fuel lines to fuel filter and fuel pump.
(5) Install the oil and water cooler mount (TAE
125-02-99). Install the coolers (refer to Chapter
71, Section 71.40, Maintenance Practices).
(6) Install the water cooler mount (TAE 125-02-114).
Install the water cooler (refer to Chapter 71, Sec-
tion 71.40, Maintenance Practices).
(7) Install the intercooler mount. Install the
intercooler (refer to Chapter 71, Section 71.40,
Maintenance Practices).
(8) Connect air hoses to the firewall.
Note: Apply bonding lacquer to the ground connections at the engine
mount assemblies.
