15
Connections

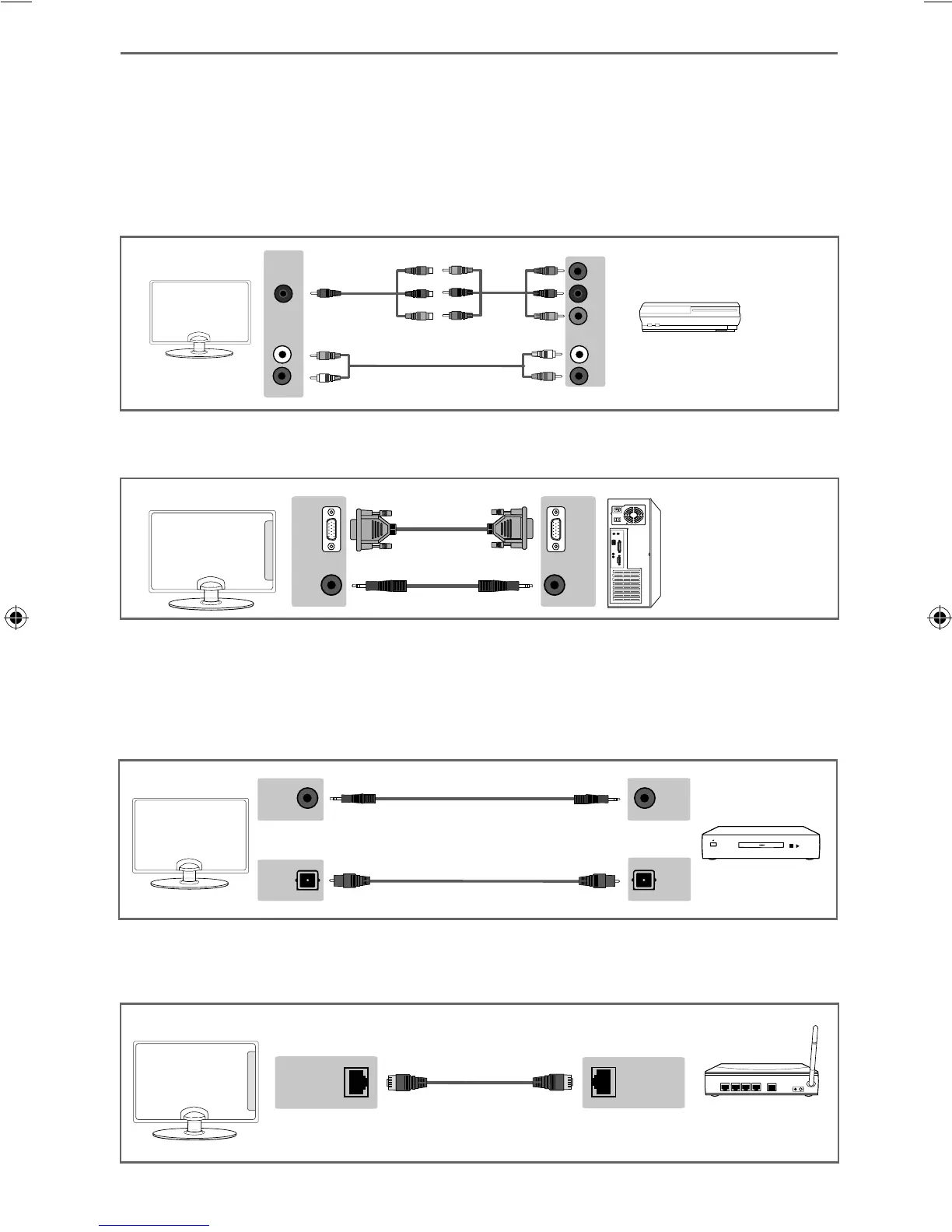

CONNECTIONS
Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component/YPbPr
Mini
YPbPr
Y
PB
PR
L
R
L
R
Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)
When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.
There are two options when connecting a device via the 3.5mm Earphone Output and the
Digital Optical Audio Output
3.5mm
EARPHONE
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for Digital Optical Audio Output
DIGITAL
AUDIO
OUT
(OPTICAL)
3.5mm
AUDIO
IN
DIGITAL
AUDIO
IN
(OPTICAL)
Connecting to a device with VGA/PC output (Laptop or Desktop Computer)
TV Source should be set to VGA/PC
VGA/PC
IN
VGA/PC
OUT
VGA/PC
(AUDIO
IN)
AUDIO
OUT
Ethernet
Port
Ethernet
Port
Connecting an Ethernet/Network cable
The Ethernet port is used only for Pay TV services and Freeview HD (Freeview services are only available in
the UK). It is not intended to be used for internet/network use.
User Guide - 32F22B-FHD-DVD-32F22WFHD-DVD-40F22B-FHD-DVD - TEC-MAN-0086.indd Sec1:15User Guide - 32F22B-FHD-DVD-32F22WFHD-DVD-40F22B-FHD-DVD - TEC-MAN-0086.indd Sec1:15 06/03/2015 11:05:5606/03/2015 11:05:56
