Technika VDW6

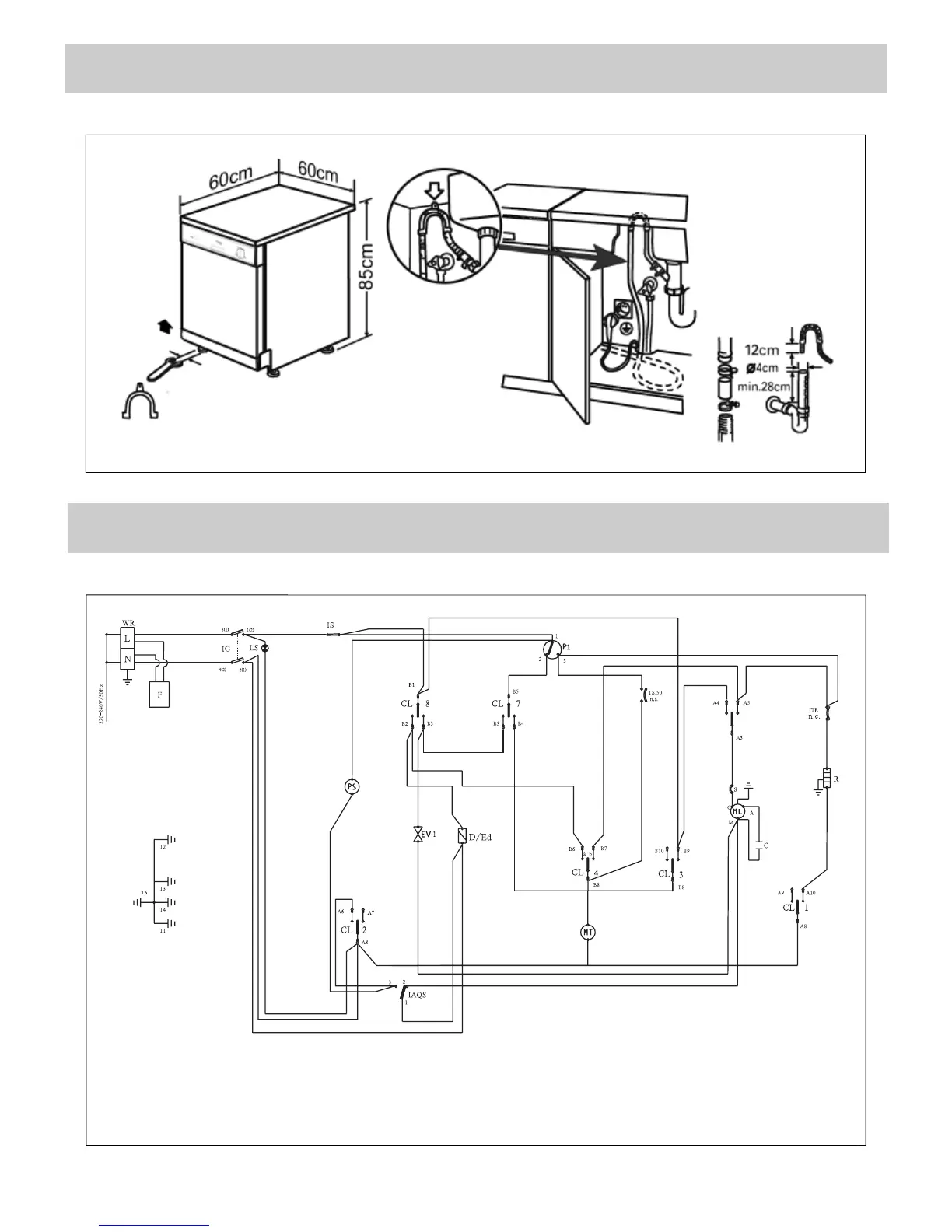

Installation
Diagram
WR: Wiring box IG: Power switch IS: Door switch P1: Water level switch LS: Power indicator
PS: Drain pump EV1: Inlet valve D-Ed: Dispenser TS.50: 50°C Thermostat
ITR: Overheat thermostat R: Heater ML: Washing motor MT: Timer motor IAQS: overflow switch
