> Connect the Mini DIN connector (violet) of the adapter cable supplied, labelled
Receiver with the SkyFunk 3 receiver.
> The SkyFunk receiver should be positioned in such a way that the red IR window has
an unobstructed line of sight to the remote control unit. This is essential to ensure the
remote control command signals are transmitted.
> When you have made the connection described above, connect the mains power
adapter supplied with the socket DC 9V of the SkyFunk 3 receiver.
> Connect the Scart connector of the adapter cable labelled receiver with the Scart
socket of your television set. Youi can now receive and view the signals received via
the SkyFunk receiver on the programme slot AV.
5

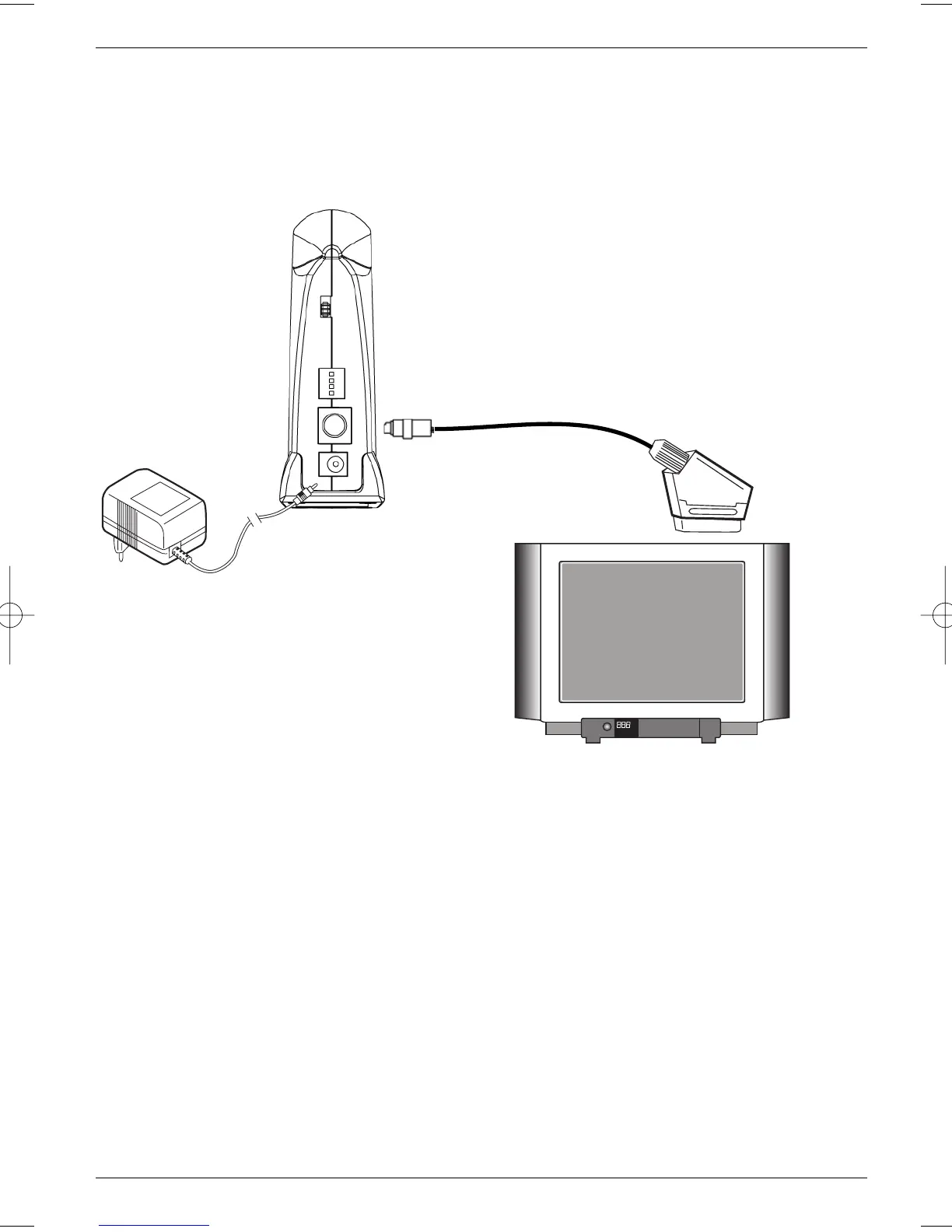

Connecting the SkyFunk receiver
Adapter cable
Mains power
adapter
TV set
Receiver
Receiver
Mini DIN connector
(violet)
Scart connec-
tor
