Display
T1 and E5
Absolute interior humidity (g/m³, displayed in °C)
T2 and E6
Absolute exterior humidity (g/m³, displayed in °C)
T3 and E1
Relative interior humidity (%, displayed in °C)
T4 and E2
Relative exterior humidity (%, displayed in °C)
T5 and E3
Interior temperature
T6 and E4
Exterior temperature

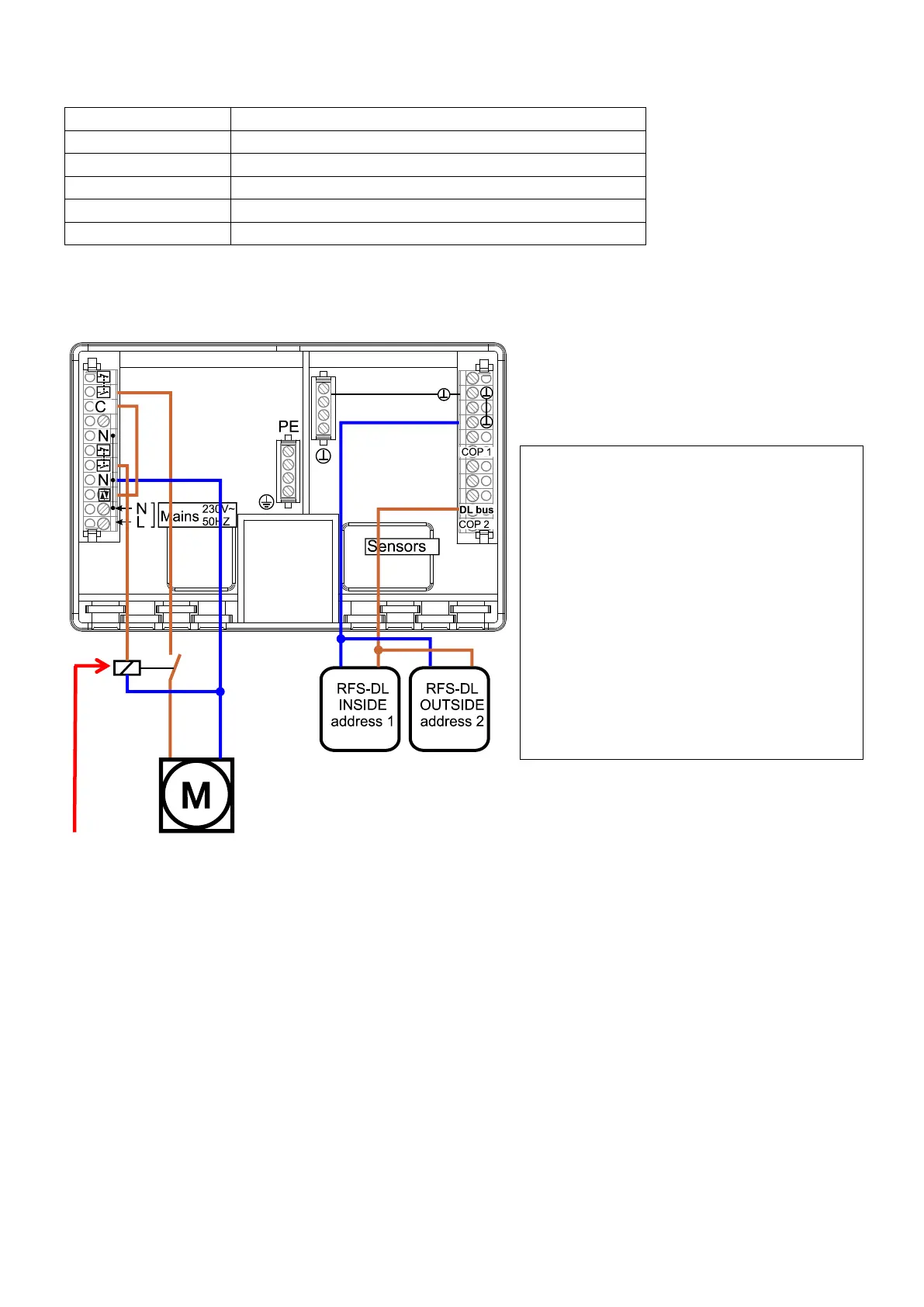

Electrical connection UVR61-3
Output 3 must be made potential-free.
For this, the red jumper on the rear of the
detachable upper controller part is re-
moved.
An external auxiliary relay whose contact is arranged in series with both other outputs is connected
to output 2.
We reserve the right to make technical changes © 2017
Meaning of the luminous digits
1: Fan operation for room drying acti-
vated (interval operation) via abso-
lute humidity
2: Activated if relative interior humidity
is above the turn-on threshold
3: Activated if the room temperature is
above the temperature threshold
The fan runs only if all three luminous
digits are illuminated
