The DIY Synth Kit is an electronic synthesizer designed for users to build themselves, offering a hands-on experience in learning technological skills and creating electronic music. The kit is presented as a step-by-step guide, emphasizing creativity in construction and customization.

Function Description:

The DIY Synth is an electronic musical instrument that generates sounds. Users can manipulate various controls to alter the frequency, pitch, and volume of the sounds produced. The core of the synth's functionality lies in the NE556 Timer IC, which is an integrated circuit responsible for generating the electronic signals that are then converted into audible sound by a speaker. The potentiometers act as variable resistors, allowing users to adjust the resistance in the circuit, thereby changing the characteristics of the sound. Capacitors store and release electrical charge, influencing the timing and waveform of the generated signals. The breadboard serves as a solderless platform for assembling the circuit, making it ideal for prototyping and experimentation.

Important Technical Specifications (Components):

The kit includes the following components:

1x Breadboard: A solderless board for prototyping electronic circuits.
1x 9v Battery Clip: Connects a 9-volt battery to power the circuit. The red wire is positive, and the black wire is negative.
Selection of Jumper Wires: Color-coded and pre-cut wires for making connections on the breadboard. Red wires are generally for positive connections, and black for negative (ground).
1x 8 Ohm Speaker: Converts electrical signals into audible sound. Works best when mounted on a hard surface.
1x 1k Ohm Resistor: Restricts the flow of electrical current. Identified by brown, black, and red stripes. Resistors are non-polarized and can be plugged in either way.
1x 4.7K Logarithmic Potentiometer (Volume Control): A variable resistor used to control the volume. Its resistance changes as the knob is rotated. The middle pin is typically the "wiper" pin.
2x 470K Linear Potentiometer (Frequency and Pitch Control): Variable resistors used to control the frequency and pitch of the synth's sound. Similar to the volume control, their resistance changes with rotation.
1x NE556 Timer IC (Integrated Circuit): The central processing unit of the synth, a 14-pin chip that generates the electronic signals. It is a dual timer chip, comprising 25 transistors, 2 diodes, and 15 resistors.
1x 10uf Electrolytic Capacitor (Cylindrical and Black): A polarized capacitor that stores and releases electrical charge. It has two legs of different lengths; the long leg connects to positive voltage, and the short leg to ground.
2x 10nf Ceramic Capacitor: Non-polarized capacitors that store and release electrical charge. They have legs of equal length and can be plugged in either way.

Usage Features:

Step-by-step Assembly: The manual provides clear, illustrated instructions for assembling the synth, making it accessible for beginners.
Solderless Construction: The use of a breadboard eliminates the need for soldering, simplifying the building process and allowing for easy modifications.
Interactive Controls: The potentiometers allow for real-time manipulation of sound parameters, including frequency, pitch, and volume, enabling users to create a variety of electronic sounds.
Customization: Users are encouraged to design and build their own casing for the synth using various materials like cardboard, tin, or wood. This allows for personalization and protection of the circuit.
Educational Value: The kit aims to teach users about basic electronics, circuit building, and the function of different electronic components.

Maintenance Features:

Component Identification: The manual provides descriptions and visual aids for identifying each component, including how to differentiate between polarized and non-polarized capacitors and how to read resistor values.
Troubleshooting Tips: The "Top Tips" sections offer advice, such as understanding wire color-coding (red for positive, black for negative) and recognizing component variations, which can help in troubleshooting during assembly.
Circuit Check: A dedicated section with an image of the completed circuit allows users to compare their build and ensure all connections are correct.
Battery Access: The design encourages users to create a casing that allows easy access to the 9-volt battery for replacement.
Resource Page: Additional information on how the circuit works and ways to extend the synth's functionality can be found on the provided resource page (twsu.co/synth), supporting ongoing learning and experimentation.

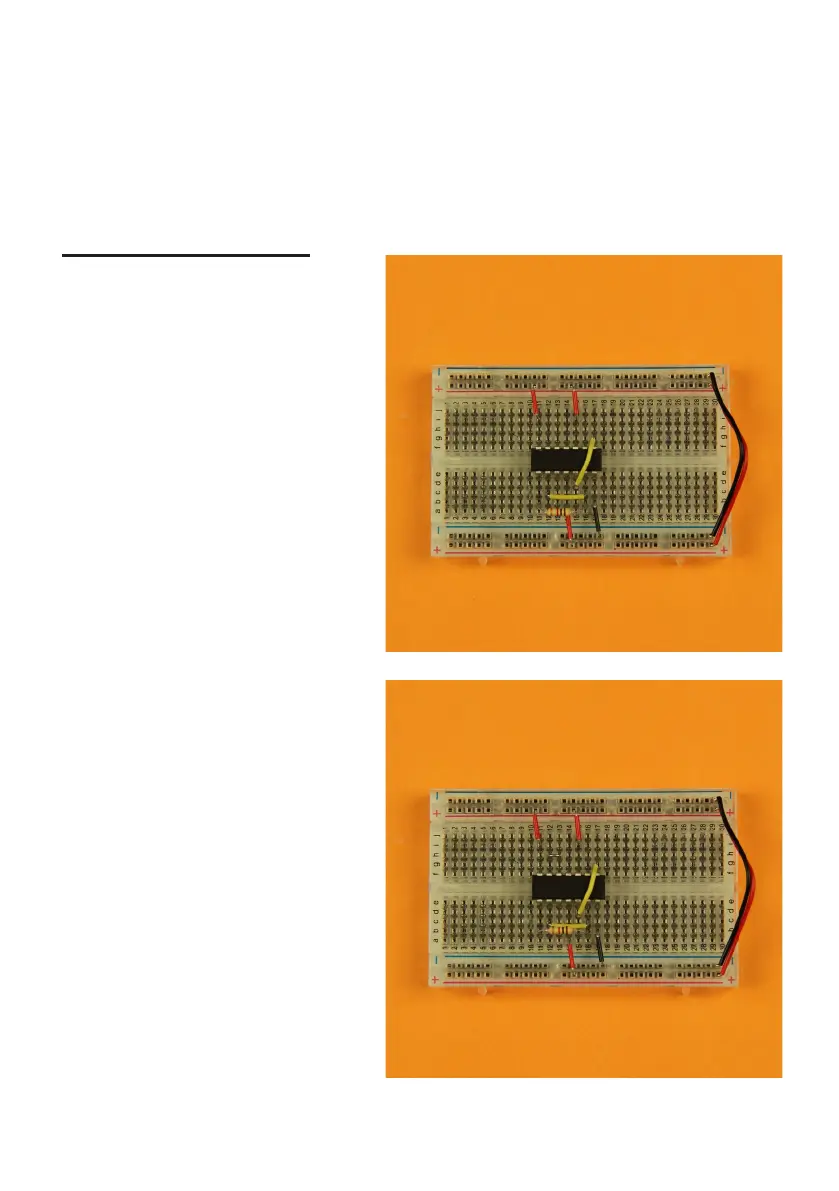

Technology Will Save Us DIY Synth - Page 11
