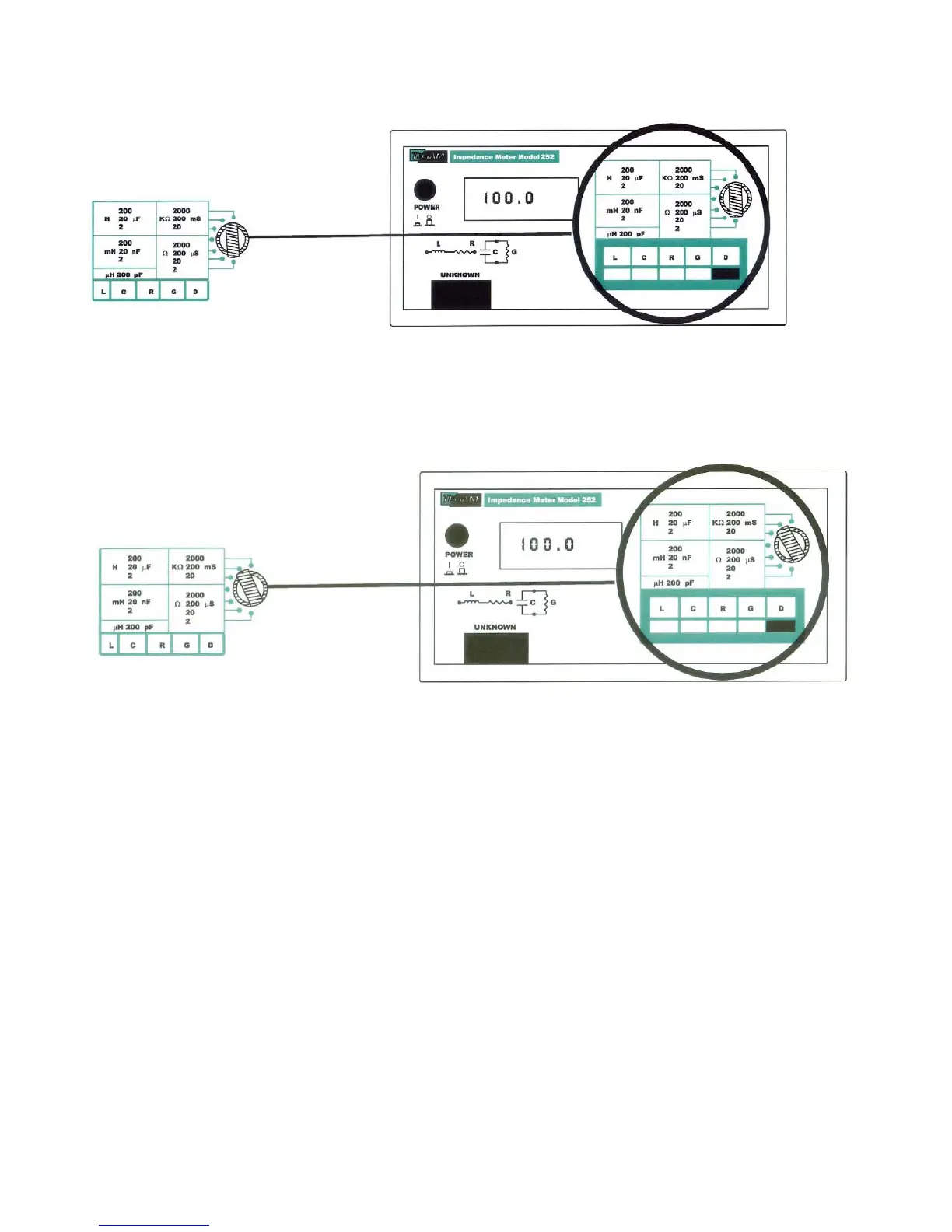

Example: Set the instrument to measure 100pF capacitors.
Example: Set the instrument to measure 100kΩ resistors.
If the value of a component is not known, set the instrument to its highest range before connecting the
test leads. Step the instrument down one range at a time until the range with the highest resolution
is reached. If the display is blank after the component is connected, the value of the component is too
large to measure directly, see Section 2.3 for alternate measurement techniques.
2.2.6 Summary of Operation
Press the appropriate function button (L, C, R, or G) and connect the KELVIN KLIPS® to the unknown.
For maximum accuracy, select the range that gives the largest on-scale reading. The measurement is
displayed after one second or less. Repetitive measurements are made at the rate of four per second.
The position of the range switch indicates the readout units (i.e. µH, mH, H, etc.). If the value of the
2-13
