TEK 2225 - Page 144

METAL CASE &
LTRANsIsToRs
FET Q367 & Q365
!!! If!
GDS CBE
\ PLASTIC CASE 1
TRANSISTORS
9
8
5
7
1
- INTEGRATED CIRCUITS
LEAD CONFIGURA TlONS AND CASE STYLES ARE TYPICAL, BUT MAY VARY DUE TO VENDOR CHANGES OR
INSTRUMENT MODIFICATIONS
TRANSISTOR
Q950 & Q980
FLAT PACK

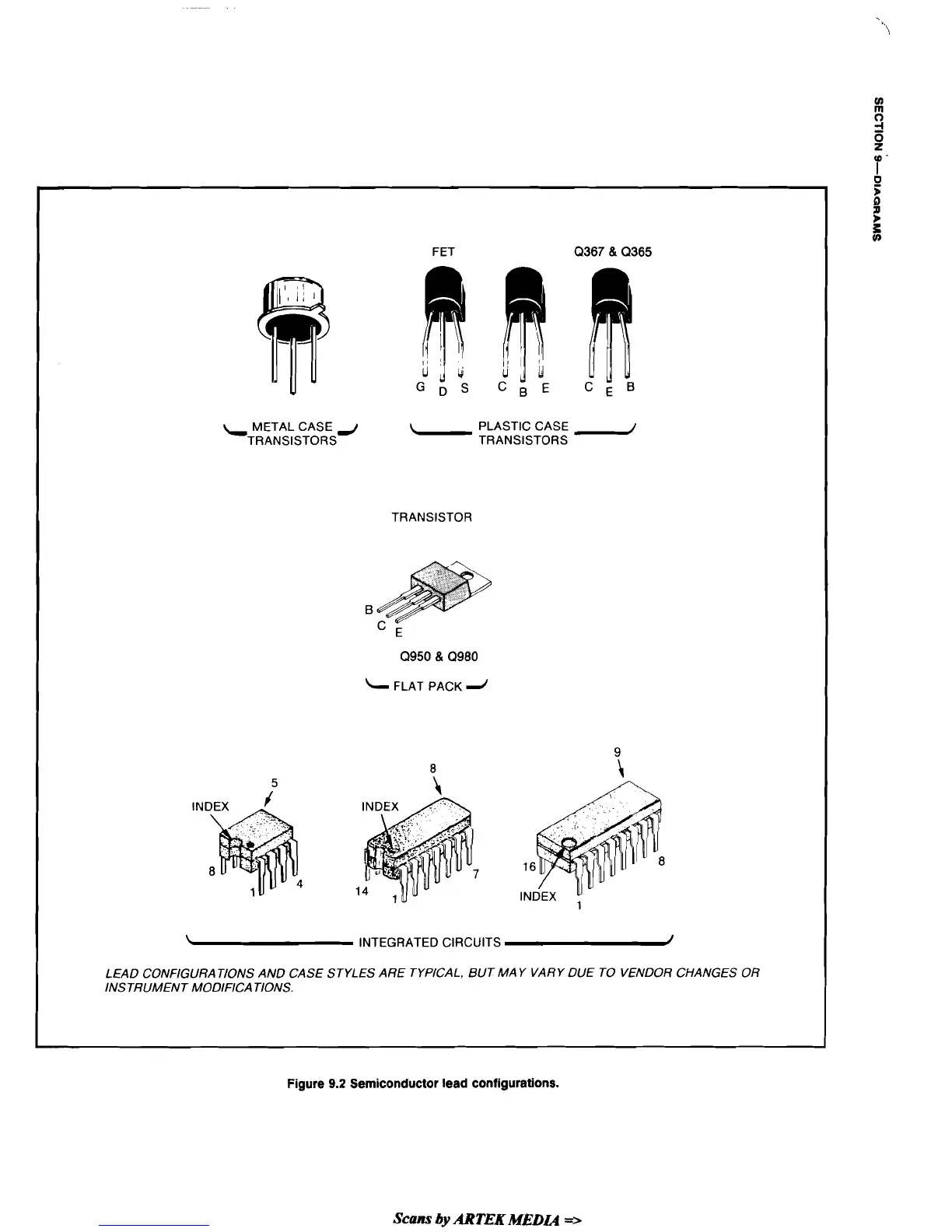

Figure 9.2 Semiconductor lead configurations.
