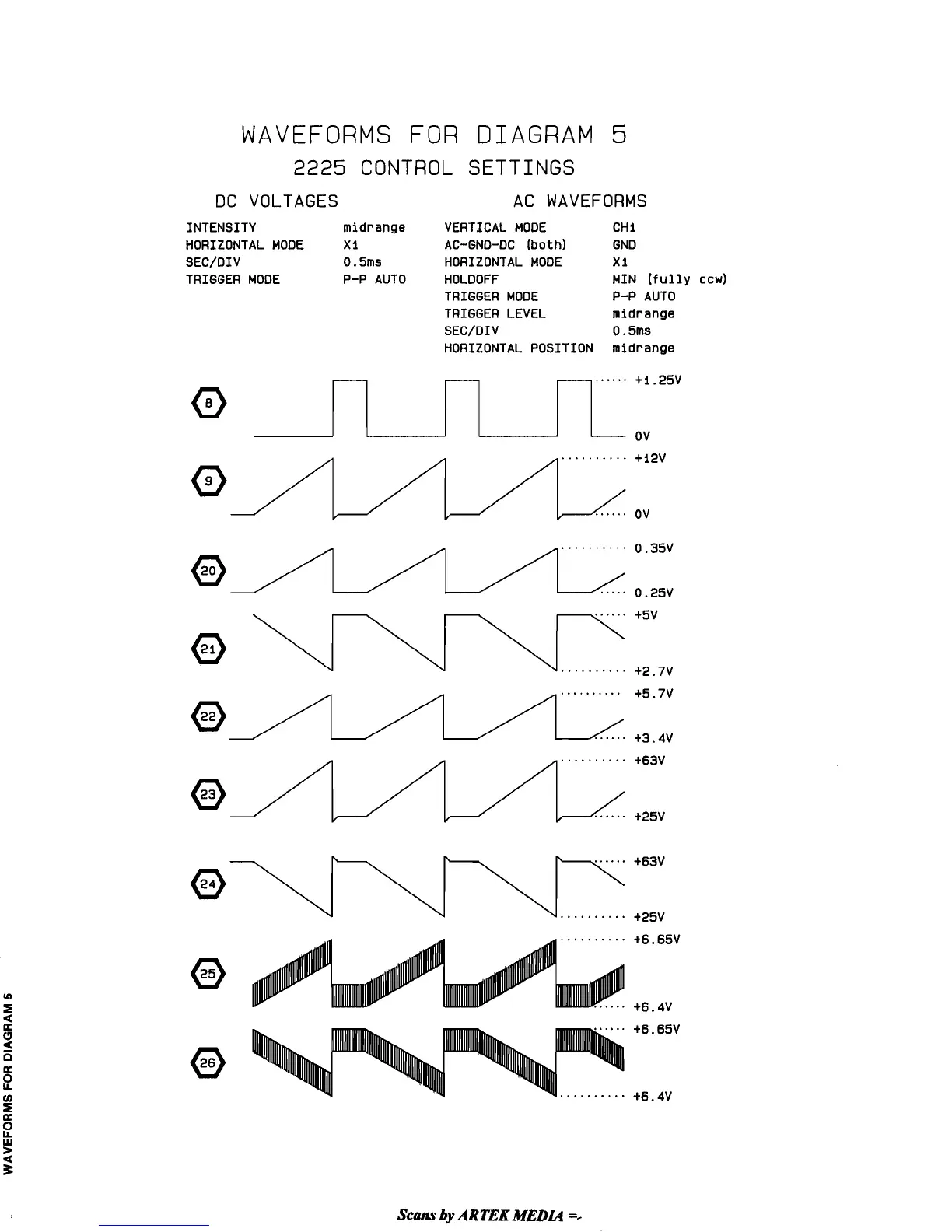

WAVEFORMS FOR DIAGRAM 5
2225 CONTROL SETTINGS
DC VOLTAGES AC WAVEFORMS
INTENSITY midrange VERTICAL MODE CHI
HORIZONTAL MODE
X 1
AC-GND-DC
(both) GND
SEC/DIV 0.5ms HORIZONTAL MODE XI
TRIGGER MODE P-P AUTO HOLDOFF
MIN (fully CCW)
TRIGGER MODE P-P AUTO
TRIGGER LEVEL midrange
SEC/DIV 0.5ms
HORIZONTAL POSITION midrange
