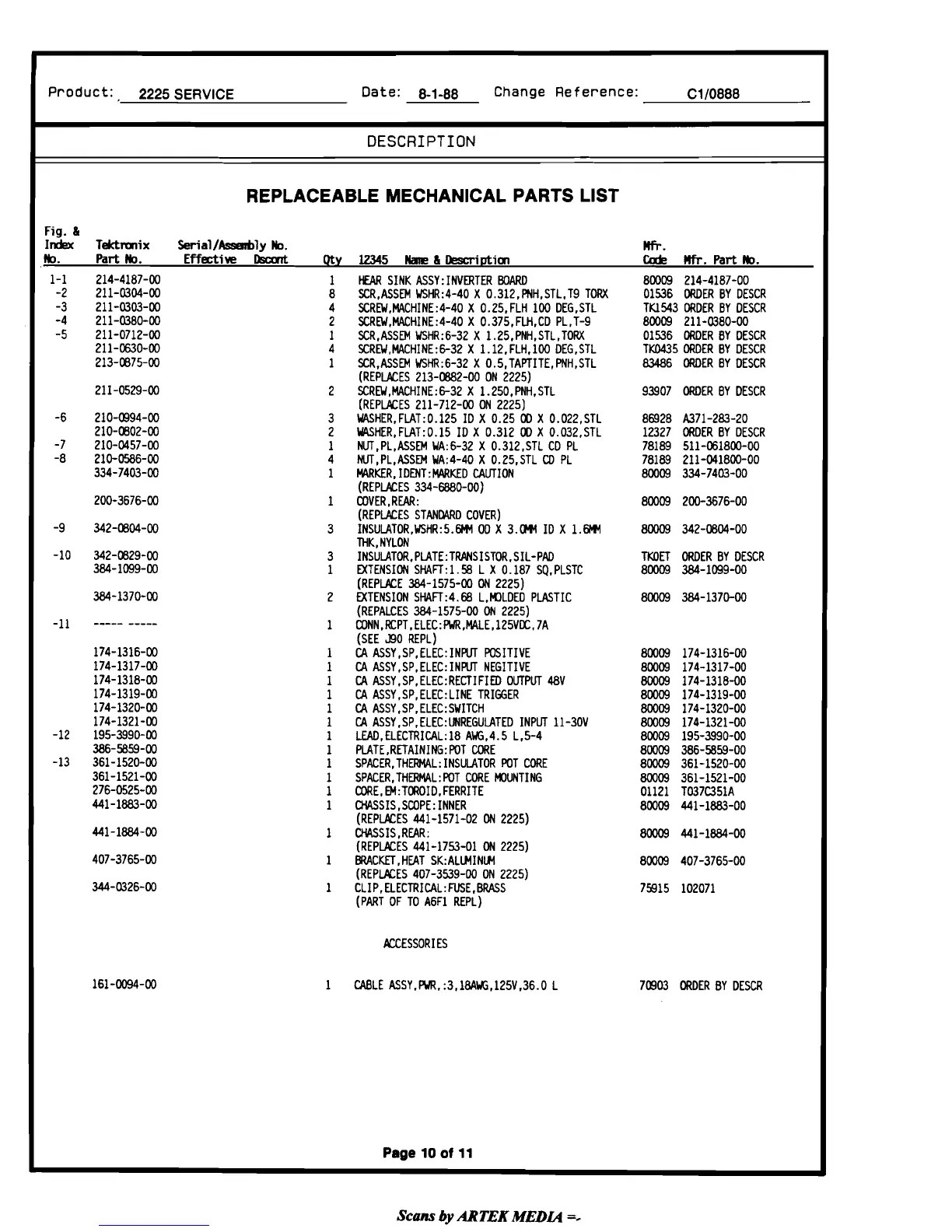

Product:
,
2225
SERVICE Date: 8-1-88 Change Reference: C110888
DESCRIPTION
REPLACEABLE MECHANICAL PARTS LIST
Fig.
&
Index
Tektmix
Serial/~ly
No.
mi-.
No.
Part
No.
Effective
Dxmt
Qty
K345
Maw
&
kcription
Cade
IM.
Part
No.
1-1 214-4187-00
1
HEAR
SINK ASSY
:
INVERTER
BOARD
80009 214-4187-00
-2 211-0304-00
8
SCR,ASSEMWSHR:4-40XO.312,PNH,STL.T9TORX
01536 ORDERBYDESCR
-3 211-0303-00
4
SCREW,MACHINE:4-40
X
0.25.FLH 100 DEG.STL TK1543 ORDER BY DESCR
-4 211-0380-00
2
SCREU,MACHINE:4-40
X
0.375.FLH,CD PL,T-9 80009 211-0380-00
-5 211-0712-00
1
SCR,ASSEMWSHR:6-32X1.25.PNH.STL,TORX
01536 ORDER BY DESCR
211-0630-00
4
SCREW,MACHINE:6-32
X
1.12.FLH,100 DEG,STL TKO435 ORDER BY DESCR
213-0875-00
1
SCR,ASSEM WSHR:6-32
X
0.5,TAPTITE,PNH,STL 83486 ORDER BY DESCR
(REPLACES 213-0882-00 ON 2225)
211-0529-00 2
SCREW,t44CHINE:6-32X1.60.PNH.STL
93907 ORDER BY DESCR
(REPLACES 211-712-00 ON 2225)
-6 210-0994-00 3
WASHER.FLAT:O.125 ID
X
0.25
OD
X
0.022,STL 86928 A371-283-20
210-0802-00 2 UASHER,FLAT:0.15 ID
X
0.312
OD
X
0.032,STL 12327 ORDER BY OESCR
-7 210-0457-00
1
W,PL,ASSEM WA:6-32
X
0.312,STL CD PL 78189 511-061800-00
-8 210-0586-00
4
NUT,PL,ASSEM WA:4-40
X
0.25,STL
CD
PL 78189 211-041800-00
334-7403-00 1
MKER. 1DENT:MARKED CAUION 80009 334-7403-00
(REPLACES
334-6880-00)
200-3676-00
1
COVER,REAR: 80009 200-3676-00
(REPLACES
STANMD COVER)
-9 342-0804-00 3
INSULATOR.WSHR:5.6m 00
X
3.M ID
X
1.M
80009
342-0804-00
THK, NYLON
-10 342-0829-00 3
1NSULATOR.PLATE:TRANSISTOR.SIL-PA0
TKOET ORDER BY DESCR
384-1099-00
1
EXTENSION SHAFI:1.58 L
X
0.187 SQ.PLSTC 80009 384-1099-00
(REPLACE 384-1575-00
ON
2225)
384-1370-00 2 MTENSION
SWFI:4.68 L.MDLDED PLASTIC 80009 384-1370-00
(REPALCES 384-1575-00 ON 2225)
-11
----A
-----
1
CMJN,RCPT,ELEC:RJR,MALE,125VOC,7A
(SEE J90 REPL)
174-1316-00
1
CA
ASSY ,SP, ELEC: INPU POSITIVE 80009 174-1316-00
174-1317-00
1
CA ASSY,SP,ELEC: INPUT NEGITIVE 80009 174-1317-00
174-1318-00
1
CA
ASSY.SP,ELEC:RECTIFIED WTPUT 48V 80009 174-1318-00
174-1319-00
1
CA ASSY.SP,ELEC: LINE TRIGGER 80009 174-1319-00
174-1320-00
1
CA
ASSY .SP, ELEC:SWITCH
80009 174-1320-00
174-1321-00
1
CA
ASSY,SP,ELEC:UNREGULATED
INWT 11-30V 80009 174-1321-00
-12 195-3990-00
1
LEAD.ELECTRICAL:18AMi.4.5L.5-4
80009 195-3990-00
386-5859-00
1
PLATE,RETAINING:POTCORE
8W09 386-5859-00
-13 361-1520-00
1
SPACER, THERMAL: INSUIATOR PDT CORE 80009 361-1520-00
361-1521-00
1
SPACER, THERMAL
:
PDT CORE MUNTING 80009 361-1521-00
276-0525-00
1
CORE. EM:TOROIO.FERRITE
01121 T037C351A
441-1883-00
1
CHASSIS,SCOPE: INNER
80009 441-1883-00
(REPLACES 441-1571-02
ON
2225)
441-1884-00 1 CHASSIS.REAR:
80009
441-1884-00
(REPLACES 441-1753-01
ON
2225)
407-3765-00 1 BRACKET, HEAT
SK:ALLMINIM 80009 407-3765-00
(REPLACES
407-3539-00 ON 2225)
344-0326-00
1
CLIP,ELECTRICAL:FUSE,BRASS
75815 102071
(PART OF TO
A6F1 REPL)
ACCESSOR1 ES
161-0094-00 1
CABLEASSY.FWR.:3,18AMi,125V.36.0L
Page
10
of
11
70903 ORDER BY DESCR
