Teka Strohm FORMENTERA BTW - Installation Drawing; Measures with PVC Bend; Measures without PVC Bend

GUIA INSTALACIÓN INODORO / TOILET INSTALLATION GUIDE | TEKA
3

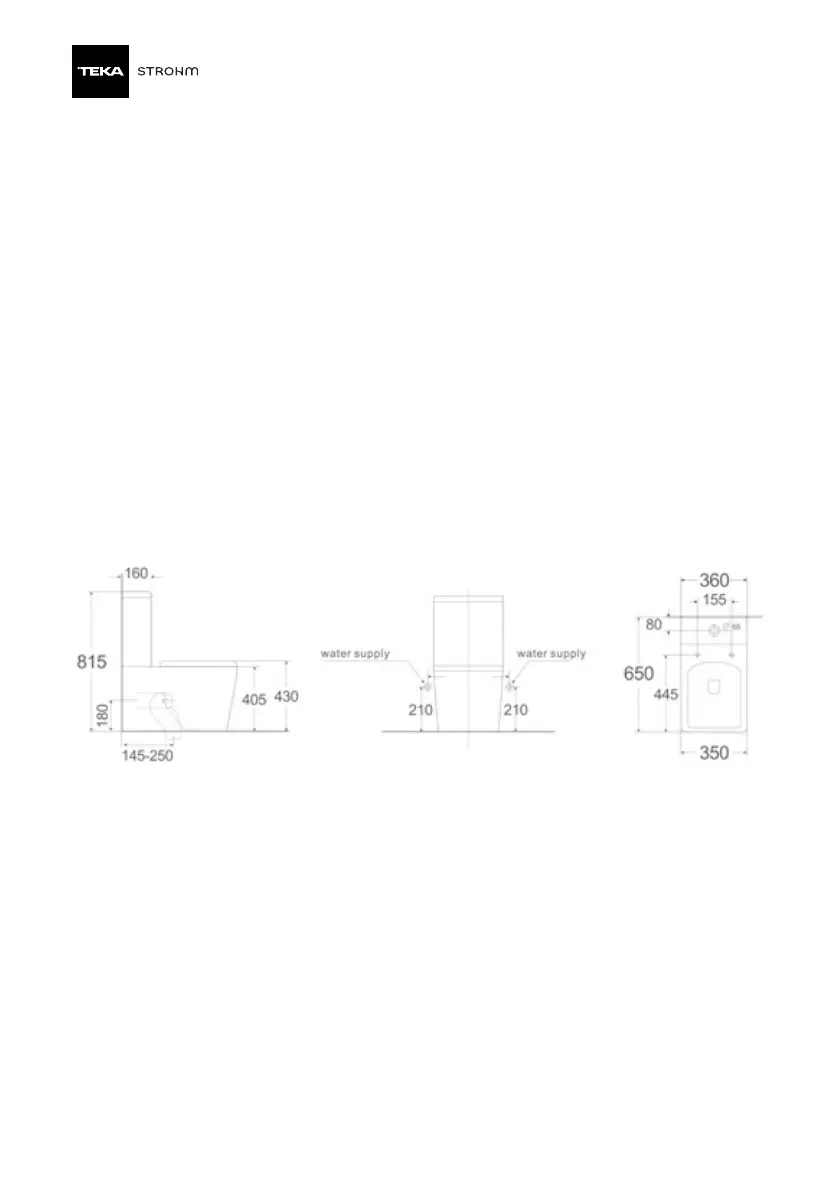

I. Installation Drawing / Cotas y rangos
FORMENTERA BTW
GUIA INSTALACIÓN INODORO
TOILET INSTALLATION GUIDE
• P-Trap 180 mm / Salida horizontal 180 mm
• S-Trap 210 mm / Salida vertical 210 mm
MEASURES WITH PVC BEND / MEDIDAS CON CODO PVC
MEASURES WITHOUT PVC BEND / MEDIDAS SIN CODO PVC
