Teknion Routes - Page 2

Section:
Description:
Page No:
Date:
ASSEMBLE THE HORIZONTAL TUBES
SECURE THE HORIZONTAL TUBE
TRO_502
2 of 4
May 2021
MOBILE SOFT SCREEN
WK TOOLS & LG SCREENS

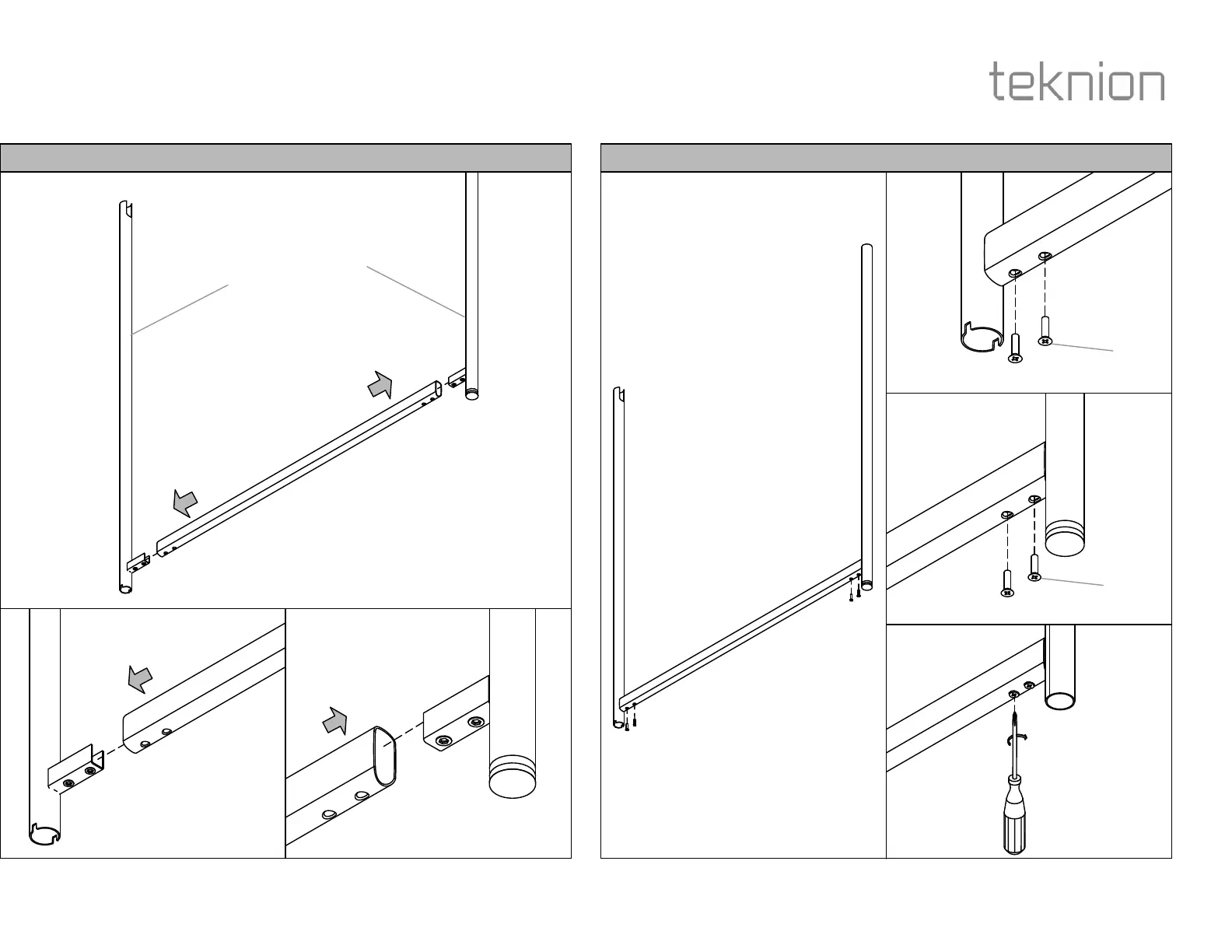

STEP 2: Secure and tighten the Horizontal Tubes to the Vertical tubes using the Machine
Screws provided.
STEP 1: Insert the Vertical Tubes into the Horizontal Tube.
routes Installation Guides
B2a
B3a
B2b
B3b
