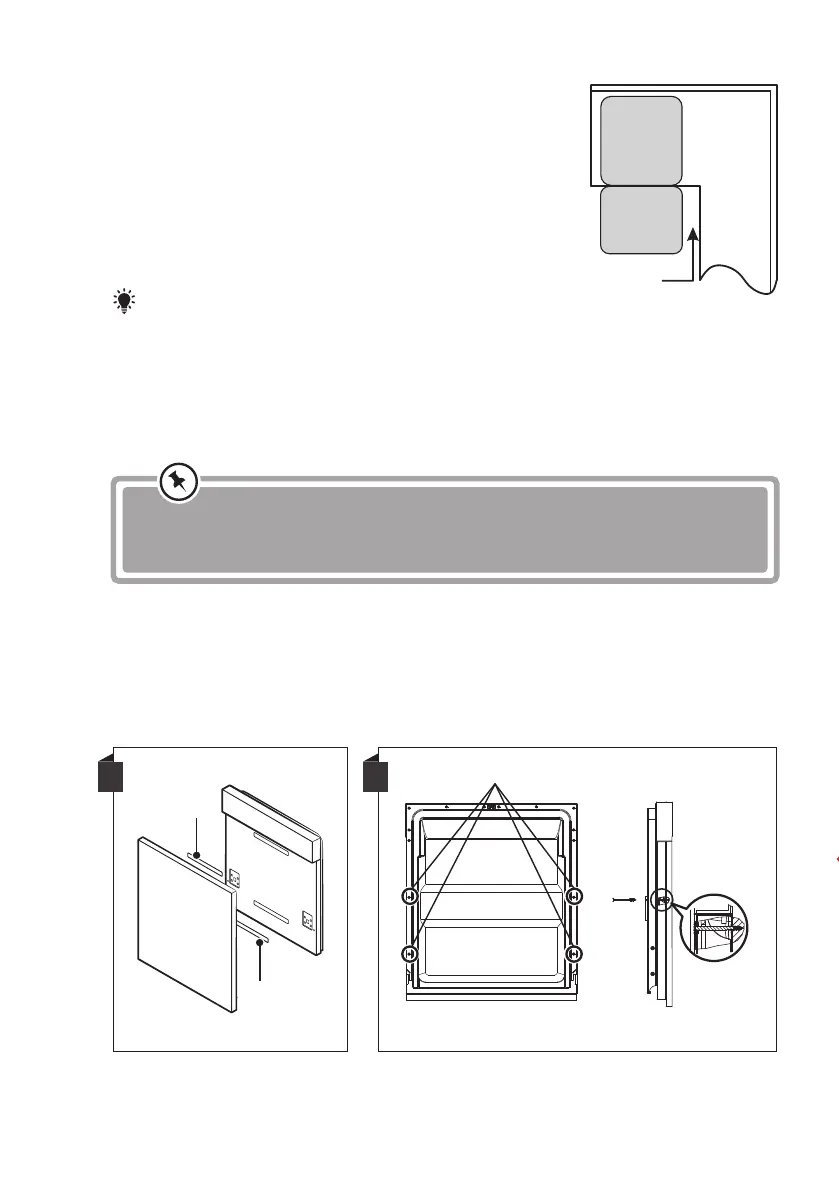

Step 2. Aesthetic panel's dimensions and installation
2. If dishwasher is in stalled at the corner of the cabinet,
there should be some space when the door is opened.
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
NOTE:
Depending on where your electrical outlet is, you may need to cut a hole in the
opposite cabinet side.
22
The aesthetic wooden panel could be processed according to the The aesthetic wooden panel could be processed according to the
installation drawings.installation drawings.
The aesthetic wooden panel could be processed according to the
installation drawings.
A
Magical paster
Magical paster
Magical paster A and magical paster B be disjoinedon ,magical paster A on the
aesthetic wooden panel and felted magical paster B of the outer door of dishwasher
(see figure A). After positioning of the panel , fix the panel onto the outer door by
screws and bolts (See figure B) .
Semi-integrated model
B
2.Pin up the four long screws
1.Take away the four short screws
滑动门时用此替换
Install the hook on the aesthetic wooden panel (see figure 4A) and put the hook
into the slot of the outer door of dishwasher (see figure 4B). After positioning of
the panel , press top of the aesthetic wooden panel to make sure that the plastic
hook are fastened.
BA
UP
DOWN
Check level
front to back
Check level
side to side
Step 4. Levelling the dishwasher
Dishwasher must be level for proper dish rack operation and wash performance.
1.
2.
3.
The maximum adjustment height of the feet is 50 mm.
NOTE:
22
