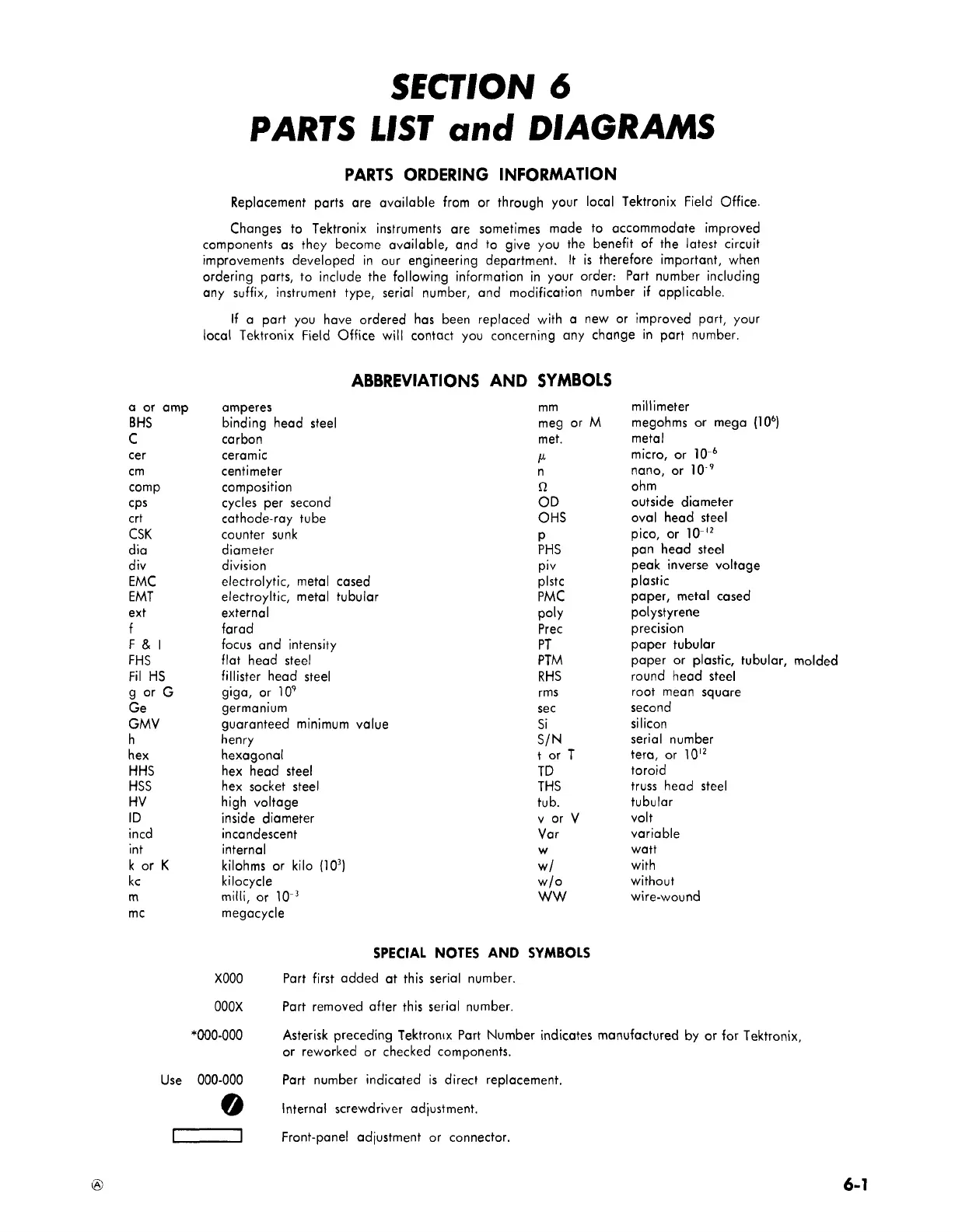

SECTION 6
PARTS LIST and DIAGRAMS
PARTS ORDERING INFORMATION
Replacement parts are available from or through your local Tektronix Field Office.
Changes to Tektronix instruments are sometimes made to accommodate improved
components as they become available, and to give you the benefit of the latest circuit
improvements developed in our engineering department. It is therefore important, when
ordering parts, to include the following information in your order: Part number including
any suffix, instrument type, serial number, and modification number if applicable.
If a part you have ordered has been replaced with a new or improved part, your
local Tektronix Field Office will contact you concerning any change in part number.
ABBREVIATIONS AND SYMBOLS
a or amp amperes
mm millimeter
BHS binding head steel
meg or M
megohms or mega (106)
C carbon
met. metal
cer
ceramic
A
micro, or 10"4
cm centimeter
n
nano, or 10 9
comp
composition a
ohm
cps cycles per second
OD
outside diameter
crt
cathode-ray tube
OHS
oval head steel
CSK counter sunk
P
pico, or 10~12
dia
diameter PHS
pan head steel
div division piv
peak inverse voltage
EMC
electrolytic, metal cased piste
plastic
EMT
electroyltic, metal tubular PMC
paper, metal cased
ext
external
poly
polystyrene
f farad Prec
precision
F & 1
focus and intensity
PT
paper tubular
FHS
flat head steel PTM
paper or plastic, tubular, molded
Fil HS
fillister head steel RHS round head steel
g or G
giga, or 109 rms
root mean square
Ge
germanium
sec
second
GMV
guaranteed minimum value
Si
silicon
h henry
S/N
serial number
hex
hexagonal
t or T
tera, or 1012
HHS hex head steel TD
toroid
HSS hex socket steel THS truss head steel
HV high voltage tub.
tubular
ID
inside diameter
v or V
volt
incd
incandescent
Var variable
int
internal w
watt
k or K
kilohms or kilo (103)
w /
with
kc
kilocycle
w/o
without
m milli, or 10~3
WW
wire-wound
me
megacycle
xooo
ooox
* 000-000
Use 000-000
o
SPECIAL NOTES AND SYMBOLS
Part first added at this serial number.
Part removed after this serial number.
Asterisk preceding Tektronix Part Number indicates manufactured by or for Tektronix,
or reworked or checked components.
Part number indicated is direct replacement.
Internal screwdriver adjustment.
Front-panel adjustment or connector.
6-1
