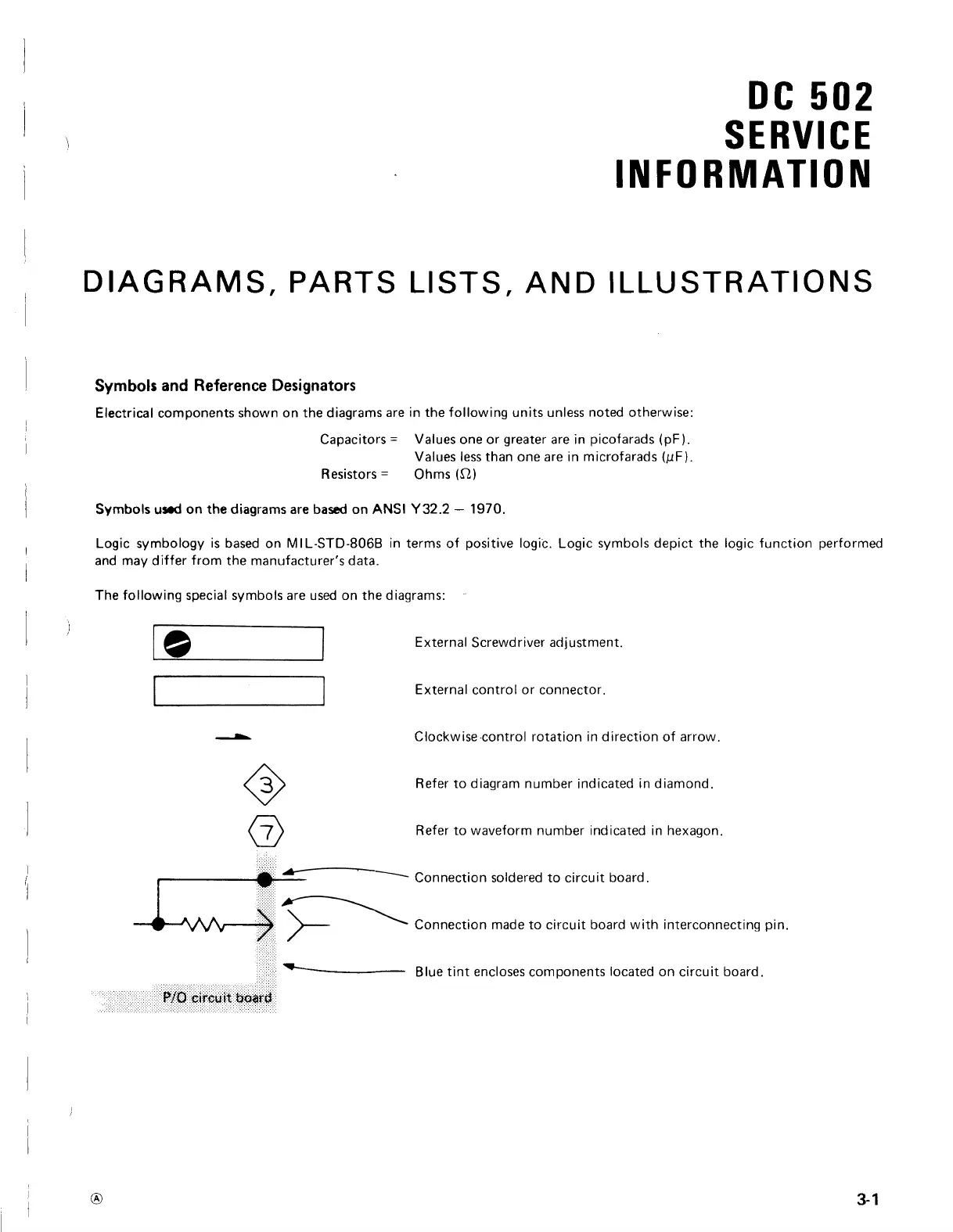

DC 502
SERVICE
INFORMATION
DIAGRAMS, PARTS LISTS, AND ILLUSTRATIONS
Symbols and Reference Designators
Electrical components shown on the diagrams are in the following units unless noted otherwise:
Capacitors = Values one or greater are in picofarads (pF).
Values less than one are in microfarads (µF).
Resistors = Ohms ()
Symbols used on the diagrams are based on ANSI Y 32.2 — 1970.
Logic symbology is based on MIL-STD-806B in terms of positive logic. Logic symbols depict the logic function performed
and may differ from the manufacturer's data.
The following special symbols are used on the diagrams:
External Screwdriver adjustment.
External control or connector.
Clockwise-control rotation in direction of arrow.
Refer to diagram number indicated in diamond.
Refer to waveform number indicated in hexagon.
— • — Wv
Connection soldered to circuit board.
Connection made to circuit board with interconnecting pin.
------ Blue tint encloses components located on circuit board.
F7O circuit board
3-1
