Tektronix DPO3000 Series Instruction Manual

Giving Demos of MSO Features

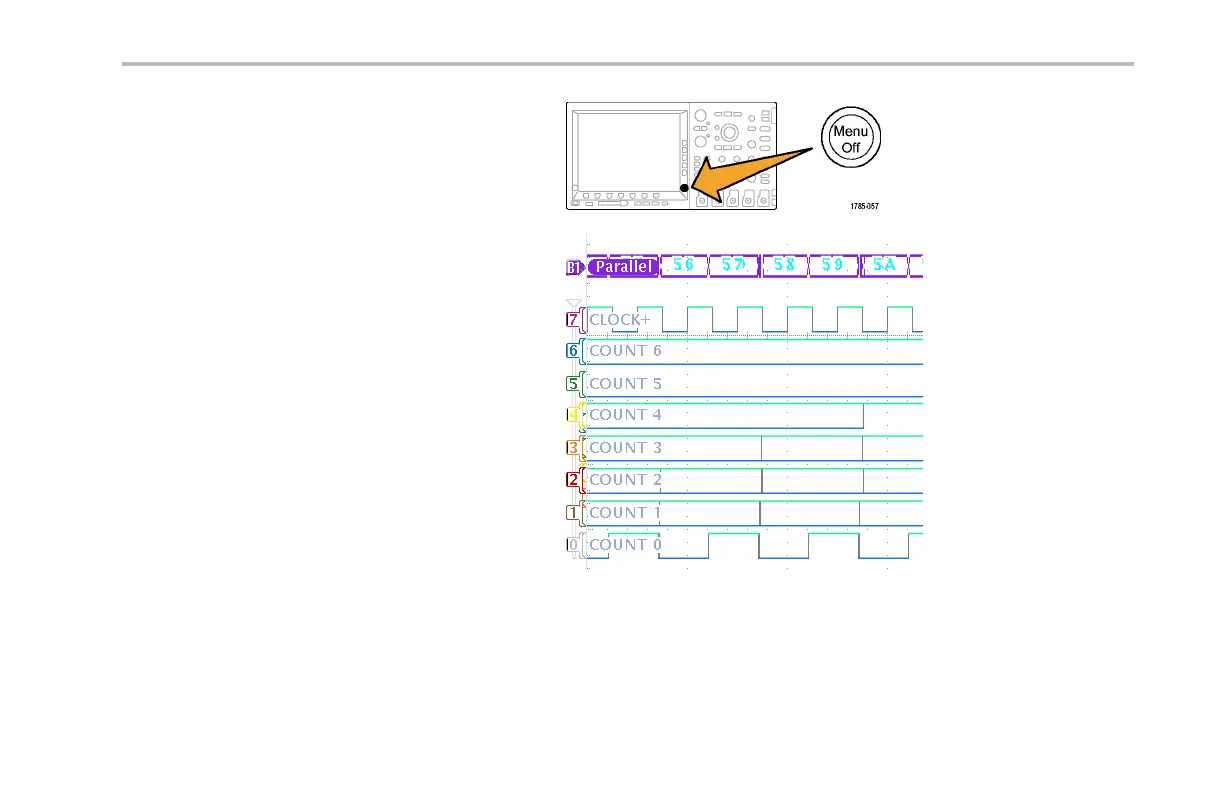

6. Push Menu Off to the lower-right of the display
to remove the side menu.
7. Turn knob a to move the parallel bus display
above the display of digital channels, so you
can more ea sily read the decoded bus.
Observe the decoded bus values on the
display. The bus transitions everywhere that
the data transitions.
Demo 2 Board Instruction Manua l 95
