Tektronix DPO3000 Series Instruction Manual

Giving Demos of MSO Features
16. As neede d, turn the pan (out er) knob a nd
navigate using the zoom window to bring
one of the white ed ges to center screen.
Alternatively, push the play b utton to do this.

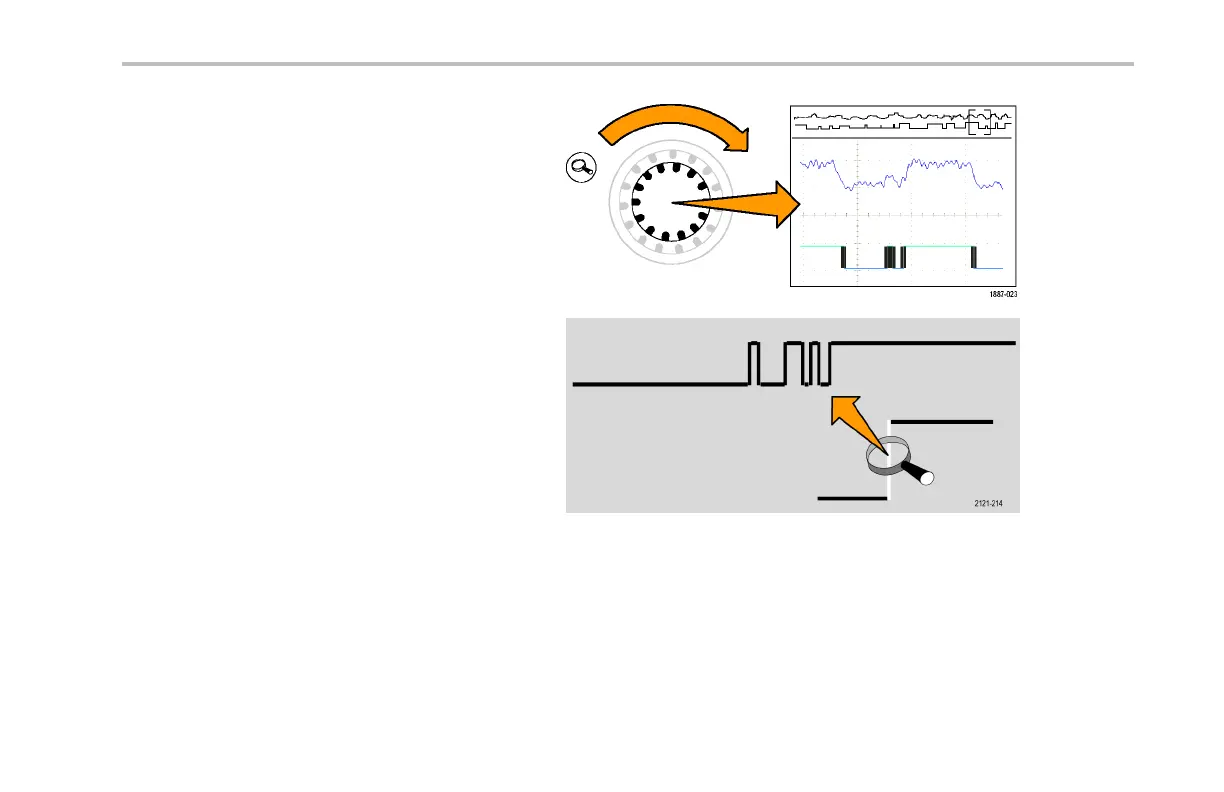

17. Turn the zoom (inner) knob of the Wave
Inspector to zoom in on one of the white
edges. Note you can now see a n arrow pulse
that you couldn’t see before you zoomed in.
Demo 2 Board Instruction Manua l 109
