W
avef
orms
2.

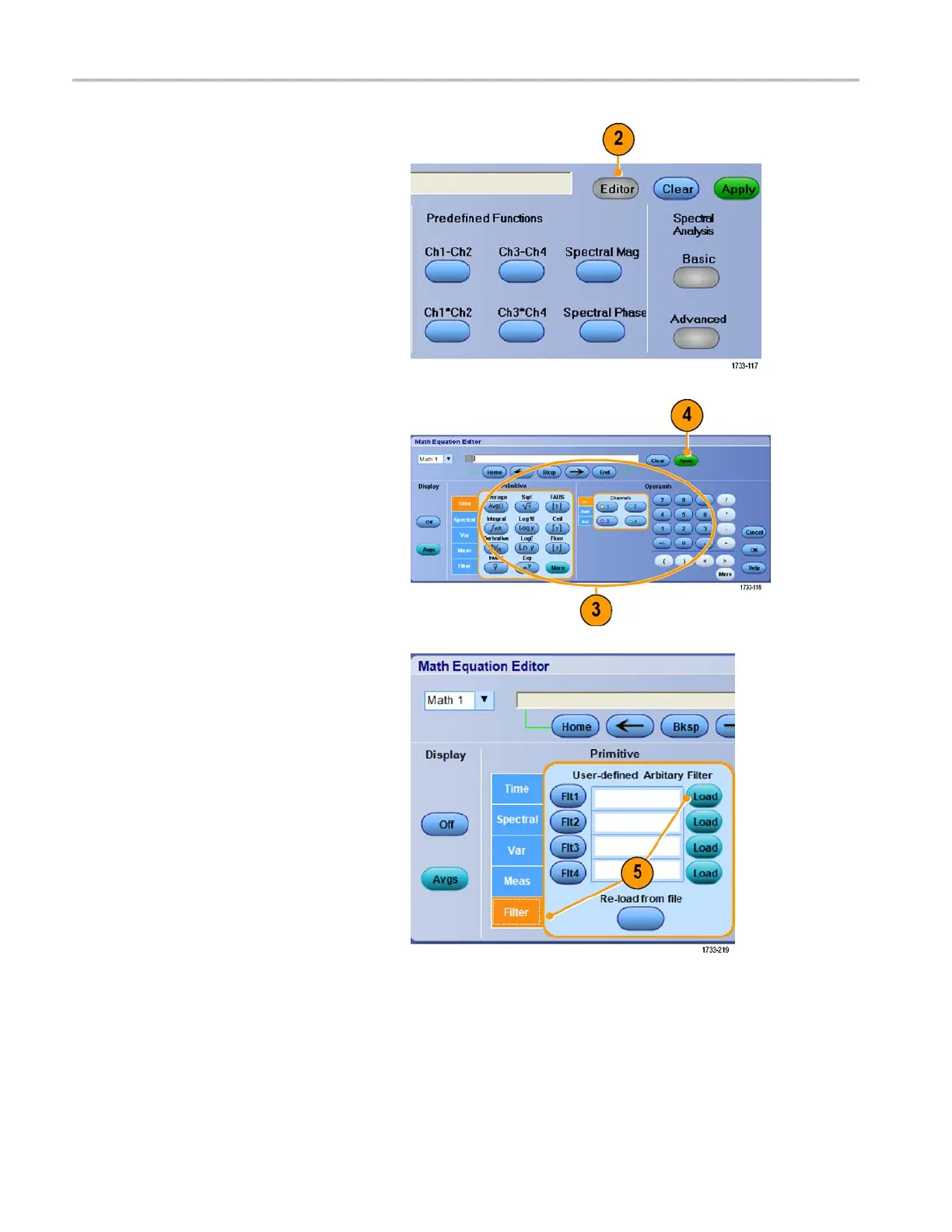

Click
Editor
.
3.
Bu
ild
yo
ur
advanced
math
waveform
expression
using
s
ources,
operators,
constants,
measurements,
variables,
and
funct
ions.
4.
When
you
h
ave
de
fi
ned
the
expression
to
your
satisfaction,
click
Apply
.
5.
T
o
add
your
own
fi
lter
,
click
the
Filter
tab.
Cl
ick
Load
.
126
MSO70000/C,
DPO/DSA70000B/C,
DPO7000,
and
MSO/DP
O5000
Series
U
ser
M
anual
146
