MagniVu setup Using MagniVu

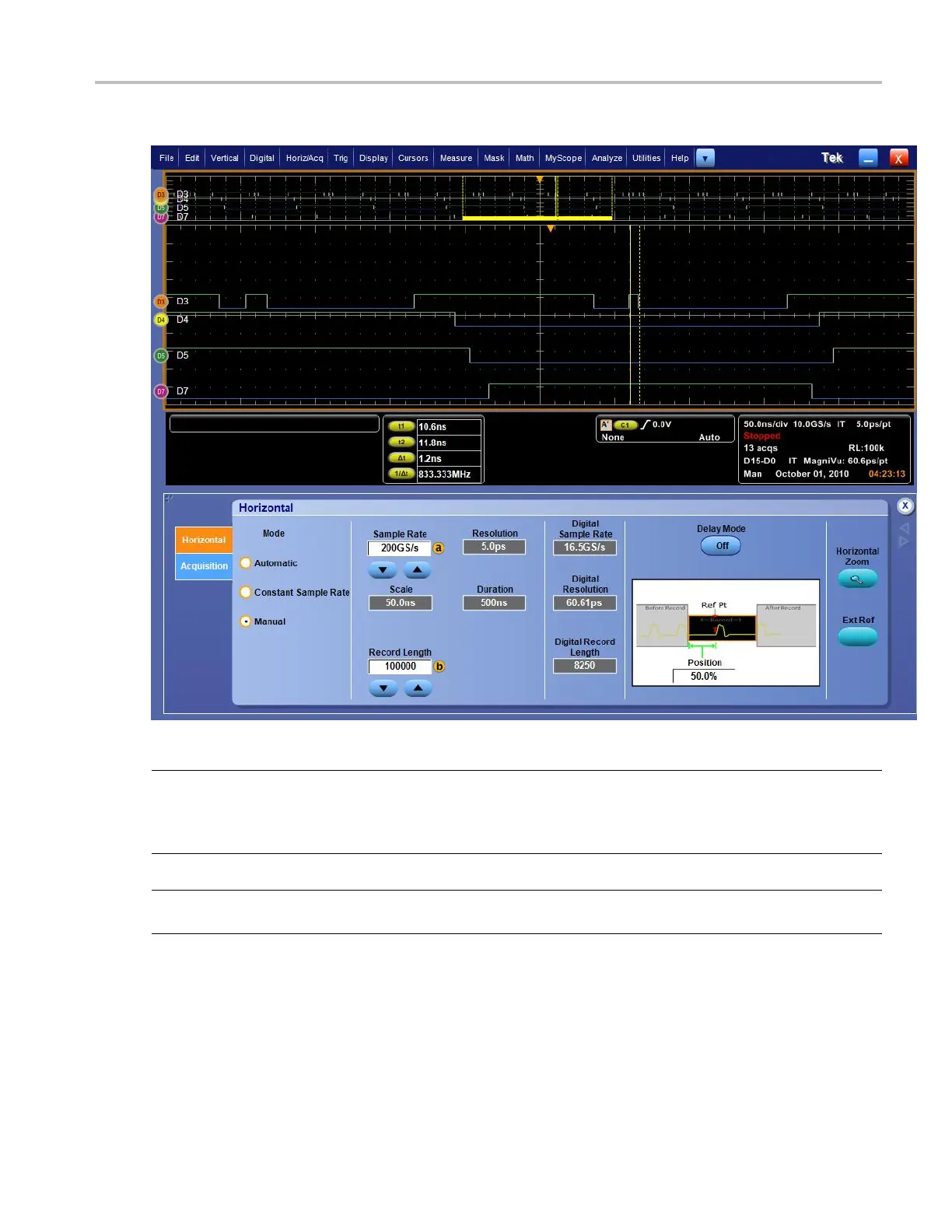

With MagniVu option enabled (the Sample Rate and Resolution values set):
NOTE. The MagniVu record must always contain the trigger. If the trigger point is moved prior to the
display region using Horizontal Delay, then the MagniVu record will not be available. In most of these
cases, you can find the digital record by looking for the digital signal in the upper o verview and panning
accordingly.
NOTE. You should turn on MagniVu when light gray shading is displayed to indicate the uncertainty of the
edge position. If the shading is not displayed, you do not need to use MagniVu.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 161
