Analyzing waveforms Select the search source
To use
1. In the Type-Source table, identify the search Type you want to use; then click the right arrow for
that search type under Source.
2. After the Source Selection window opens, identify the Channel, Source, Clock, or Logic parameters to
be used in the search.
3. Click OK
Behavior

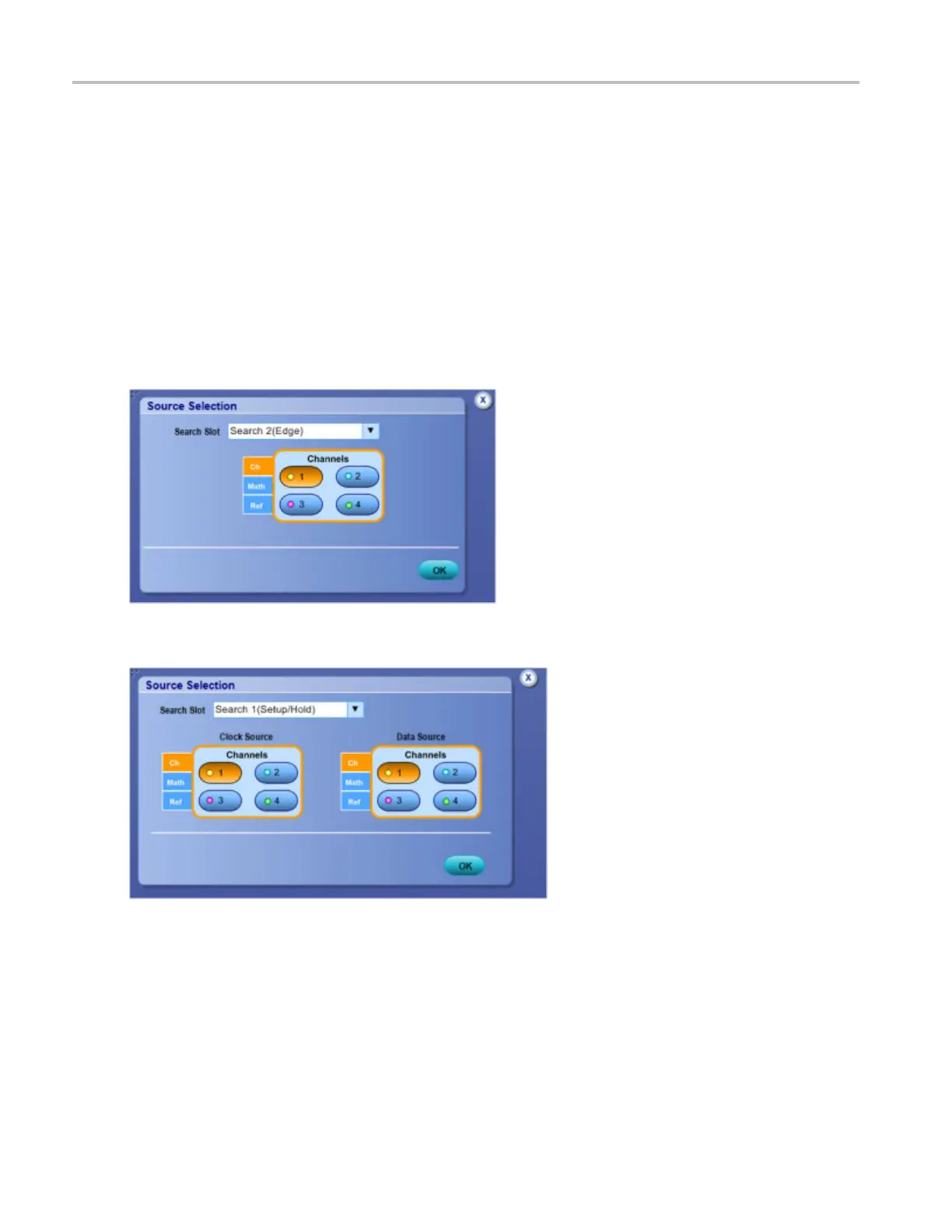

Use the single Source Selection window to set the Channel parameters for an Edge, Glitch, Runt,
Transition, Width, Window, or Timeout search.
Use the dual Source Selection window to set the Clock and Data Source parameters for a Setup and
Hold search.
Us
e the Logic Source Selection window to set the threshold parameters for a Pattern or State logic search.
302 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
