Analyzing waveforms Set up USB search parameters

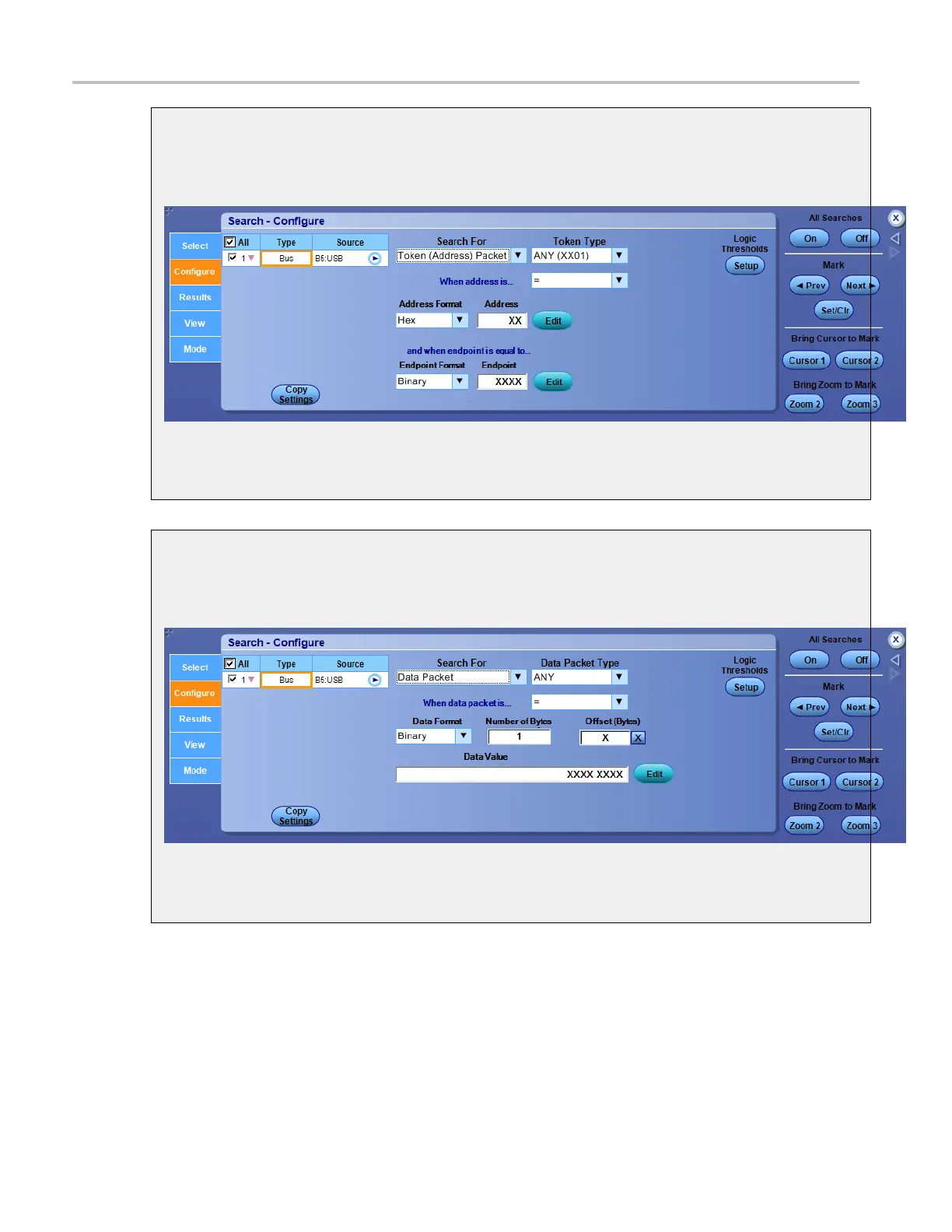

Search for token (address) packet

The token address packet mode options available in Search For Token (Address) Packet are Token

Type, Address

Format, Address, Endpoint Format, and Endpoint.

Select the Token Type, Address Format, When address is, and Endpoint Format from the drop-down

lists. Click Edit to enter the address and e ndpoint v al ues. Click Setup to adjust the logic thresholds.

Search for data packet

The data packet options available in Search For Data Packet are Data P acket Type, When data packet

is. Nu

mber of Bytes, Data Format, Offset, and Data Value.

Select the Data Packet Type, When data packet is, Data Format, and Offset from the drop-down lists.

Click Edit to enter the data value. Click Setup to adjust the logic thresholds.

334 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
