Analyzing waveforms Set up MIPI search parameters

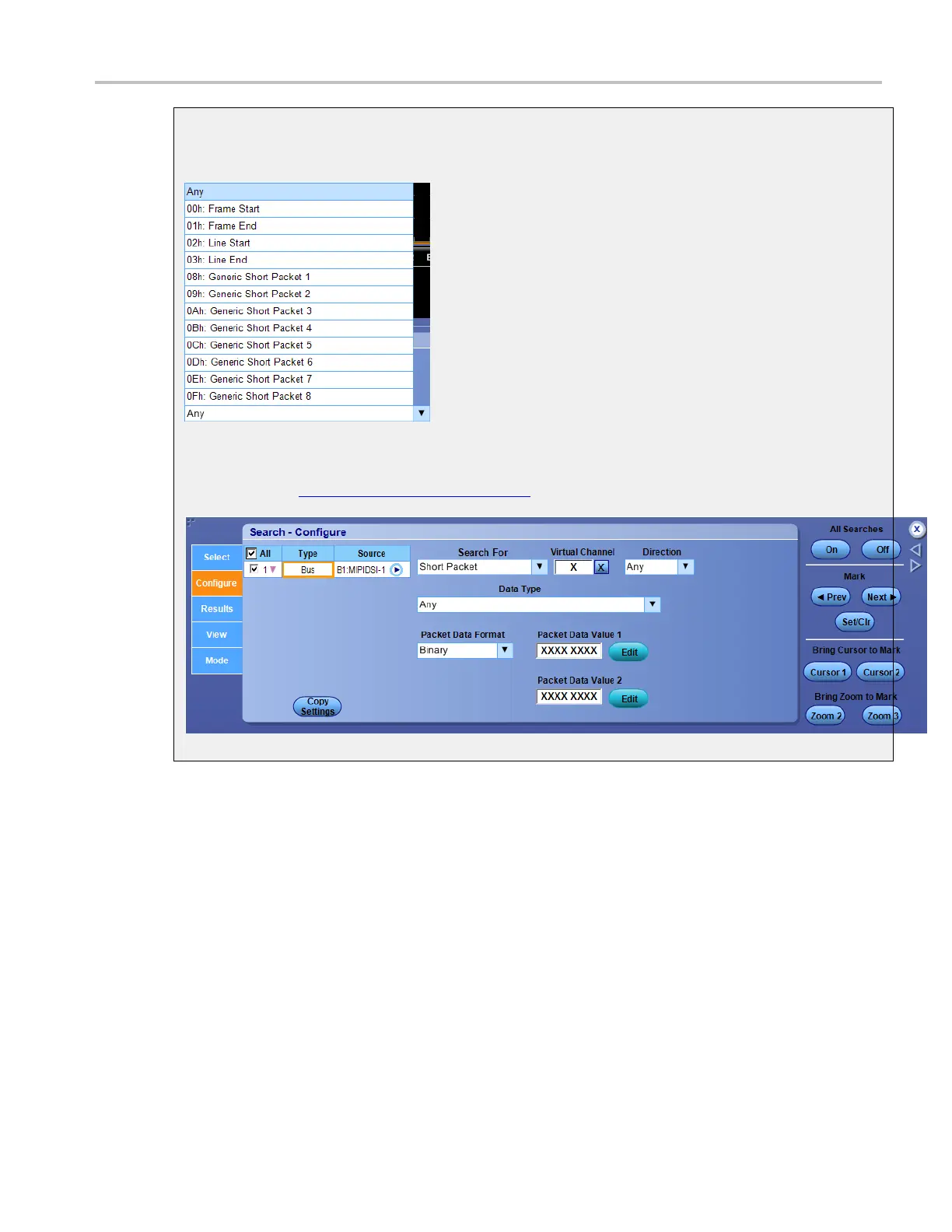

Search for short packet

The data type options available in Search On Short Packet are as follows:

The Search For Short Packet window allows you set the Virtual Channel, Direction, Packet Data

Format, and the Packet Data Value

(see page 938).

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 341
