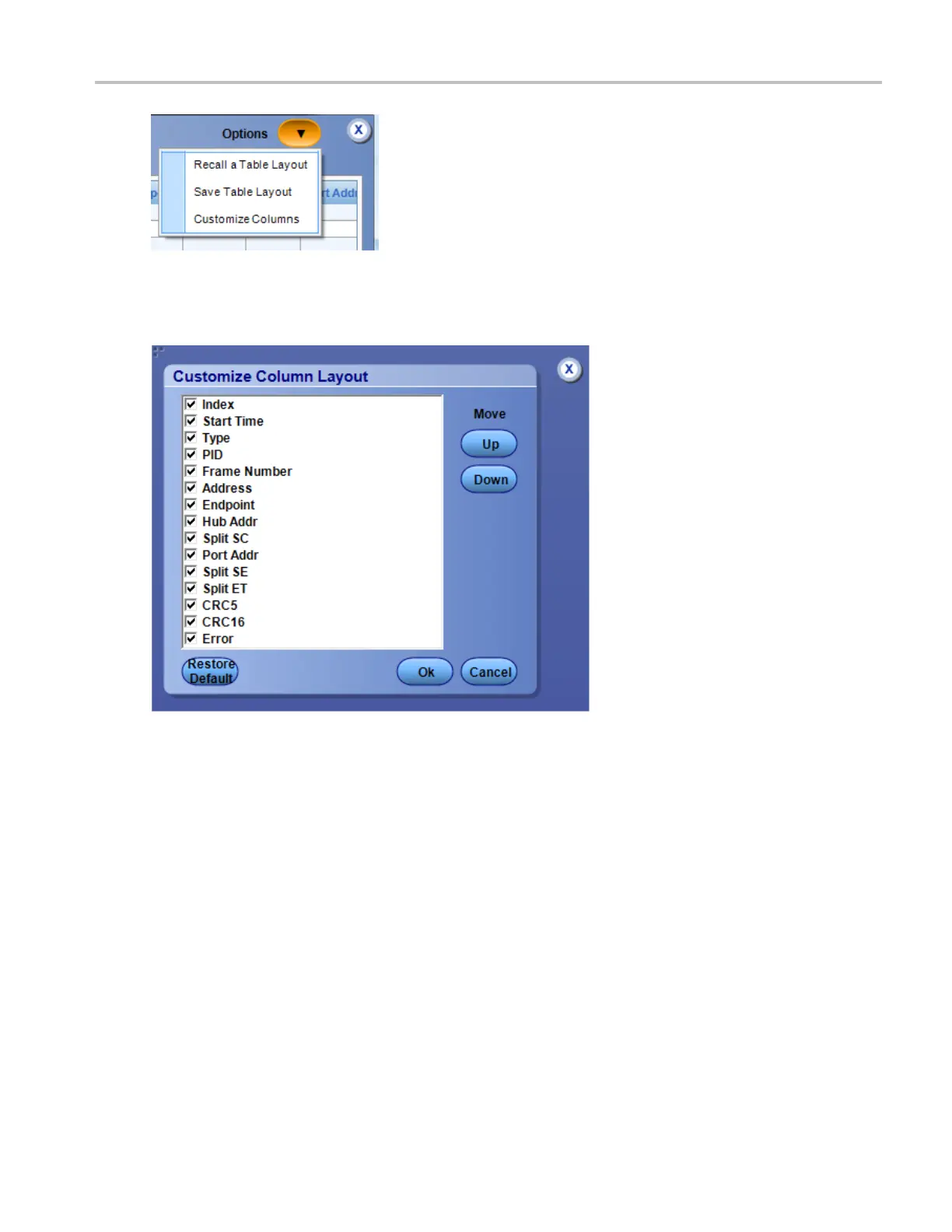

Analyzing waveforms View the protocol decode e vent table

In the Custo

mize Columns Layout window, you can move columns, select the columns you want

displayed, or restore the defaults.

You can also drag columns to new locations and resize them using a mouse. Right clicking on a column

heading i n the table, also lets you select the columns you want displayed.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 373
