Trigger setups Set up a USB bus trigger

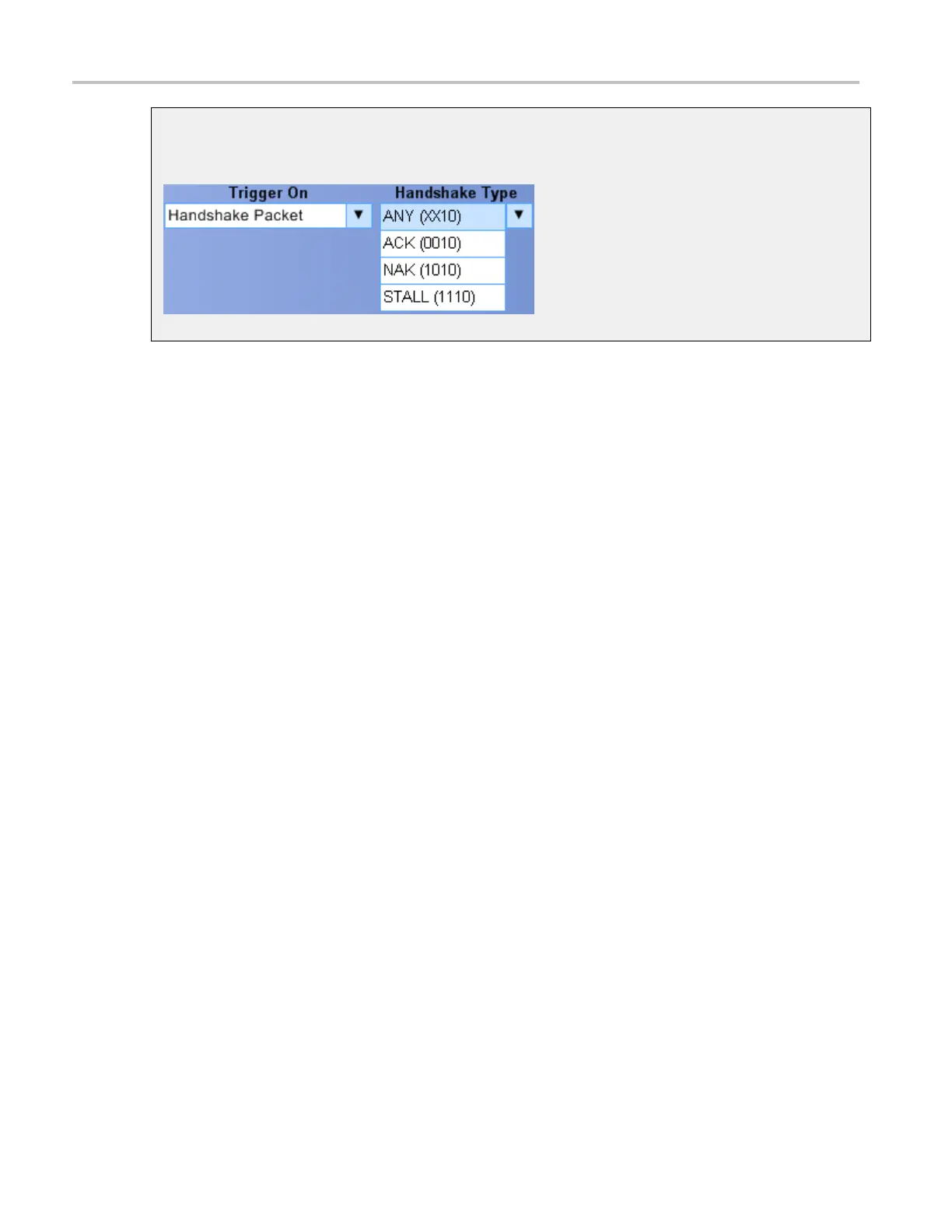

Trigger on Handshake Packet

The handshake type options available in Trigger on Handshake Packet are as follows:
