How to ? Mark all trigger events

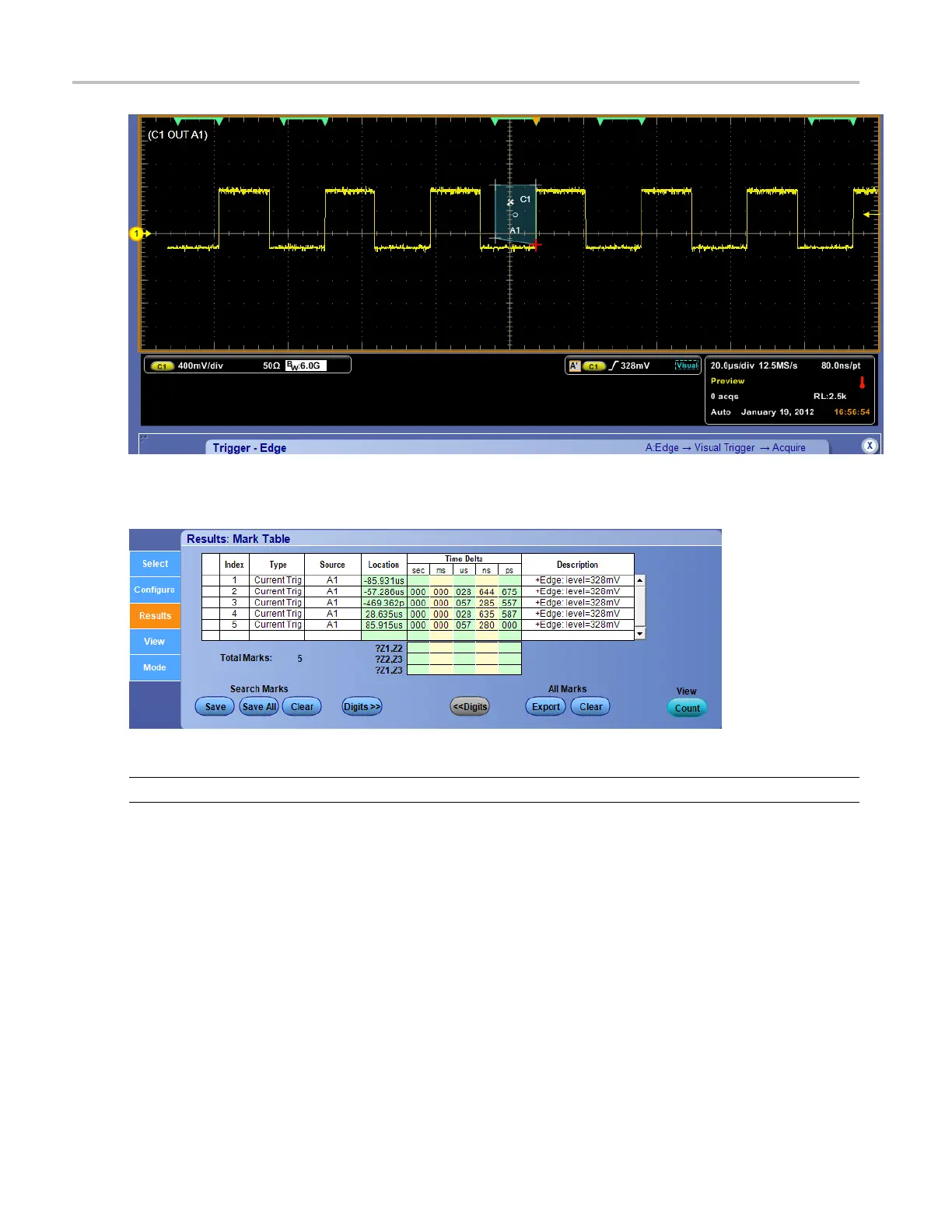

9. The results of the edge trigger and the v isual trigger are also displayed in the search results.

NOTE. Mark All Trigger Events in Record is not available with some trigger types.

660 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
