Controls and connectors Rear and side panel connectors

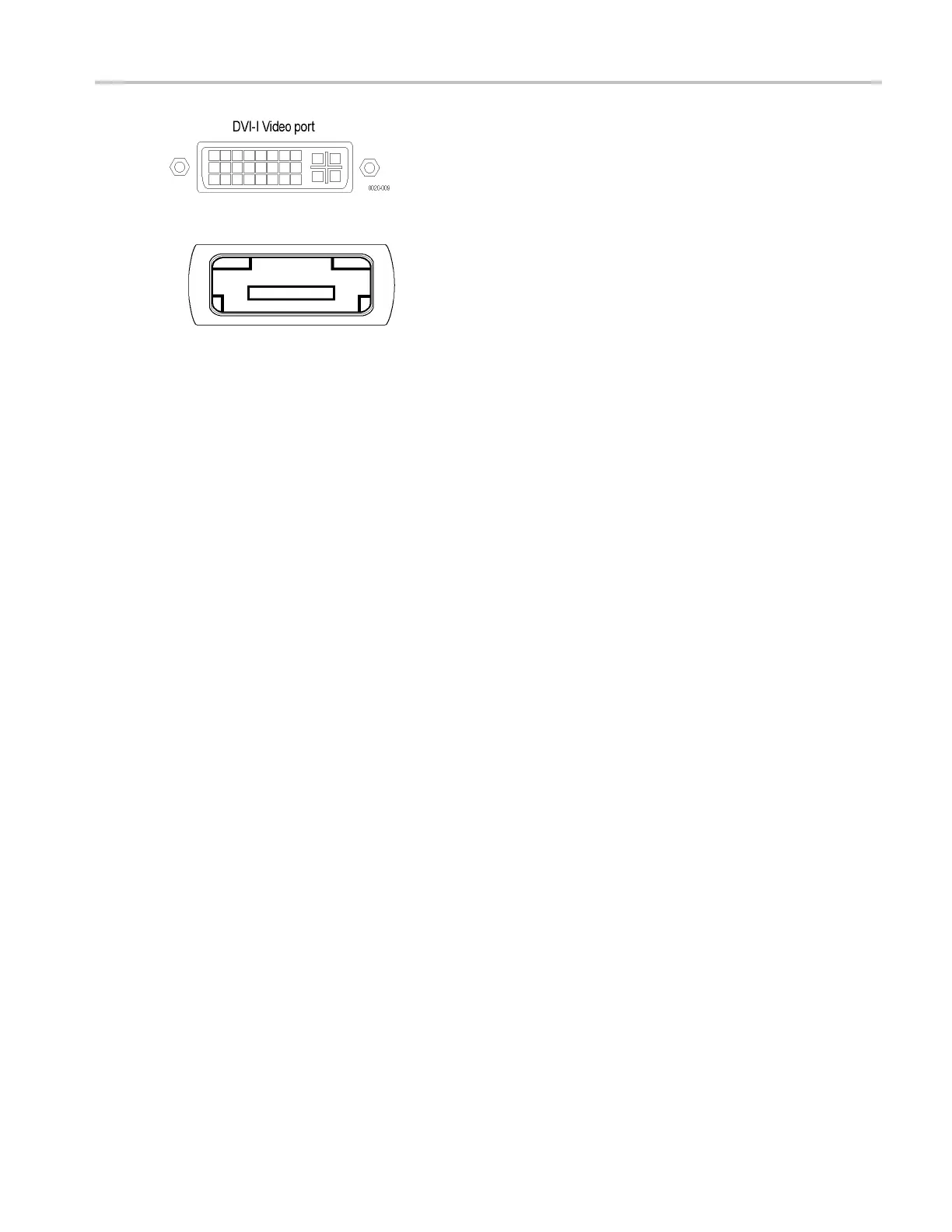

Use the DVI-I Video port to send the instrument display to a projector or to

a ﬂat-panel LCD

monitor.

NOTE. This port is available only on DPO7000C, DPO70000C/D,

DSA70000C/D, and MSO70000C Series instruments.

Use the eSATA port as an external interface for SATA support devices.

NOTE. This port is available only on DPO7000C, DPO70000C/D,

DSA70000C/D, and MSO70000C Series instruments.

xxx

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 69
