Tektronix MSO5104B

To use. For information on the controls, click the buttons.
■
Trigger Type
■
Settings
■
Clock Source
■
Data Source
■
Coding
■
Standard
■
Bit Rate
■
Format
■
Data / Clock Levels
■
Edit
■
Trigger On
Behavior. You can use this trigger to analyze NRZ patterns found in serial bit streams. Functionality includes triggering on up to
64 bits and recovery on clock data up to 3.125 GB/s, for MSO/DPO70000C/D and DPO7000C models.
If you select the same clock and data source, or if the clock source is R Clk, only one level is available for the data source.

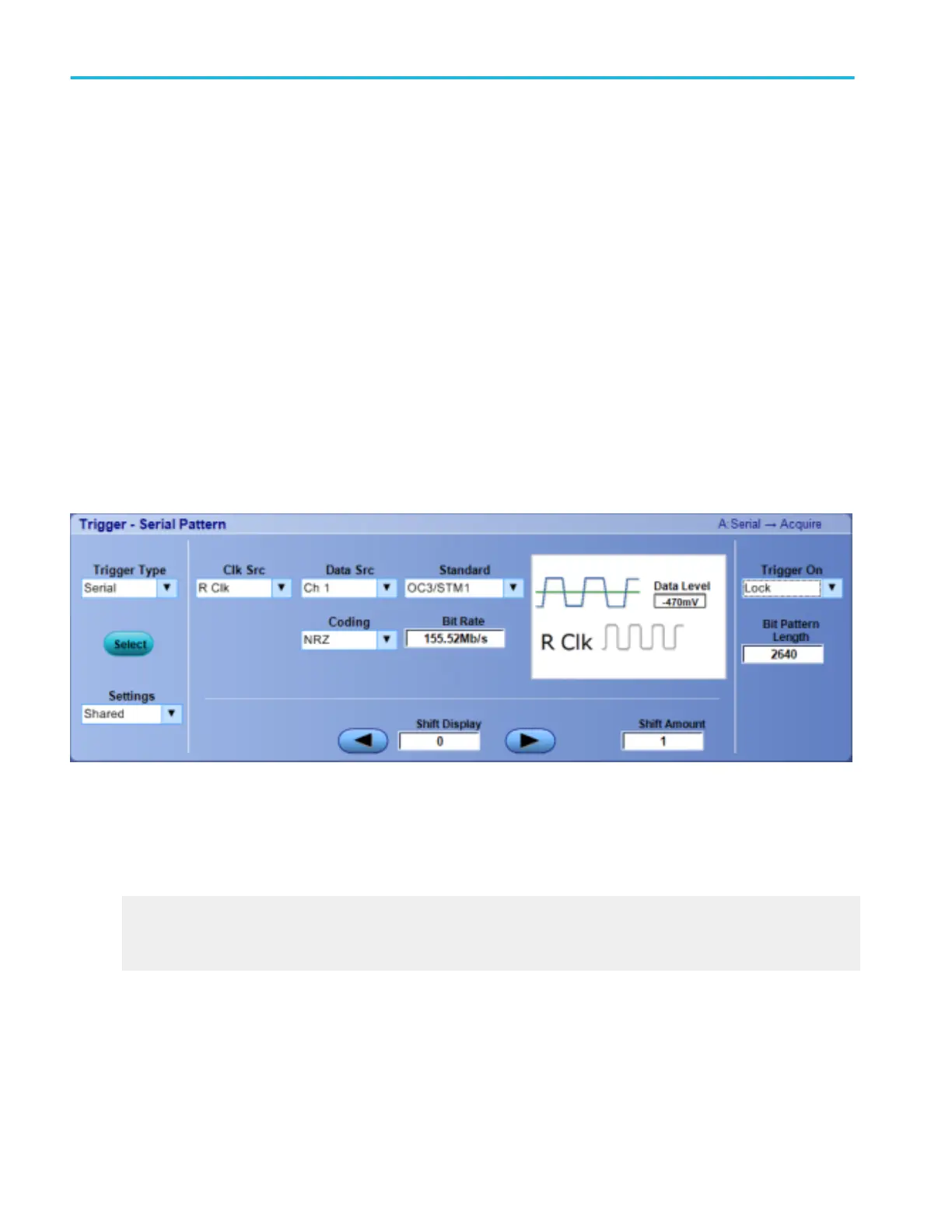

When you click on the trigger window controls, the trigger graphic shows the trigger sequence.
Trigger graphic
The trigger graphic displays a visual indicator of the trigger criteria. Depending on the trigger type, the instrument will update the
graphic as you define the trigger parameters.
Set up a setup and hold trigger
From the Trig menu, select Setup/Hold Setup.
Overview. Use the controls in this window to set up the Setup and Hold violation trigger parameters.
Trigger setups
424 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
