TDS Family Oscilloscope Programmer Manual

2–127

FILESYSTEM:COPY YOURDIR",fd0:/MYDIR"

copies the files in the YOURDIR directory in the current directory to the MYDIR

directory on the fd0: drive.

FILESystem:CWD

File System Only

Sets or returns the current working directory (CWD) path.

File system

FILESystem:CWD <directory path>

FILESystem:CWD?

<Space>

FILESystem

CWD

<directory path> is a quoted string that defines the directory name and path.

FILESYSTEM:CWD fd0:/MYDIR"

will define fd0:/MYDIR as the current directory.

FILESYSTEM:CWD?

might return fd0:/MYDIR if that is the current directory.

FILESystem:DELEte (No query form)

File System Only

Deletes a named file.

File system

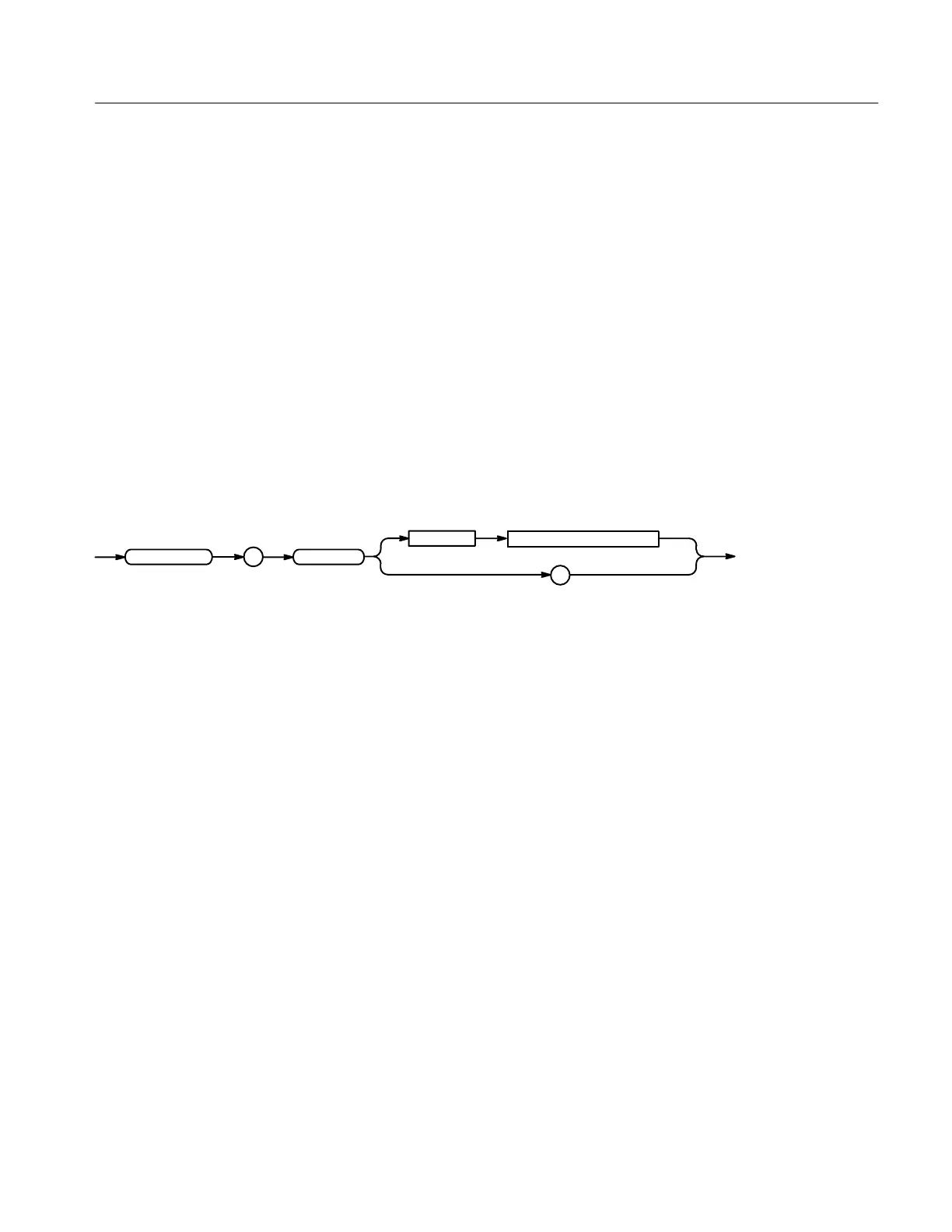

FILESystem:DELEte <file path>

Group

Syntax

Arguments

Examples

Group

Syntax
