Saving Waveforms and Setups
3–116
TDS 684A, TDS 744A, & TDS 784A User Manual
Note that in Figure 3–67, the main menu items Ref2, Ref3, and Ref4 appear
shaded while Ref1 does not. References that are empty appear shaded in the
More main menu.
To recall a waveform from disk to an internal reference memory, press SAVE/
RECALL WAVEFORM Recall Wfm To Ref (main) Recall From File
(side) Then use the general purpose knob to select the exact file from the
resulting scrollbar list. Only files with .WFM extensions are displayed. Finally,
press To Ref1, To Ref2, To Ref3, or To Ref4 (side) to complete the operation.

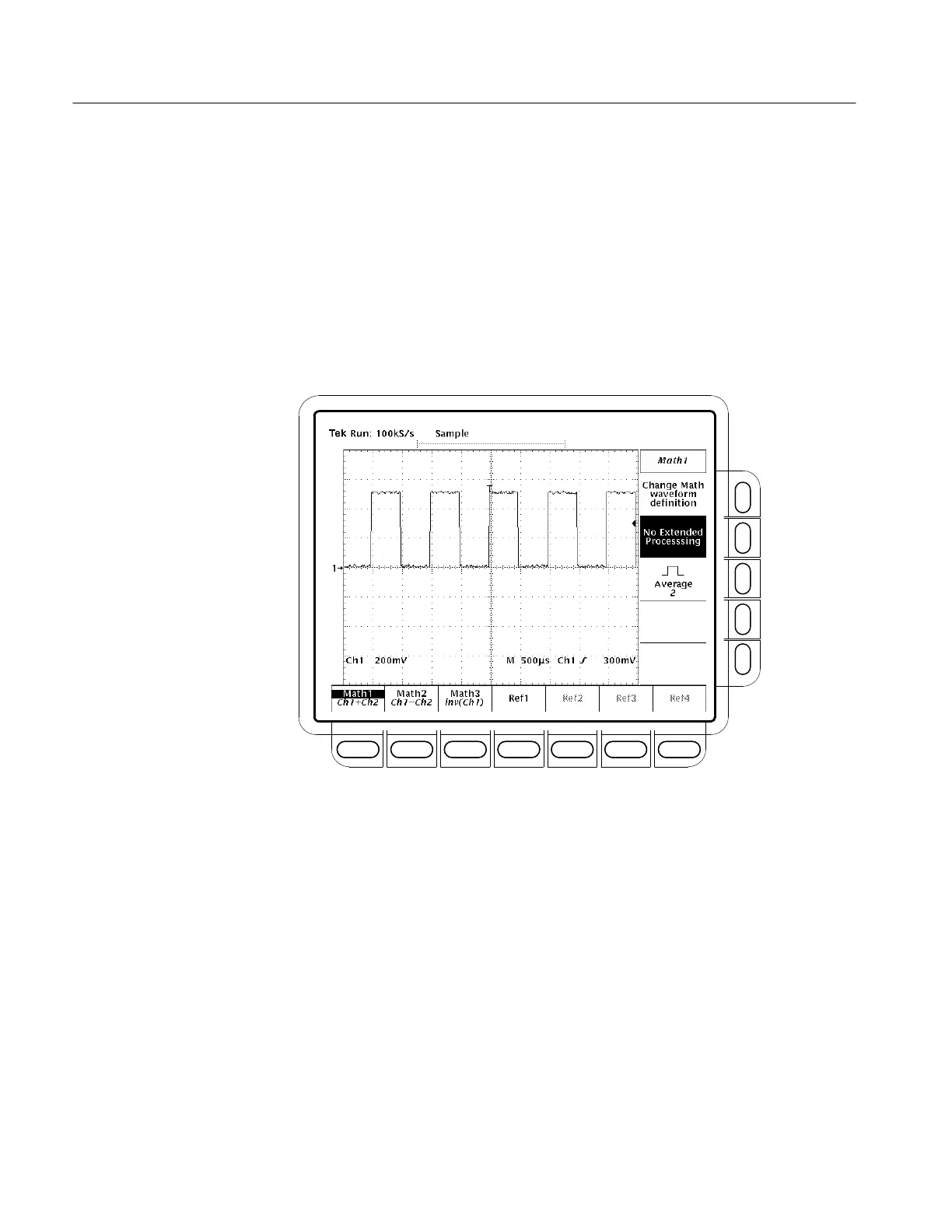

Figure 3–67: More Menu
To use autosave, press SAVE/RECALL WAVEFORM Autosave (main)
Autosave Single Seq ON (side).
Also turn on Single Acquisition Sequence in the Acquire menu. (See Stop After
on page 3–25.)
To disable this feature, simply press Autosave (main) Autosave Single Seq
OFF (side).
If you enable both autosave and single sequence, the oscilloscope will save all
live channels to reference waveforms at the completion of each single sequence
event. All previous reference waveform data will be erased.
To Recall a Waveform
From Disk
To Enable Autosave
