MAGNETIC LIMIT SWITCHES (fig. G)
These gearmotors come completewithtwo brackets with magnets (15 fig.A) and the relative sensor,fittedabove the pinion (2
fig.A).
Fitthefixingstudboltsand fit thetwobracketstemporarilytotheoppositeendsofthe rack(fig.G).
Perform aseriesof checkswith themotorreleased,moving thegate byhand.
- withthegateclosed,themagnetmustbefacingthe sensor
- openthegate andcheckthesame situationwith theopeningmagnet.
- the gapbetweenthemagnet andthesensormustnotexceed10mm(fig.H)
- the magnetic limit switch must not be tripped when the gate reaches the mechanical stop; this should occur at least 10 mm
earlier.
Do not finallytightenthe limitswitchbrackets; wait for the first operating tests. Itmaybenecessary to correctthe positionsdue
tothe motorspeedorgate inertia.
Warning! The two magnets are fitted on the bracket in a position that enables their recognition by the ECU.
Dismantlingandswappingtheposition ofeithermagnetmayimpairprogramming and/oroperation.
Warning! The use of magnetic or electric limit switches is not an alternative to the installation and maintenance of
mechanical limitstops forthegate.Thesedevicesmustrestrictthegate's maximumtravel inallsituations.
GB
GEAR MOTOR RELEASE AND LOCK PROCEDURE
These two operations are required only in the event of a fault or power failure, and the user or assigned personnel must be
trainedbytheinstaller, whoshould provide a copyoftheseinstructionsto bekeptwith care togetherwiththereleasekey.

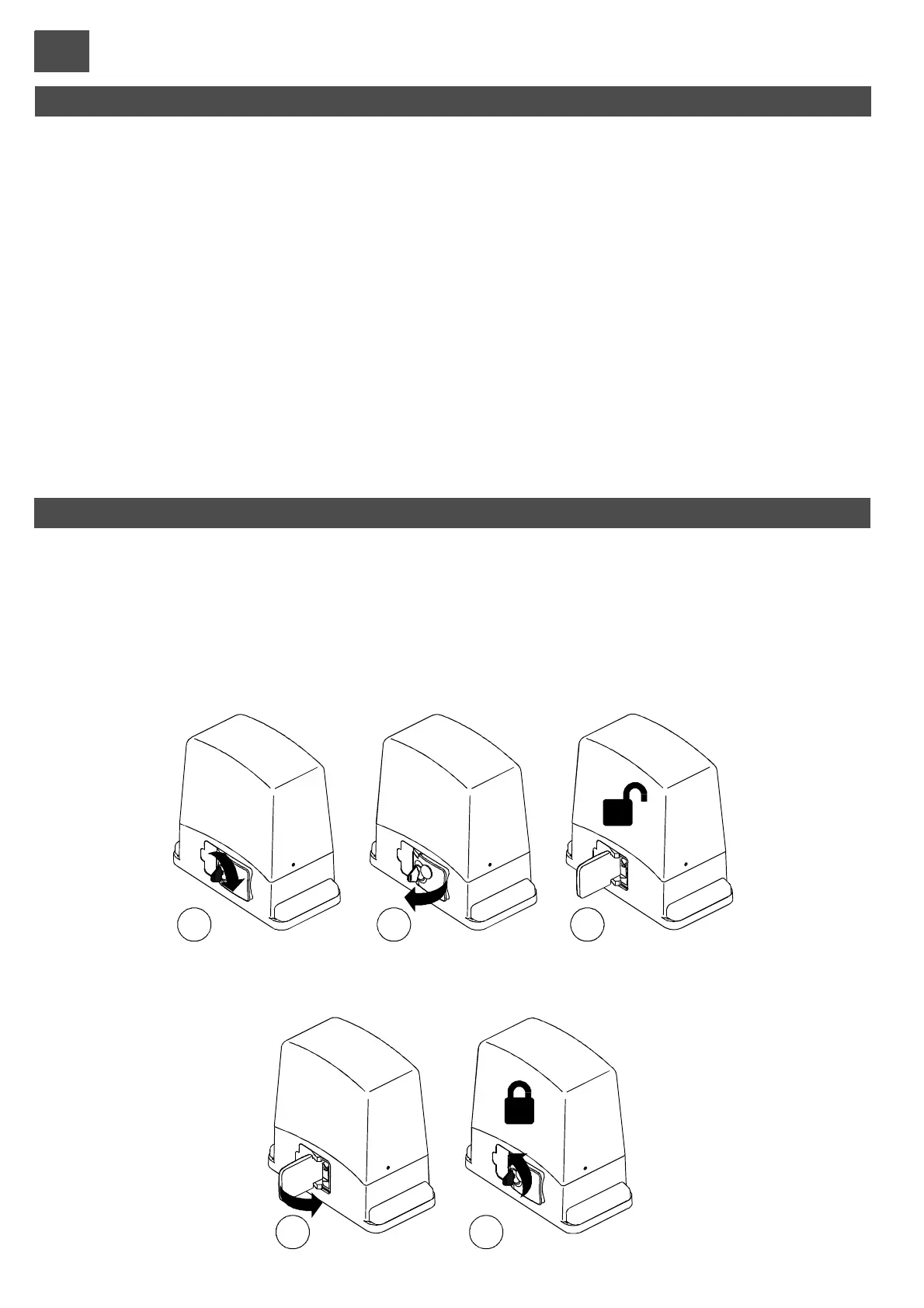

1) insert the key and turn clockwise 2) pull the lever through approx. 90° 3) the motor is released and the leaf can
bemovedmanually.To keepthe leafblocked,proceed asfollows.
3) close the lever 4) turn the safety key anti-clockwise; the gearmotor is then locked and the leaf can only be moved
electrically.
Before performing either of these procedures, ensure that the power supply is disconnected from the entire
automation,evenin theeventofa powerfailure.
RELEASE:
LOCK:
1 2 3
3 4
37
