NC
Fig. N
These dip-switches are used to disable the inputs of safety devices which are not connected.
1 2
N
L
50/60Hz
230V
T2A 230V
FUSE 5X20
23
22
21
3
3
4
4
11 12 13 14 15 16 17 18 19 20
12 12
12 12
13 13
14 14
J2 Output connector J1
J3 Input connector
24V
24V US1 24V
US1*
24V
FT
24V
5
5
6
6
7
7
8
8
9
9
10
10
na
DC Power Supply
Antenna
Function
n. Off On Description Notes
OFF
OFF
ON
ON
With closing sensitive edge installed
With opening sensitive edge installed
Closing sensitive edge input disabled. Warning! Terminal no. 13 must not be
connected.
Opening sensitive edge input disabled. Warning! Terminal no. 14 must not be
connected.
BSC
BSA

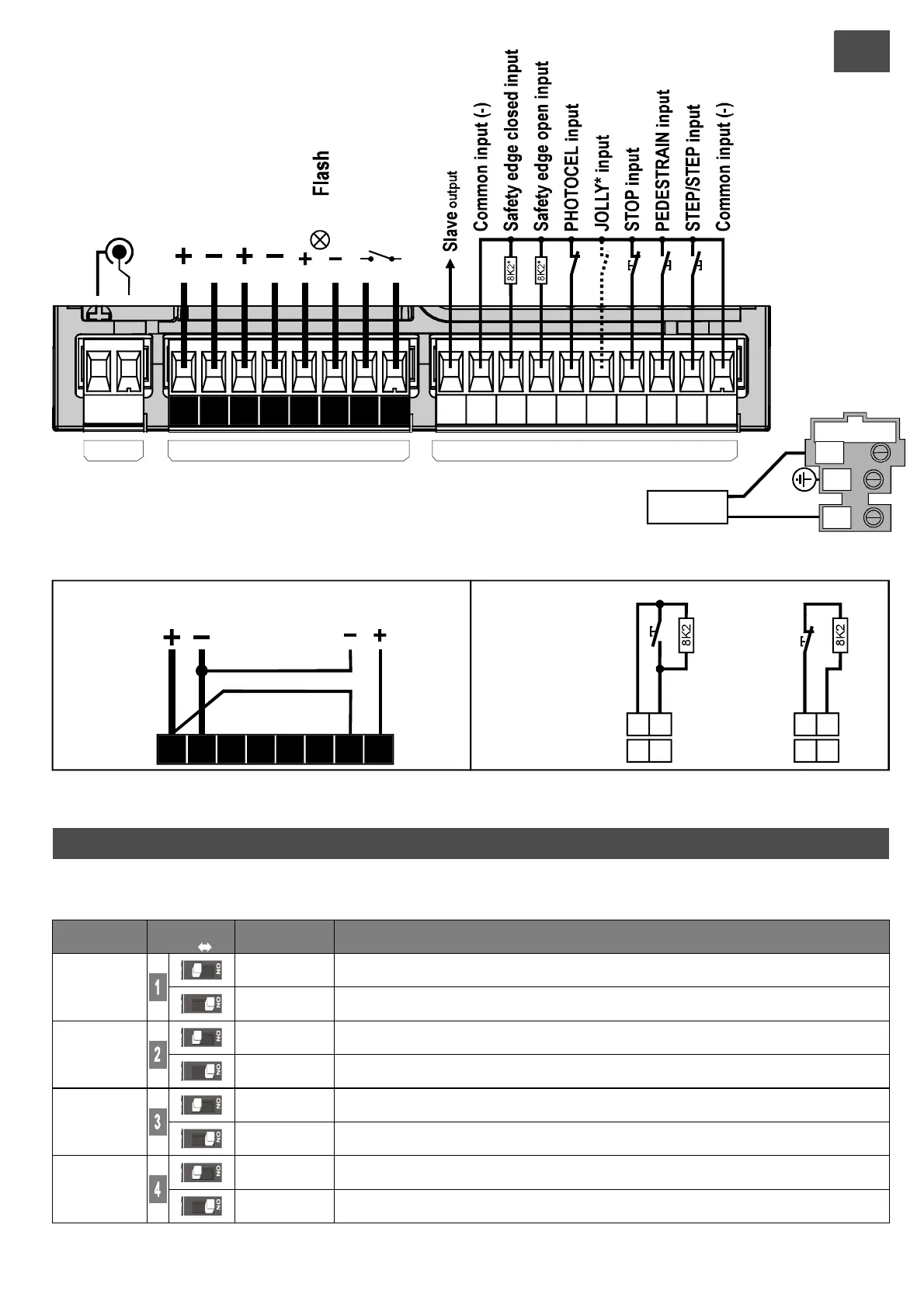

SAFETY DEVICE DISABLING DIP-SWITCHES
OFF
ON
With photocell installed
Photocell input disabled. Equivalent to connecting terminal no. 15 to the common
FT1
OFF
ON
With STOP button installed
STOP input disabled. Equivalent to connecting terminal no. 17 to the common
STP
40
