Telefunken Alchemy Series User Manual

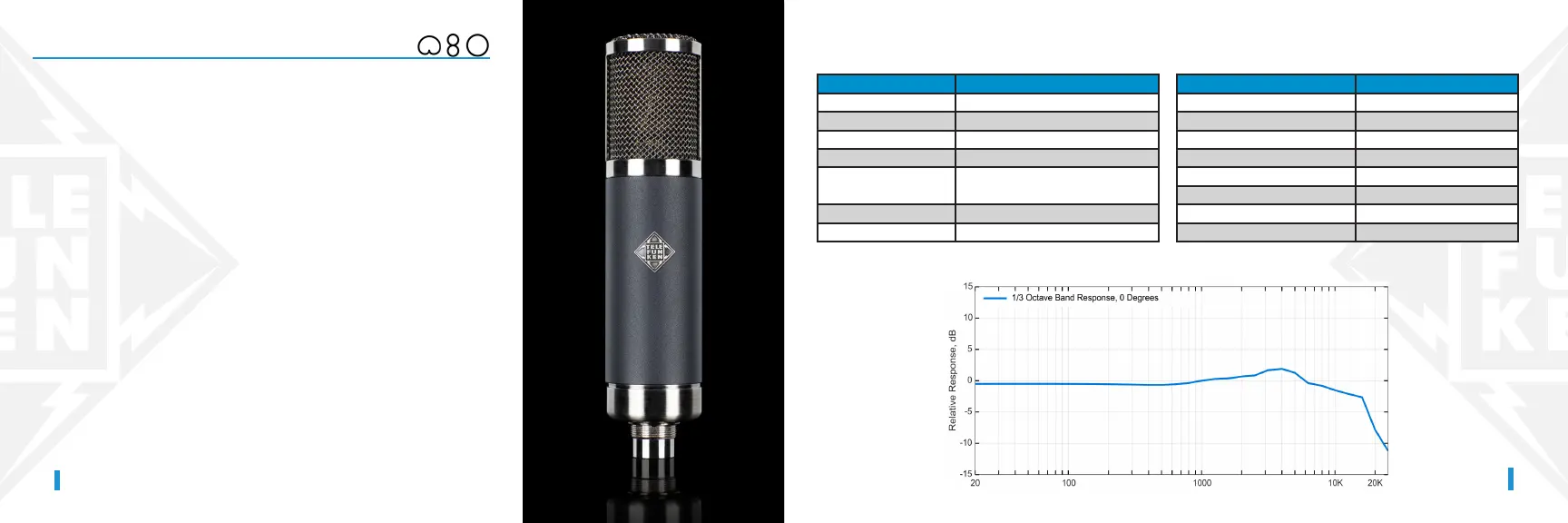

TF47
Technical Specications
The TF47 is a new design based on the “German” sound, drawing
inspiration from the historic U47 and M49. With a deep low end
and a forward midrange, the TF47 is excellent for adding depth and
presence to any source. These characteristics make it especially ideal
for recording vocals, guitar amps, and drums.
Key Features
• 3 polar pattern selection
• Designed and hand assembled in the USA
• Full low end and forward midrange, reminiscent of the U47
• Smooth and detailed top end
• Distinct antique nickel nish
• K47-style capsule and BV8 transformer
Recommended Applications
• Vocals: R&B, Rap, Rock, Soul
• Drums: Toms, Kick Out, Room
• Percussion
• Upright Bass
• Cello
• Trombone
Specication TF47
Type Vacuum Tube Condenser
Polar Pattern Cardioid, Omnidirectional, Figure-8
Frequency Range 20 Hz - 20 kHz, ±3 dB
Power Source External Power Supply
Capsule TK47 - Center Terminated Large
Diaphragm
Tube NOS Philips/Raytheon 5840W
Transformer TELEFUNKEN Elektroakustik BV8
Specication TF47
Sensitivity 22 mV/Pa, ±1 dB
THD at 1 kHz, 1 Pa (Amplier) < 0.3%
Output Impedance < 300 Ω
Maximum SPL (for 1% THD) 125 dB
S/N Ratio 84 dBA
Self-Noise (Amplier) 10 dBA
Dimensions 200 mm L x 46 mm Dia
Weight 710 g
10 TELEFUNKEN Elektroakustik 11Alchemy Series
