Telestar TROTTY - Switch Pressure Units; Set Preset Pressure; Connect the Hose; Start Inflation Process

16
5.4 Switch measure
Short press U/LED key (see chapter 3, m), to switch between
pressure measure units. The measure conversion formula is
shown below:
1 PSI = 6.89 KPA, 1 BAR = 100 KPA, 1 kg/cm
2
= 98 KPA
5.5 Preset pressure value
Adjust the preset pressure value by using the keys +/- (see
chapter 3, p). Short press to adjust in 0.5PSI steps. Press and
hold the keys +/- (see chapter 3, p), to quickly adjust the
pressure value.
Note: The device automatically switches preset pressure values
according to the selected mode. The internal memory saves
individual adjustmens, though. If the value in a certain mode is
changed, the new value will be saved.

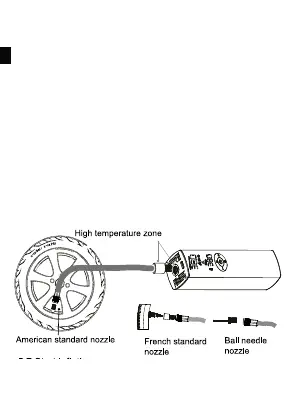

5.6 Hose connection
The hose may be connected to the pump as shown below:
5.7 Start inflation
Short press inflation key (see chapter 3, n), to start inflation.
E
