Power connections
4

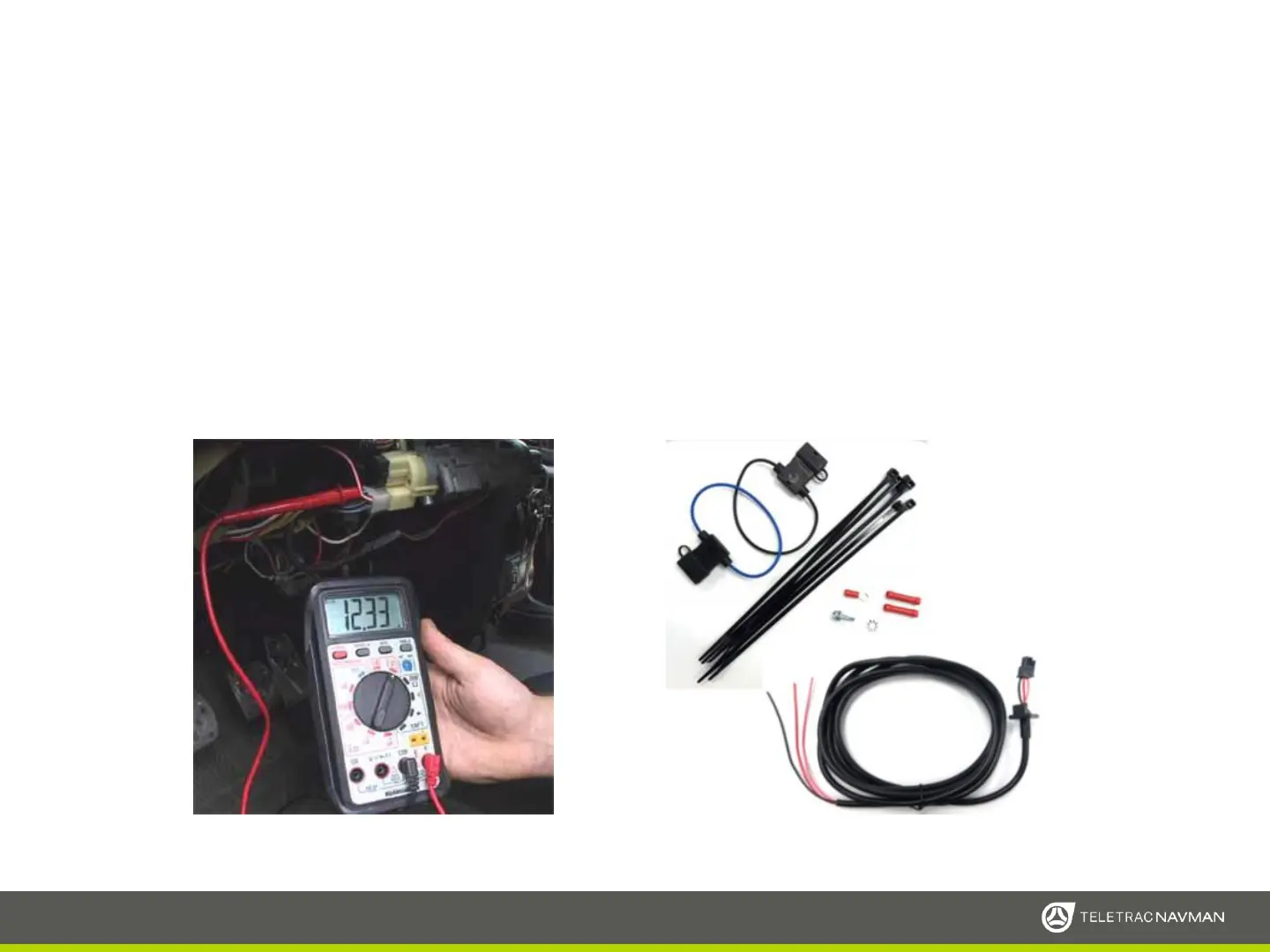

The power connections will be made to a location that is appropriate to the vehicle being installed,
this may be the key switch, terminal block at fuse box, or other location deemed appropriate. A
digital multi-meter should always be used to confirm connections.
The Qube300 needs 3 connections for power:
• Red – Constant – has power at all times regardless of key position
• Pink – Ignition – must be connected to a true ignition source that provides power when the key
is in the On position and while vehicle is cranking
• Black – ground – you will use the provided ring terminal, screw, and star washer to make this
connection to a good metal location under the dash
*Scotch locs and T-Taps are never recommended*
