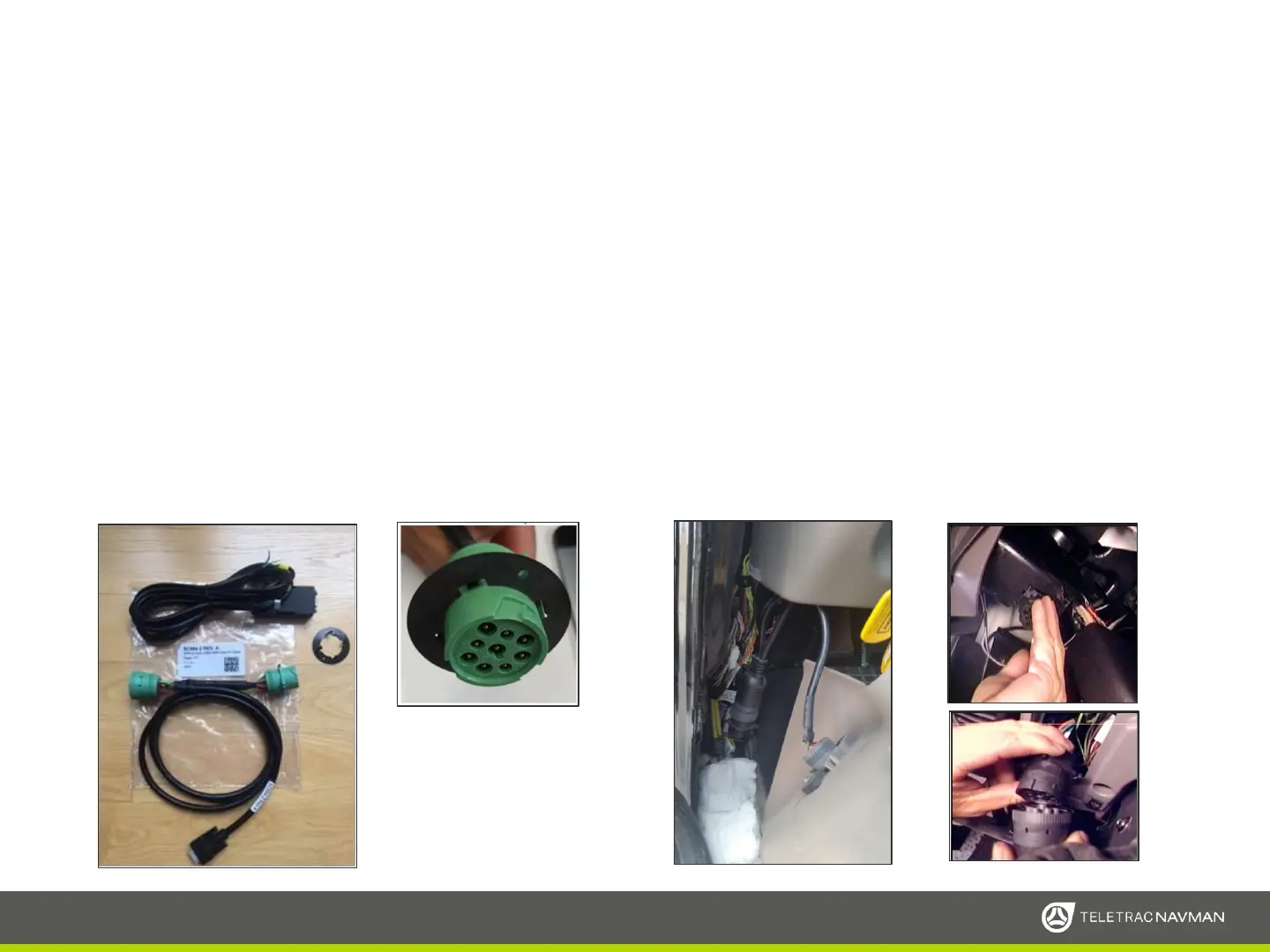

Vehicle Diagnostics Interface
8
Vehicle diagnostics will be interfaced using one of the available cables. The cable will be installed to the
factory diagnostics connector. The Mack and Volvo specific cables will be installed using the proper
method for those cables.
1. Locate the diagnostic connector (usually found under the driver side of the dash) and determine whether it is a 6 or 9 pin.
2. Run the JPOD2 from the dash to the Qube 300.
3. Disconnect the factory diagnostic connector from the dash.
4. Replace the factory male connector with JPOD2 6 or 9 pin male deutch connector dongle.
5. Connect the factory male connector to the Vehicle’s Management female connector.
6. Connect the Vehicle Management Cable to the Main Cable’s red connector. Tighten the barrel connector and wrap the
connection in electrical tape.
7. Secure the JPOD2 with zip ties
Ring adaptor for
Kenworth and
Peterbilt
