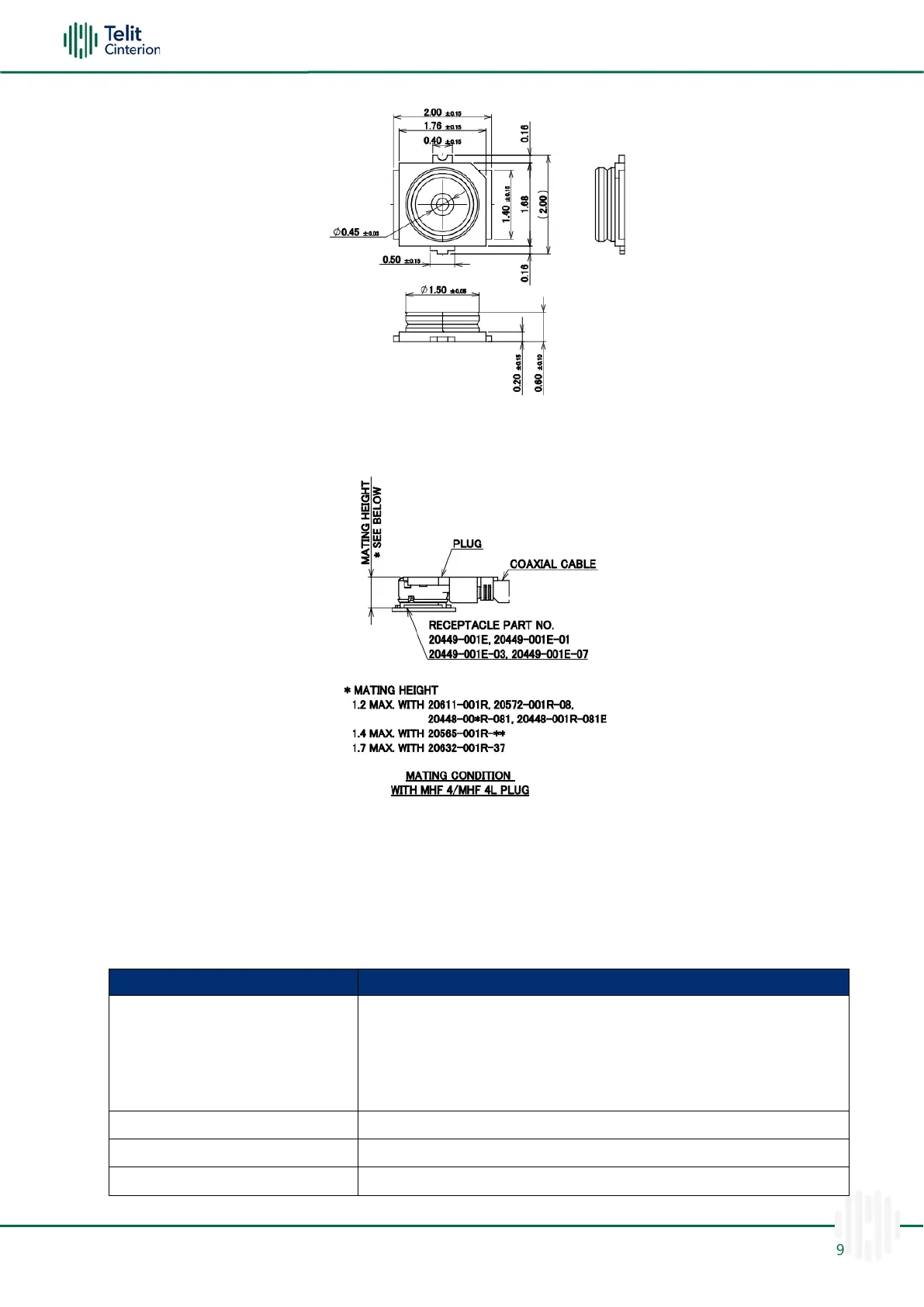

Figure 20: MHF-4 RF connector
Figure 21: MHF-4 Receptacle
8.3 Antenna Requirements
Antennas for FN990 Family modules must meet the requirements listed in the table below.
WCDMA/LTE/5G Sub-6 Antenna Requirements
Table 43: WCDMA / LTE / 5G Sub-6 Antenna Requirements
Item
Value
Frequency range
Depending on the frequency band(s) provided by the network
operator, the customer must use the most suitable antenna for
that/those band(s).
The bands supported by the FN990 Family are provided in Section 2.2
Frequency Bands and CA / EN-DC Combinations
Impedance
50 Ohm
Input power
> 24 dBm average power in WCDMA & LTE & 5G Sub-6
VSWR absolute max
<= 10:1
